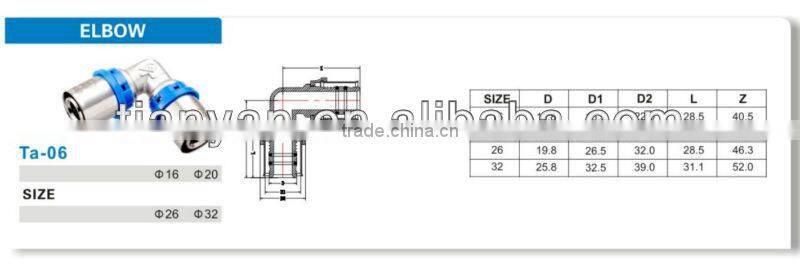

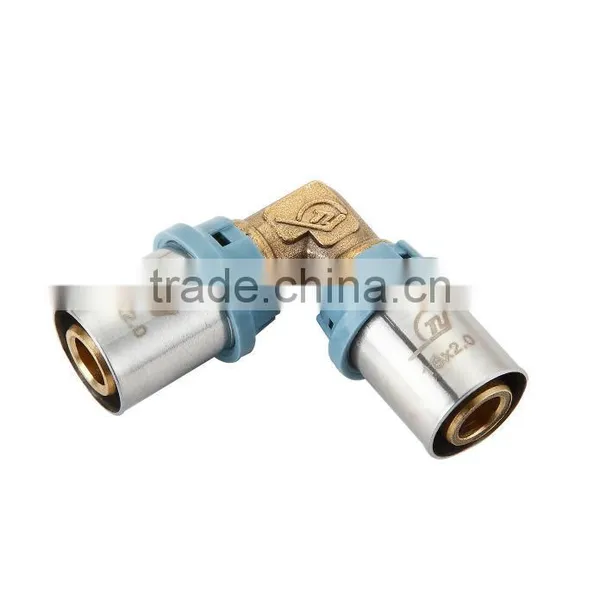

DZR BRASS ELBOW

Specifications

BRASS COMPRESSION FITTINGS FOR PEX PIPE

Features:

1. Brass materials: 57-3,CW617N ,CW614N

2,Stainless steel : AISI304

Thickness stainless steel rings
-Diameter 16……………0,8mm (±0,1)
-Diameter 18……………0,8mm (±0,1)
-Diameter 20……………0,9mm (±0,1)
-Diameter 25……………0,9mm (±0,1)
-Diameter 32……………0,9mm (±0,1)
-Diameter 40……………1,0mm (±0,1)
-Diameter 50……………1,0mm (±0,1)
-Diameter 63……………1,2mm (±0,1)

3,O-ring : Quality EPDM SHORE A70 +/-5 BLACK as norm EN 681.1 Compression Set 22h 150ºC  Test Method ASTM D 395 B

Thickness of the rubber joints:

-Diameter 16……………1,55mm (+0,05mm,-0,05mm)
-Diameter 18……………1,55mm (+0,05mm,-0,05mm)
-Diameter 20……………1,55mm (+0,05mm,-0,05mm)
-Diameter 25……………2,05mm (+0,05mm,-0,05mm)
-Diameter 32……………2,05mm (+0,05mm,-0,05mm)
-Diameter 40……………2,0mm (+0,05mm,-0,05mm)
-Diameter 50……………2,0mm (+0,05mm,-0,05mm)
-Diameter 63……………2,2mm (+0,05mm,-0,05mm)

4. Plastic ring :HDPE, red ,green, blue,grey ,clear.

5,Working Temperature: -20°c~110°c

6. Working Pressure: 1.6MPa

7. Size: DN16*1/2" to DN32*1" different size

8. Suitable medium: water, gas,oil

9. Surface treatment: Nickel plated or Brass

10. OEM service is acceptable
