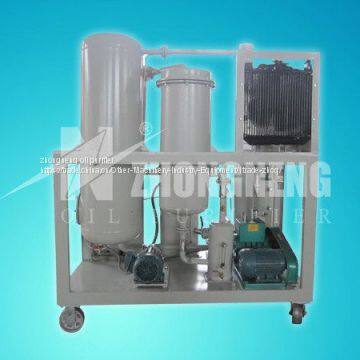

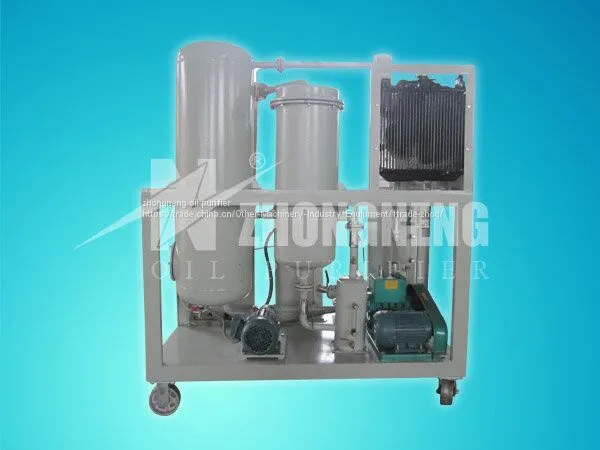

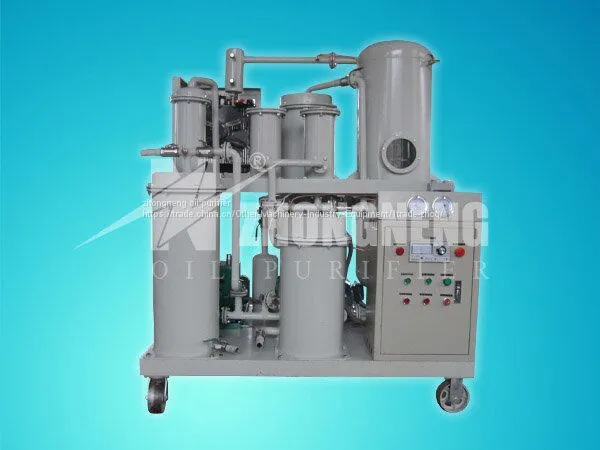

Oil Purification Machine

Application

Model TYA oil purification plant can fast degas, dewater, and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, flash point and improves the oil capability. Guaranteed the hydraulic system, dynamic system and lubricating system running normally. The machine is suit for many lines, such as transportation，mine, metallurgy, electric power, manufactures and so on.. Regenerate the used diesel oil, hydraulic oil, lubricating oil, coolant oil, machine oil and so on.

1. With the strong ability to filter the impurity, which can filter the particles completely.

2. It has the back flush system, which can clear impurities automatically.

3. Advanced dielectric condensation device

4. This machine installs the new pressure protector, which can control the temperature automatically; also it can drain water on line by the water–separator device. So it is easy to control this machine.

5. We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.

6. The unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.

1. Working Principle

When it starts working, the used oil will be poured into the heater to heat under the vacuum pressure, then the heated oil enter into the primary filter which will eliminate the big impurities, then the oil enter into the vacuum separator, the oil will flow the special radiation device, which make the unit/volume oil to produce a large surface area, lets the pollution oil exposure in the low humidity atmosphere, thus the water, air and gas can be eliminated. The treated vapor and gas form the gaseous mixture becomes the liquid through the water tank and the chiller condensation, then the liquid enters water receiver together, the vacuum extracts the surplus gas.

The oil which is drained away water flow into precision strainer where can exhaust particulates (oil purification). According the quantity of the water content, a whole purification needs many times circulation to drain away the water.
