Help CenterCooling Pad Brown With Black Single Coated Color
Related Products
-
Evaporative Cooling PadUS$ 60 - 70MOQ: 1 Cubic Meter -
Evaporative Cooling Pad Brown and Green ColorUS$ 60 - 70MOQ: 1 Cubic Meter
-
Greenhouse Cooling Pad SystemUS$ 60 - 70MOQ: 1 Cubic Meter
-
Poultry Farm Cooling System With Air InletUS$ 60 - 70MOQ: 1 Cubic Meter
-
Air Cooler Cell PadUS$ 60 - 70MOQ: 1 Cubic Meter
1. Made of corrugated fiber paper with the spatial crossing linking technology: high absorbability, high water resistant and anti-mildew, anti corrosive, high strength with long service life.
2. High hygroscopicity: to absorb water naturally, with fast speed of pervasion and lasting effectiveness. Water drops can diffuse within 4-5 seconds. The natural absorption height is 60-70mm/5 minutes, as 200mm/1.5 hours, reaching the international standard.
3. Specific stereoscopic structure: large evaporation area, and cooling efficiency can be as high as 80%.
4. Low consumption: Compared with the traditional air-condition, its electric consumption is only 1/10.
5. No phenol in the raw material, which is irritant to skin: safe, energy saving, environmental protective, economic and durable.
6. Frame Material: galvanized, aluminum alloy or stainless steel can be chosen, and the dimensions can be customized according to customer’s requirements.

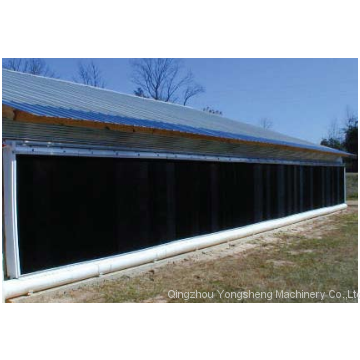

7. Various colors for your selection: Brown, Green, Green and Brown, Black coated-single side,Green coated-single side,Yellow coated-single side.
8. Strict production as per standard, width of 600mm cooling pad involves84-85 sheets; raw material adopt imported Kraft paper(95GSM, thickness:0.18-0.20mm, tension resistance at 70N, absorbability height as 45mm/10min, moisture at 5-8%, humidity at 18N).
Cooling pad parameters
Model |
Height (mm) |
Width (mm) |
Thickness (mm) |
Corrugation Height (mm) |
Corrugation Angle |
7090 |
1000~2000 |
600 |
100, 150, 200 |
7 |
45 º ×45 º |
5090 |
1000~2000 |
600 |
100, 150, 200 |
5 |
45 º ×45 º |
Paper pad performance
Paper pad thickness |
Air speed m/s |
0.60 |
0.80 |
1.00 |
1.20 |
1.40 |
1.60 |
1.80 |
2.00 |
100mm |
Pressure drop Pa |
7.0 |
8.0 |
11.0 |
16.0 |
20.0 |
24.0 |
28.0 |
35.0 |
Efficiency % |
82.0 |
80.0 |
78.3 |
76.5 |
74.9 |
73.3 |
72.0 |
70.8 |
|
150mm |
Pressure drop Pa |
10.0 |
13.0 |
18.0 |
23.0 |
30.0 |
38.0 |
45.0 |
54.4 |
Efficiency % |
92.5 |
91.3 |
90.0 |
88.7 |
87.5 |
86.5 |
85.4 |
84.5 |
