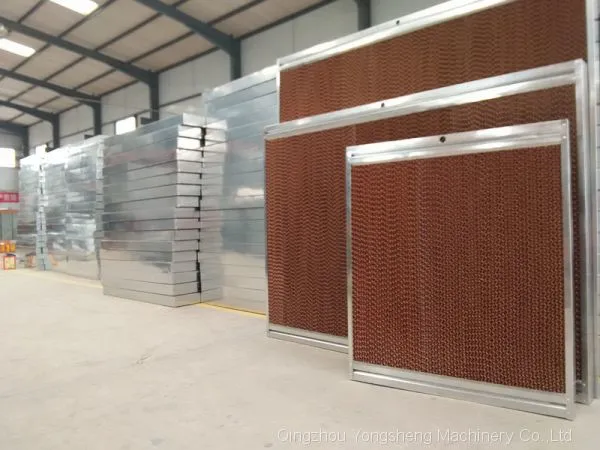

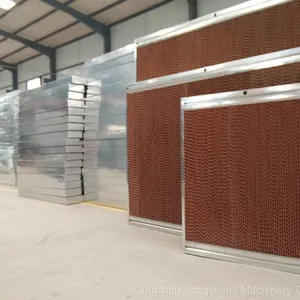

Cooling Pad System With Frame

1. Made of corrugated fiber paper with the spatial crossing linking technology: high absorbability, high water resistant and anti-mildew, anti corrosive, high strength with long service life.

2. High hygroscopicity: to absorb water naturally, with fast speed of pervasion and lasting effectiveness. Water drops can diffuse within 4-5 seconds. The natural absorption height is 60-70mm/5 minutes, as 200mm/1.5 hours, reaching the international standard.

3. Specific stereoscopic structure: large evaporation area, and cooling efficiency can be as high as 80%.

4. Low consumption: Compared with the traditional air-condition, its electric consumption is only 1/10.

5. No phenol in the raw material, which is irritant to skin: safe, energy saving, environmental protective, economic and durable.

6. Frame Material: galvanized, aluminum alloy or stainless steel can be chosen,  and the dimensions can be customized according to customer’s requirements.

7. Various colors for your selection: Brown, Green, Green and Brown, Black coated-single side,Green coated-single side,Yellow coated-single side.

8. Strict production as per standard, width of 600mm cooling pad involves84-85 sheets; raw material adopt imported Kraft paper(95GSM, thickness:0.18-0.20mm, tension resistance at 70N, absorbability height as 45mm/10min, moisture at 5-8%, humidity at 18N).

Cooling pad parameters

Paper pad performance
