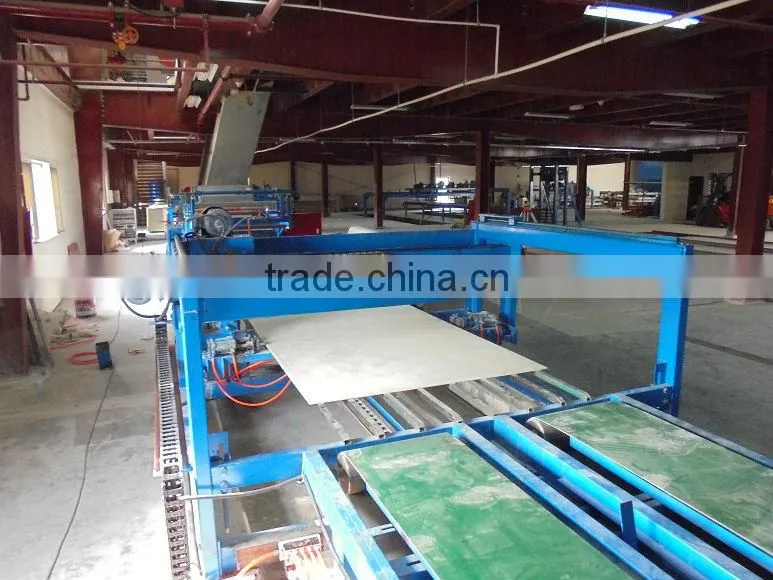

Help CenterChina Yuanteng Automatic Magnesium Oxide Board Making Machine
Related Products
-
High Automatic Glass Magnesium Board Production LineUS$ 160,000 - 1,500,000MOQ: 1 Set -
High Automatic Mgo Board Making Plant With Small Capacity 2000 Pcs per DayUS$ 96,000 - 380,000MOQ: 1 Set
-
High Automatic Glass Magnesium Board Making Machine With Large Annual CapacityUS$ 96,000 - 320,000MOQ: 1 Set
-
High Automatic Glass Magnesium Board Production Line Obtain ISO90001:2000US$ 150,000 - 500,000MOQ: 1 Set
-
High Demand Mgo Wall Board Making MachineUS$ 150,000 - 1,499,999MOQ: 1 Set
Specifications
1.high automatic2.lower energy consumption
3.high output and multifunctional
4.for more than10years of technical experience
magnesium board production line with annual capacity from 1million to 15million square meter per year.
Board-making Machine:
Required Raw Material |
Glass Magnesium Board is made of filling materials, such as sawdust or all kinds of crushed plant straw (you can select any one kind ) and several chemical raw materials which are token as modified material after special technology. |
Technical Index for finished board |
1. Oxygenic index%: 90 2. Level combustion: SO 3. Vertical combustion: SO 4. Water content rate: 10.9% 5. Capacity: 1.15g/cm3 6. Static bending intensity: 169.46Mpa 7. Density: T/ m3 1.13 8. Water resistance: Without chalking for 24 hours and there is no change on surface 9. No Three-wastes (waste water, waste gas and waste residue), no pollution and environmental protection. |
Structure Principle for Machine |
Magnesium Oxide Board Machine with fashionable design, reasonable structure, stable running manufactured board of even thickness in large production once through double- roller-extruding technology. This production line is equipped with shaking device which remove inside and outside air bubble, so our board is more compact. In addition, we use the no-woven cloth as the separating film to increase the toughness and strength of the board. The machine can be adjusted arbitrarily, and then produce the board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. |
Main equipment list:
Item |
Equipment name |
Dosage control system |
Automatic batch turning system Microcomputer control system Dust collection system Elevating conveying system Automatic measure system Shell fabric mixing system Middle material mixing system Pulp stock mixing system Accessories dressing by screen system Blending agent dessolving system Blending agen dessolving and automatic measurement system |
Forming system |
Vaccum compressed air control system Automatic mould system Forming conveying system Rolling forming system Automatic cutting board system Automatic collecting board twinlift system Computer touching control system Speedup rod road Loading vehicle changing tracksystem |
Curing system |
Constant temperature system in curing room Curing room automatic humidity controlled system Automatic stripping system Automatic stacking board system Forklift |
Arranging board system |
Rod road conveying system Horizontal and perpendcular high speed cutting machine Landscape orientation conveyor Sanding machine Dust colletion system Microcomputer self-control system Power distributing system |
Production plan and major technology
1) production plan
Magnesium fireproofing board comply with national standard FM-BJC688
Specification:
Thickness: 2-24mm
Width:1200mm-1220mm
Length:2400mm-3000mm
Type: currently magnesium fireproofing board, sanding and refining fireproofing board
2) Major technology
Material: decided according to the situation of buyer
Manufacturing course: (1 ) complete automatic type
(2) semi-automatic type
More information contact me without hesitate
