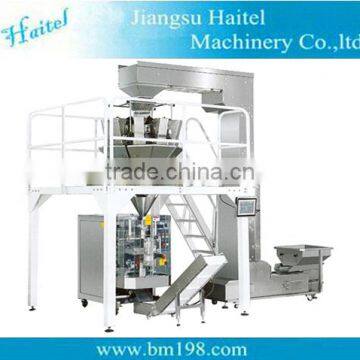

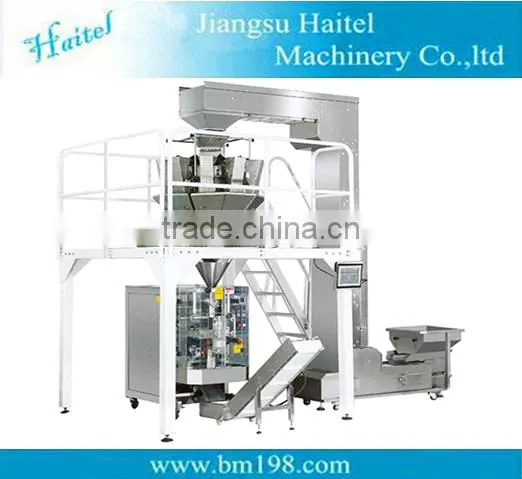

Large Vertical Form-fill-seal Machine
With Multihead Weigher
Characteristic:
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
7. Close down type mechanism , defending powder into inside of machine.
Application:
Suitable for packing of various of granule, slice , stripe , such as potato chips , shrimp chip, jelly, peanut. Etc . Packing with in 3000ml .
Main technical:
Model |
HTL-V520 |
Bag length |
80-400mm(L) |
Bag width |
80-250mm(W) |
Max width of roll film |
520mm |
Packing speed |
5-50bags/min |
Measuring range |
3000ml(Max) |
Air consumption |
0.65Mpa |
Gas consumption |
0.4m³/min |
Power voltage |
220VAC/50HZ |
Power |
4Kw |
Dimension(L*W*L) |
1150×1795×1650mm |
Deadwight of machine |
600KG |
It's our great honor to cooperate with you and offer our best service!!
Ξwelcome to visit our factory Ξ
As a Sino-US company, Haitel Machinery Co,. Ltd. is a professional manufacturer of automatic food processing and packing machinery for manufacturers making candy, chocolate, egg-rolls, cakes and other food. Specializing in confectionery processing equipment, Haitel has a professional team with strong techincal and R&D knowledge to develop advanced food equipments to cope with market changes.
Haitel Industrial Zone & Office
Large Scale Workshop & Sophisticated Equipment
Certificates
Our products have been exported to over 80 countries worldwide
Cooperation & Partners
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1,When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2,In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the Buyer receipt the machines, free warrant for 12 months.
Welcome to contact us for more information and establish long-term business relationship!
