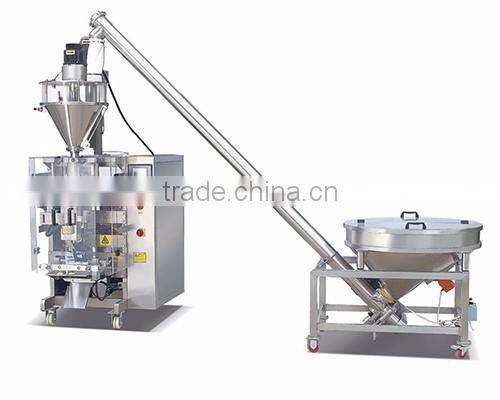

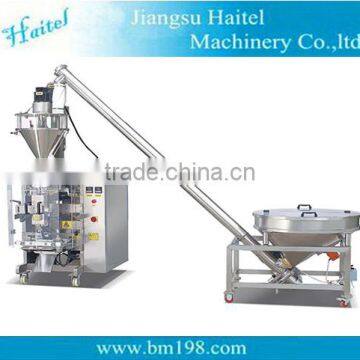

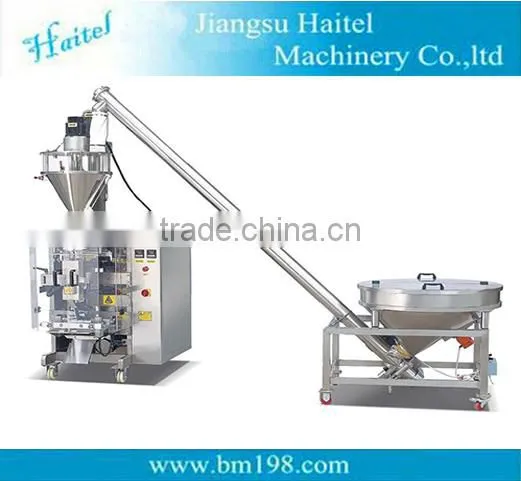

Fully Automatic Power Packing Machine
Characteristics
1.Film drawing down system controlled by servo motor.
2.Automatic film rectifying deviation function.
3.Various alarm system to reduce waete.
4.It can complete feeding ,measuring ,filling ,sealing ,date printing.Charging (exhausting), counting ,finished product delivery when it equips with feeding and measuring equipment.
5.The way of bag making : the machien can make pilow-type bag and standing-bevel bag, punch bag or according ti costomer's requirements.
Main techinical parameters
| Model | HTL-D420 | HTL-D520 |
| Capacity | 30 bags/min,it is according to quality of wrapping and suppled | |
| Accuracy | ≤1.5g % | |
| Bag sixe | (L)80-300mm;(W):80-180mm | (L)80-350mm;(W):100-250mm |
| Filling range | 50-1000ml | 150-2000ml |
| Film thickness | 0.04-0.09mm | |
| Package material | BOPP/CPP,PET/AL/PE Thermal composite material,Like BOPP/CPP | |
| Air consumption | 0.8 Mpa 0.4 m³/min | |
| Total power | 5 kw | |
| Voltage | Four wire three phase 380V/50Hz | |
| Air compressor | Not less than 1 CBM | |
| Total height | 2.528 m | |
| Gross weight | 900 kg | |
It's our great honor to cooperate with you and offer our best service!!
Ξwelcome to visit our factory Ξ
As a Sino-US company, Haitel Machinery Co,. Ltd. is a professional manufacturer of automatic food processing and packing machinery for manufacturers making candy, chocolate, egg-rolls, cakes and other food. Specializing in confectionery processing equipment, Haitel has a professional team with strong techincal and R&D knowledge to develop advanced food equipments to cope with market changes.
Haitel Industrial Zone & Office
Large Scale Workshop & Sophisticated Equipment
Certificates
Our products have been exported to over 80 countries worldwide
Cooperation & Partners
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1,When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2,In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the Buyer receipt the machines, free warrant for 12 months.
Welcome to contact us for more information and establish long-term business relationship!
