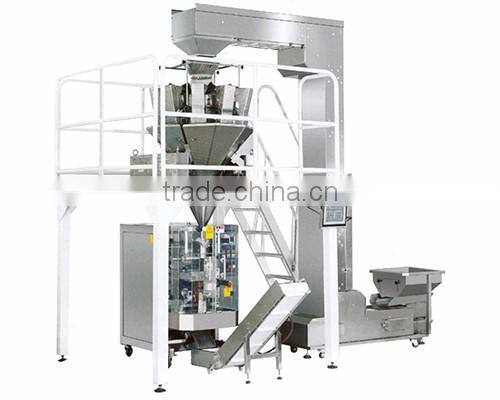

Fully Automatic Vertical Packing Machine With Scale
Characteristics
1.Touch sreen with stable transmitting PLC control to perform bag making ,weighting ,filling ,sealing ,code printing and cutting automatically.
2.Independent compressed air control and elecrtical wire system control separately, low noise in running ,stable positioning.
3.Vacuum belt pulling system to feed film and make bags with system control separately ,low noise in running ,stable performance.
4.Double servo control system ,precise positioning.
5.Easy to place thr rewind rolls onto the machine.
6.Set up and adjust parameters design to prevent dust contamination.
7.Sealed structure desigh to prevent dust contamination.
8.Multi computerized weighing heads to deliver correct weight.
Application
The bagging machine is widely used for packing of products in shape of granules ,stripes ,slices such as candy ,potato chips ,jelly and peanuts.
Main technical parameters
| Model | HTL-V420 | HTL-V520 | HTL-V680 |
| Bag length(mm) | 80-300(L) | 80-400(L) | 100-480(L) |
| Bag width(mm) | 50-200(W) | 80-250(W) | 180-320(W) |
| Max. width of roll film(mm) | 420 | 520 | 680 |
| Packing speed (bags/min) | 5-60 | 5-50 | 5-50 |
| Volume range(ml) | 150-1200 | 3000(Max) | 6000(Max) |
| Air Consumption(Mpa) | 0.65 | 0.65 | 0.65 |
| Gas Consumption(m³/min) | 0.3 | 0.4 | 0.4 |
| Voltage(V) | 220V | 220VAC/50Hz | 220VAC/50Hz |
| POwer(kw) | 2.2 | 4 | 5 |
| Dimension(L*W*H)mm | 1320*950*1360 | 1150*1795*1650 | 1780*1350*1950 |
| Weight(kg) | 540 | 600 | 900 |
It's our great honor to cooperate with you and offer our best service!!
Ξwelcome to visit our factory Ξ
As a Sino-US company, Haitel Machinery Co,. Ltd. is a professional manufacturer of automatic food processing and packing machinery for manufacturers making candy, chocolate, egg-rolls, cakes and other food. Specializing in confectionery processing equipment, Haitel has a professional team with strong techincal and R&D knowledge to develop advanced food equipments to cope with market changes.
Haitel Industrial Zone & Office
Large Scale Workshop & Sophisticated Equipment
Certificates
Our products have been exported to over 80 countries worldwide
Cooperation & Partners
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1,When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2,In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the Buyer receipt the machines, free warrant for 12 months.
Welcome to contact us for more information and establish long-term business relationship!
