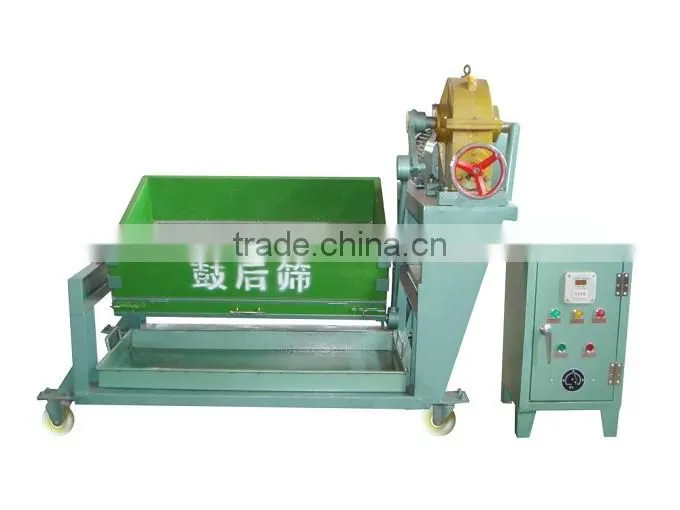

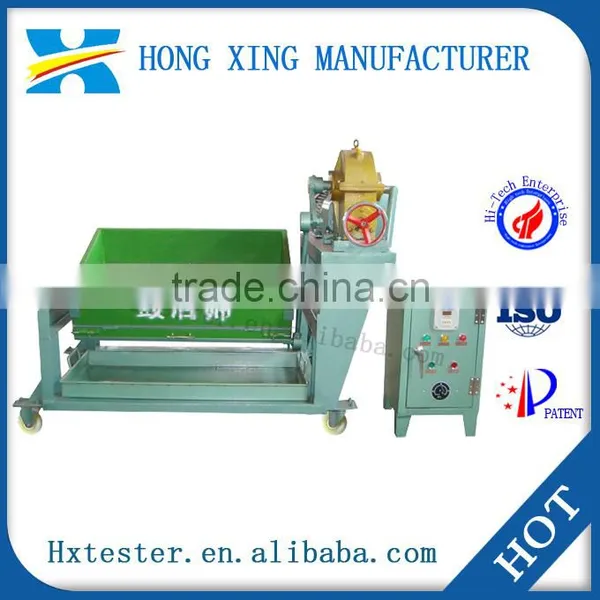

Electric sieve vibrator swing screen, after ISO trumbler sieve shaker
Introduction
This screen used as after revolving drum, can replace manual operation, greatly reduce the labor intensity, and improve work efficiency, is the sort of sintered pellets test instrument.
HXSK-5 Type Sway screener after ISO trumbler
Specification |
800×500mm |
aperture size |
HXSK-5:5×5mm, HXSK-6:6.3x6.3mm |
swing time |
20times/min |
Max swing angle |
45° |
Electrical power |
1.5kw |
Sifting time |
1.5min(adjustable, digital display, automatic stop) |
Power supply |
380V |
This equipment is mobile (also can be fixable, decided by the users), 4 pulleys are equipped under the machine, it can be driven by people, it is flexible and mobile, easy to use, when discharge, only to open the wooden casing, shake the handle, you can discharge the material on the receiving plate.
Sieve control is to use automatic timing controller to control, to set the time, the screen will automatically stop.
Similar Products
|
|
|
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
