Fully automatic drop testing equipment, lab equipment prices for sinter ore
Features

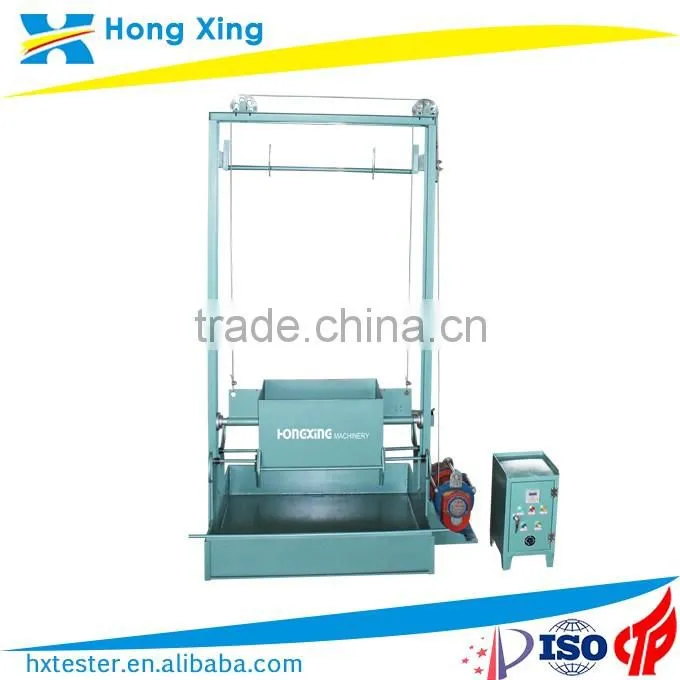

The shatter index tester consists of testing platform framework, automatic translation device, landing loading framework, automatic turning device, upper loading framework and automatic material discharge device etc, the whole machine is under mechanical and electrical integration control with the advantages of compact structure, high reasonableness, high degree of integration, small size, sealing and environmental protection etc
Equipment model |
HX-8 |
| Sample weight | 65 kg |
| Test height | 2.0m |
| Reducer | WD-122 |
| Velocity Ratio | 1:50 |
| Motor power | 0.75 KW |
| Dimension | 1261×1500×4400mm |
| Equipment weight | 2000 KG |
The quality of sinter has tremendous impact on the effects of furnace smelting and various techno-economic indicators of furnace, so the quality requirements and test items for sinter are not limited to chemical composition, size composition etc,
also including reduction degradation index under low-tempera
-ture,deoxidation intensity under medium-temperature and reductiveness under medium and high temperature etc, provide comprehensive performance parameters of raw materials for the furnace operation and promote technological level through testing these performances. As the one of indicator to evaluate the quality of sinter, the shatter strength has indispensable importance for the testing, therefore the Falling strength tester is also welcomed by a vast numbers of users.
The shatter strength tester is applied to measure and test the shatter strength of sample of sinter, being another evaluation of strength of sinter under room temperature, used to measure the ability of anti-impact of sinter. It is to lift the sample a certain weight to a certain height, and let the sample fall onto the steel plate freely, any person will not be arranged during the falling of the sinter, from the rising, falling, to going out, the sample undergoes a automated processing without any letup, after many repeated falling, measure the volume of powder after impact.
Similar Products
|
|
|
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage

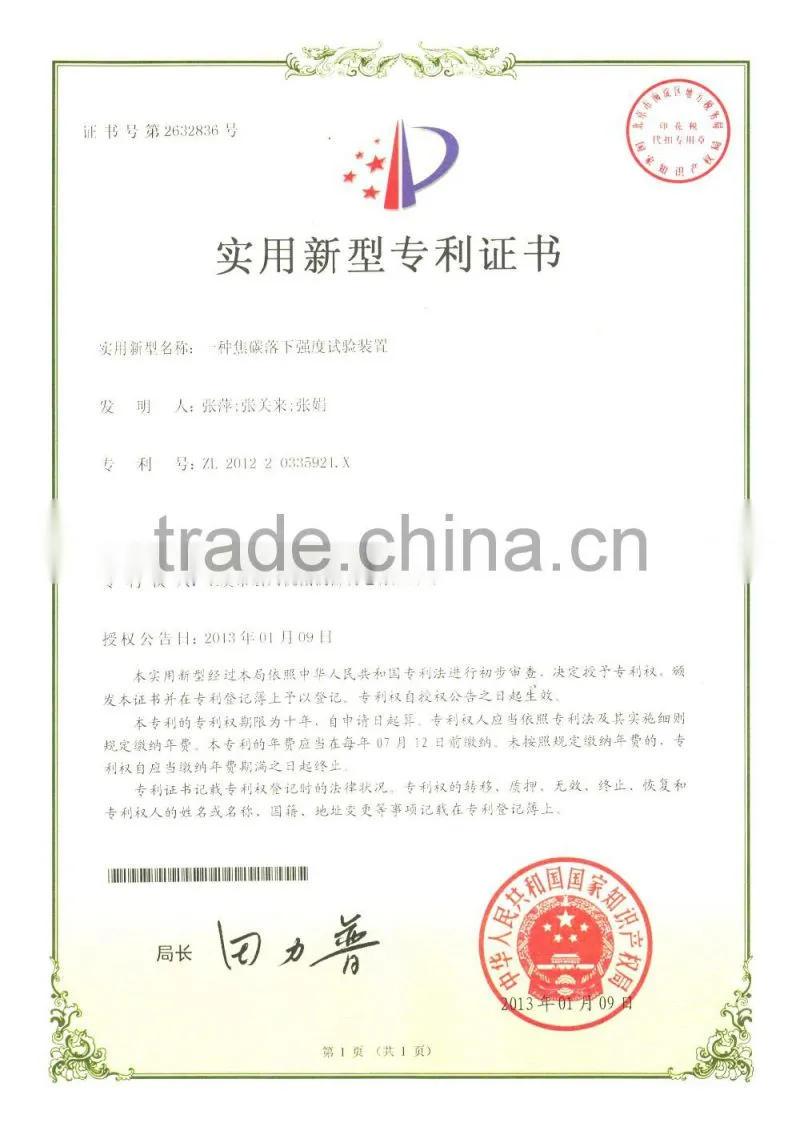

The product has obtained national patent (patent number: ZL201220335921X;).
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
