Electric Belt Driven Compressor BVI30E30H55

Electric Belt Driven Compressor BVI30E30H55 thumbnail-1
Electric Belt Driven Compressor BVI30E30H55 thumbnail-2
Electric Belt Driven Compressor BVI30E30H55 thumbnail-3
Electric Belt Driven Compressor BVI30E30H55 thumbnail-4
Electric Belt Driven Compressor BVI30E30H55 thumbnail-5
Electric Belt Driven Compressor BVI30E30H55 thumbnail-6
Electric Belt Driven Compressor BVI30E30H55 photo-1
Electric Belt Driven Compressor BVI30E30H55 photo-2
Electric Belt Driven Compressor BVI30E30H55 photo-3
Electric Belt Driven Compressor BVI30E30H55 photo-4
Electric Belt Driven Compressor BVI30E30H55 photo-5

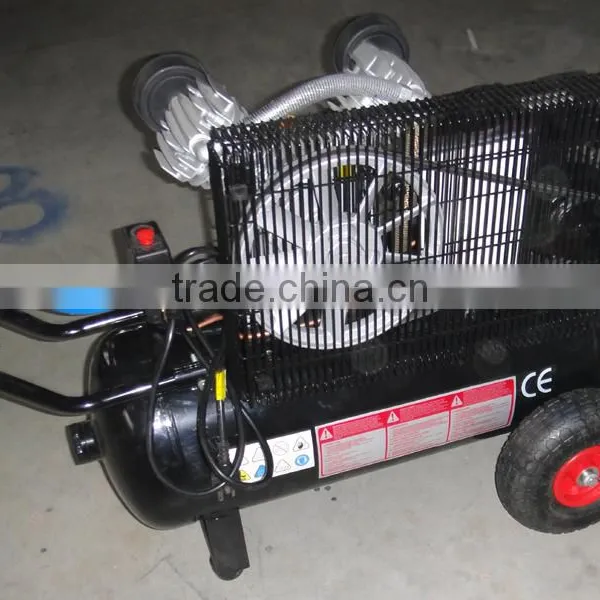

Electric Belt Driven Compressor BVI30E30H55 photo-6
Negotiable MOQ: 50 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Contact Supplier Request Quote Chat Now
Hutz Auto & Air Nanjing Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Piston
Configuration Portable
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Jiangsu, China
Brand Name Will Pro
Model Number BVI30E30H55
Voltage /
Weight 88 kg
Warranty 1 Year
After-sales Service Provided No overseas service provided

Belt Driven Air Comppressor - Electric Driven - "V" type



visit for more information

visit /v-type-belt-drive-compressor.html for more information

contact sales(at) for more information



Model BVI20RE20H60 BVI25RTE20H25
Air pump BVI20R BVI25RT
Motor 2.0hp 230v 50hz 1ph 2.0hp 230v 50hz 1ph
Tank 60 lit  25 lit
Wheel solid x 2 and foot x 2 solid x 2 and foot x 2
Air delivery 170 lit/min 200 lit/min
Revolution 980 rpm 1,050 rpm
Max. pressure 8 bar/ 115 psi 10 bar/ 145 psi
N.W. 63 kg 63 kg

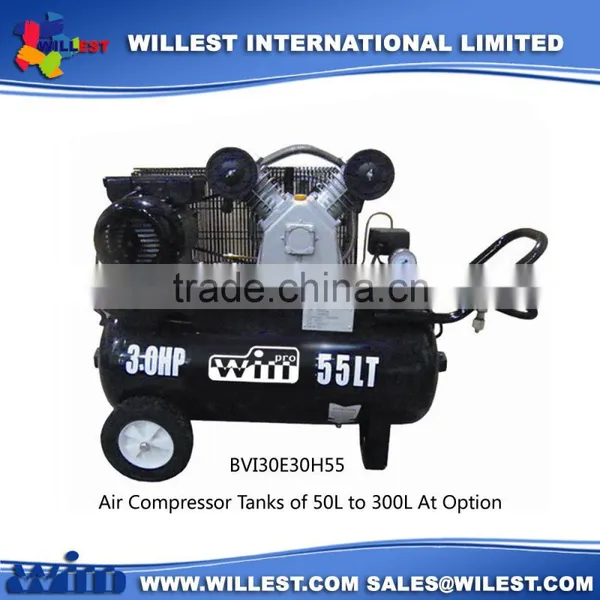

Model BVI30RE30H55 BVI30E30H55 BVI30E30H80
Air pump BVI30R BVI30 BVI30
Motor 3.0hp 50/60hz 1ph 3.0hp 50/60hz 1ph 3.0hp 120v 60hz 1ph
Tank 55 lit 55 lit 80 lit
Wheel pneumatic x 2 and foot x 2 solid x 2 and foot x 2 pneumatic x 2 and foot x 2
Air delivery 250 lit/min 250 lit/min 250 lit/min
Revolution 1,050 rpm 960 rpm 960 rpm
Max. pressure 8 bar/115 psi 8 bar/115 psi 8 bar/115 psi
N.W. 80 kg 88 kg 85 kg



Model BVI30E30H100 BVI30E30H108 BVI30RE30H250
Air pump BVI30 BVI30 BVI30R
Motor 3.0hp 120v 60hz 1ph 3.0hp 50/60hz 1ph 3.0hp 50/60hz 1ph
Tank 100 lit  108 lit horizontal  250 lit
Wheel pneumatic x 2 and foot x 2 pneumatic x 2 and foot x 2 steel x 4
Air delivery 250 lit/min 250 lit/min 250 lit/min
Revolution 960 rpm 960 rpm 1,050 rpm
Max. pressure 8 bar/115 psi 8 bar/115 psi 8 bar/115 psi
N.W. 116 kg 118 kg 215 kg

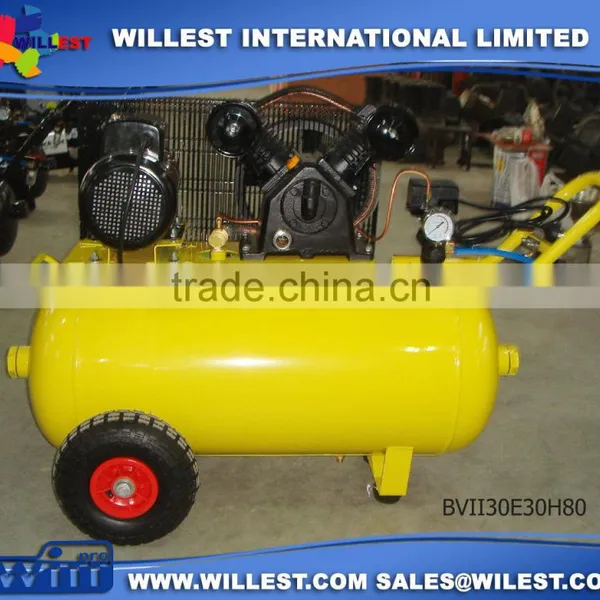

Model BVII30E25H65F BVII30E25H100F BVII30E30H80
Air pump BVII30 BVII30 BVII30
Motor 2.5hp 50/60hz 1ph 2.5hp 50/60hz 1ph 3.0hp 50/60hz 1ph
Tank 65 lit  100 lit  80 lit
Wheel solid x 2 + foot x 2/pallet foot solid x 2 + foot x 2/pallet foot pneumatic x 2 and foot x 2
Air delivery 250 lit/min 250 lit/min 250 lit/min
Revolution 970 rpm 970 rpm 970 rpm
Max. pressure 8 bar/115 psi 8 bar/115 psi 8 bar/115 psi
N.W. 82 kg 110 kg 93 kg

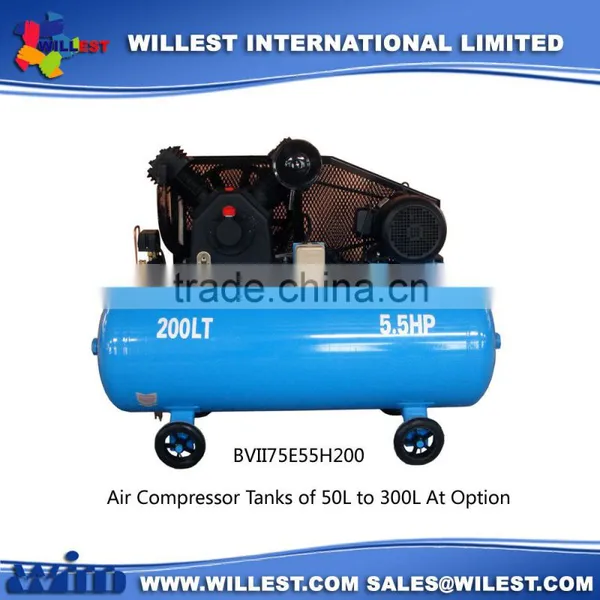

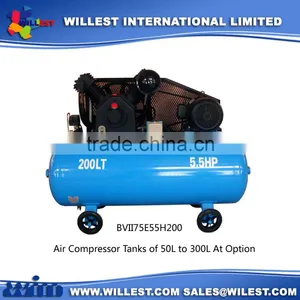

Model BVI55E40H250 BVII75E55H200 BVII75E75H110
Air pump BVI55 BVII75 BVII75
Motor 4.0hp 415v 50hz 3ph 5.5hp 415v 50hz 3ph 7.5hp 240v 60hz 1ph
Tank 250 lit   200 lit  110 lit horizontal
Wheel steel x 4 steel x 4 pallet foot
Air delivery 600 lit/min 530 lit/min 929 lit/min
Revolution 1,000 rpm 950 rpm 1,000 rpm
Max. pressure 8 bar/115 psi 10 bar/145 psi 8 bar/115 psi
N.W. 160 kg 280 kg 245 kg

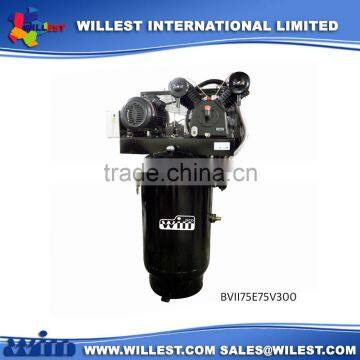

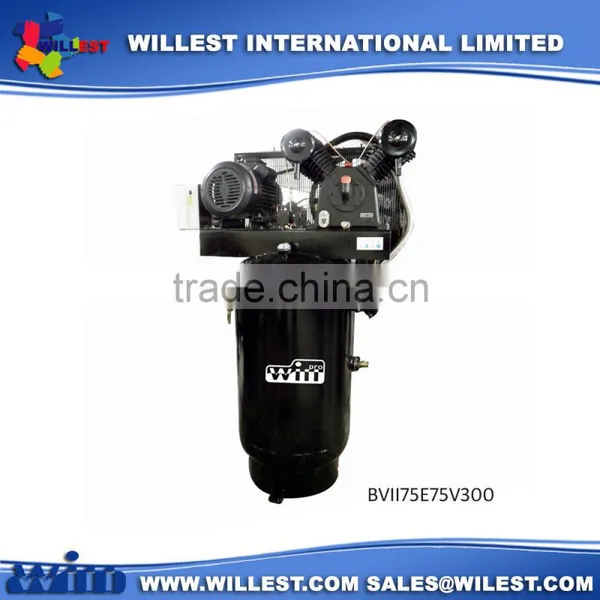

Model BVI20RE20V120 BVI30E30V200 BVII75E75V300
Air pump BVI20R BVI30 BVII75
Motor 2.0hp 120v 60hz 1ph 3.0hp 120v 60hz 1ph 7.5hp 240v 60hz 1ph
Tank 120 lit vertical  200 lit vertical  300 lit vertical
Wheel solid x 2 and foot x 1 solid x 2 and foot x 1 round foot
Air delivery 170 lit/min 250 lit/min 929 lit/min
Revolution 980 rpm 960 rpm 845 rpm
Max. pressure 8 bar/115 psi 8 bar/115 psi 10 bar/145 psi
N.W. 95 kg 220 kg 295 kg
