Home > Products > Welding Materials > specification of blue color welding electrodes AWS E6013 brand
specification of blue color welding electrodes AWS E6013 brand
- 40 Ton / Tons per Month
- XINGANG PORT CHINA
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | TOPS | Model Number: | E6013,E7018,E6010,E6011,E7016 |
Material: | Steel Alloy | Length: | 300mm-450mm | Operating Current: | 40-240 |
Welding Current: | 40-70,50-80,80-120,150-190,180-240 | Operating Temperature: | 2700 | Diameter: | 2.5mm,3.2mm,4.0mm,5.0mm |
Application: | Suitable for welding sheet metal structure made of low-carbon |
Product Description

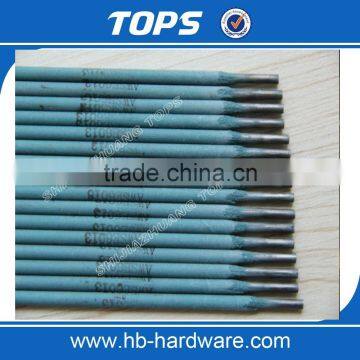

Specification of blue hand welding electrodes AWS E6013
Description:
AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It has excellent welding technological properties . The arc is stable . The spatter is small. The slag viscosity is moderate. It can be used freely . The slag is easy to clean . The welded seam is smooth and fine and easy to restrike the arc.specification of blue color welding electrodes AWS E6013 brand
Application:
Suitable for welding sheet metal structure made of low-carbon steel , such as ships, vehicles, building, and general machinery.
Detail package is following:
WELDING ELECTRODES STANDARD: AWS E6013
Size: 2.5MM X 300MM
Size: 3.2MM X 350MM
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
Chemical Composition of Wire(%):
C | Mn | Si | S | P |
≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
Test Item | σb(MPa) | σc(MPa) | δs(%) | AKV(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | - |
Recommended Welding Current:
Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |

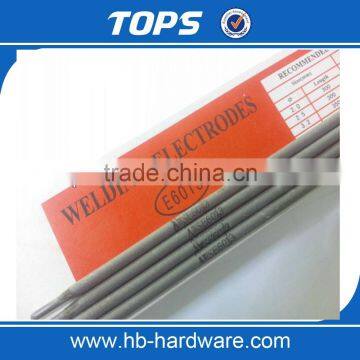

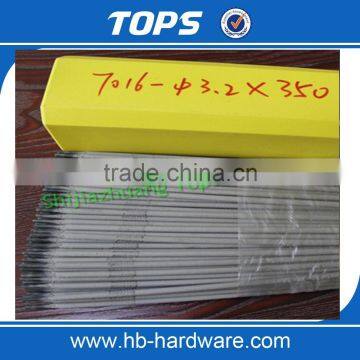

Packing with small packing box:
Packing with big box and pallet:

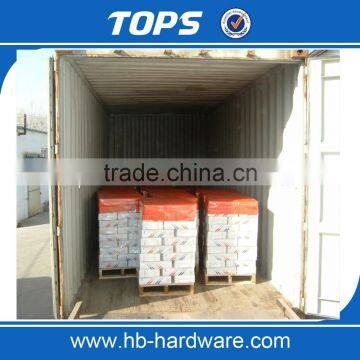

Loading photos in the container:
Why choose our electrodes:
ADVANTAGE
• All-position electrode for the welding of mild steel.
• Excellent choice for sheet metal lap and fillet welds.
• Easy restrike and easy slag removal.
•Manufactured under a quality system certified to ISO 9001 requirements
Welcome you to Contact with me as below:
Contact Us
- Shijiazhuang Tops Hardware Manufacturing Co., Ltd.
- Contact nameKevin Zhao
- Phone0086-311-87871968
- AddressRM.904,JINYUE BUILDING,NANXIAO ST., SHIJIAZHUANG,CHINA Shijiazhuang,Hebei
