2.5mm/3.2mm Welding Electrodes E6013/E7018

Name: 2.5mm/3.2mm Welding Electrodes E6013/E7018
Brand: TOPS
Availability: InStock

FOB Price

US$ 650 - 950 / Metric Ton

5 Metric Tons(Min. Order)

Port Tianjin Port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	TOPS
Model Number	AWS E6013 AWS E7018	Material	Steel Alloy
Length	300mm-500mm	Operating Current	DC AC
Welding Current	50-240A	Operating Temperature	Standard Temperature
Diameter	2.5mm 3.2mm 4.0mm	Application	Low Carbon Steel Structure

Product Description

AWS E6013 Welding Electrodes

Description:

AWS E6013 is a low-carbon steel electrode with a high titaniume coating and canbe used on AC. or DC . It has excellent welding technologicalproperties . The arc is stable . The spatter issmall. The slag viscosity is moderate. It can be used freely . The slag is easy to clean . The welded seam is smooth and fineand easy to restrike the arc.

Application:

Suitable for welding sheet metal structure made of low-carbon steel , such as ships,vehicles, building, and general machinery.

Chemical Composition of Wire (%):

C	Mn	Si	S	P
≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040

Mechanical Properties of Deposited Metal:

Test Item	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	AKV(J)
Guarantee Value	≥330	≥420	≥17	-

Recommended Welding Current:

Electrode Diameter(mm)	2.0	2.5	3.2	4.0	5.0
Current Range(A)	40-70	50-80	80-120	150-190	180-240

AWS E7018 Welding Electrodes

Description:

AWS E7018 is low-hydrogen potassium coating carbon steel welding rod and can be used on AC. or DC . It has excellent welding technological properties. It can be usedvarious composition .Its evident trait is composed of Fe power and can reduce welding layer.

Application:

Suitable for welding important structures made of low alloy steel.

Chemical Composition of Wire(%):

C	Mn	Si	S	P
≤0.12	≤1.6	≤0.75	≤0.035	≤0.040

Mechanical Properties of Deposited Metal:

Test Item	Σb(MPa)	Σc(MPa)	Δs(%)	AKV(J)
Guarantee Value	≥490	≥400	≥22	≥27(-30℃)

Recommended Welding Current:

Electrode Diameter(Mm)	2.0	2.5	3.2	4.0	5.0
Current Range(A)	60-90	90-120	120-150	170-200	210-250

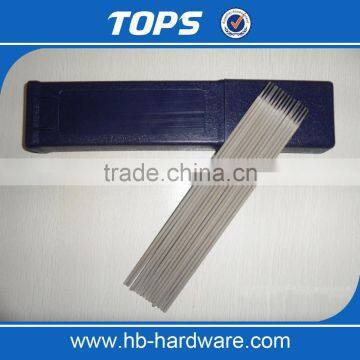

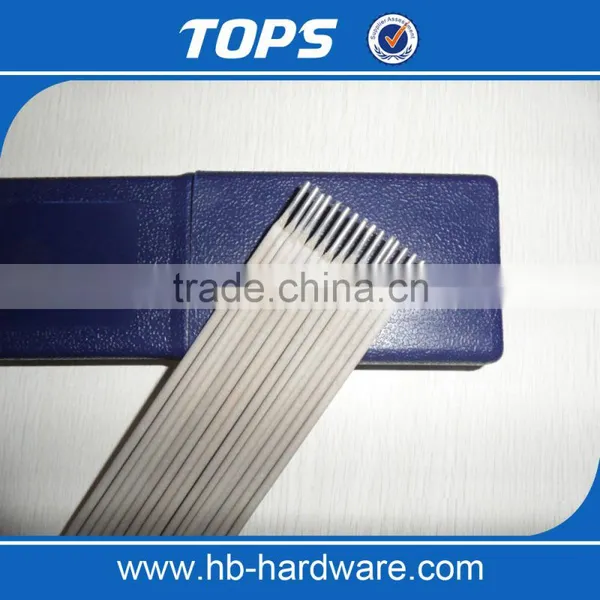

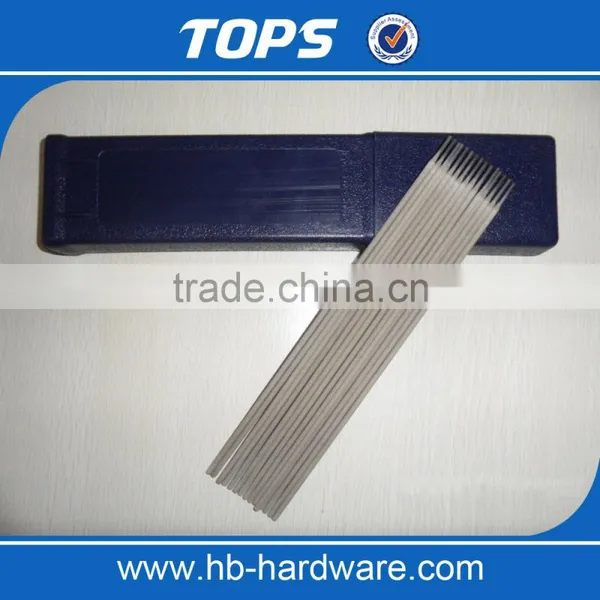

Detailed Images

Packing & Delivery

5kg/box ,4boxes/carbon,50cartons/pallet.
