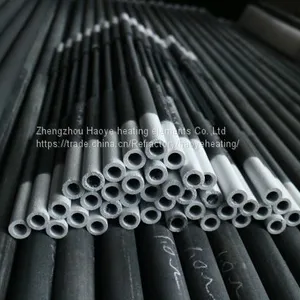

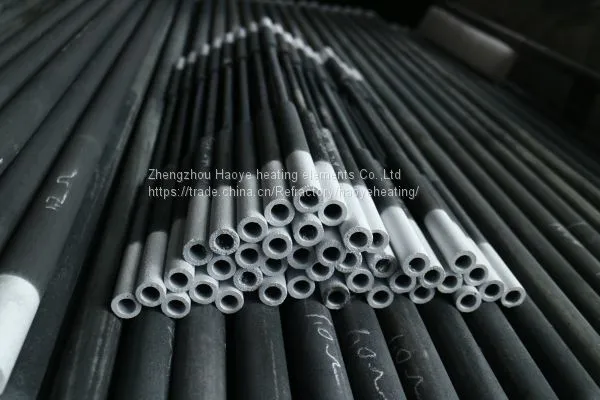

Hao ye SiC heating element is a non-metallic high temperature heating device. These SiC products with high quality green silicon carbide as the main raw material. First, the raw materials are first made into billet, and then high-temperature silicification and recrystallization, and become high-quality rod-shaped SiC electric heating device. Compared with the metal heating material, this non-metallic components with high operating temperature, oxidation resistance, long life, small deformation, easy installation and maintenance features. Because of these advantages, SiC heating elements are widely used in a variety of industries requiring high temperature furnaces and heating devices. These typical applications include electronics, magnetic materials, powder metallurgy, ceramics, glass, metallurgy and machinery.
We use the new cold end of the production process, so Hao industry heating elements with excellent heat resistance and cold junction resistance, energy conservation, long life, to avoid cold junction temperature is too high damage to the furnace.

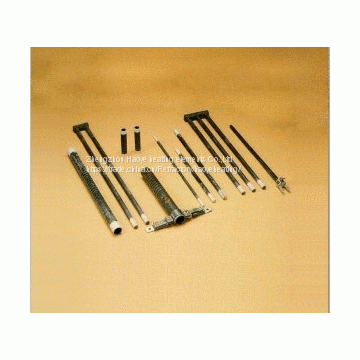

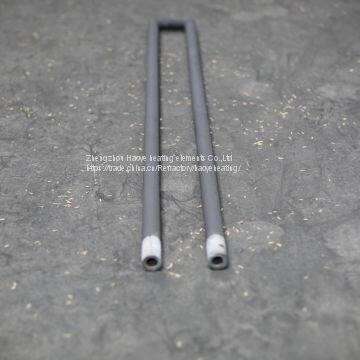

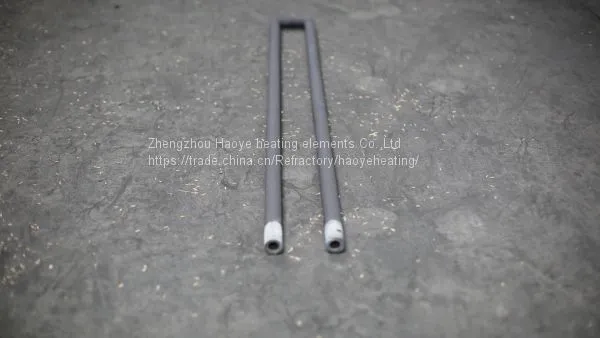

Product specifications: rod type, U type, W type (three phase type), solid rod type, spiral type, 5 type (double hot area). Size can be from Dia12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 31.7mm (1.25 inches), 35mm, 38.1mm (1.5 inches), 40mm, 44.4mm (1.75 inches) to 54mm type. Avoid cold head damage to the furnace overheating. Product specifications: rod type, U type, W type (three phase type), solid rod type, spiral type, 5 type (double hot area). The size can be from Dia12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 31.7mm (1.25 inches), 35mm, 38.1mm (1.5 inches), 40mm, 44.4mm (1.75 inches) to 54mm (2.125 inches). Avoid cold head damage to the furnace overheating. Product specifications: rod type, U type, W type (three phase type), solid rod type, spiral type, 5 type (double hot area). Size can be from Dia12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 31.7mm (1.25 inches), 35mm, 38.1mm (1.5 inches), 40mm, 44.4mm (1.75 inches) to 54mm type.
