Specifications
furnace SiC heating elementstype:U,W,UL,WL,Rod
Dia(mm):3/6,4/9,6/12,9/18,12/24

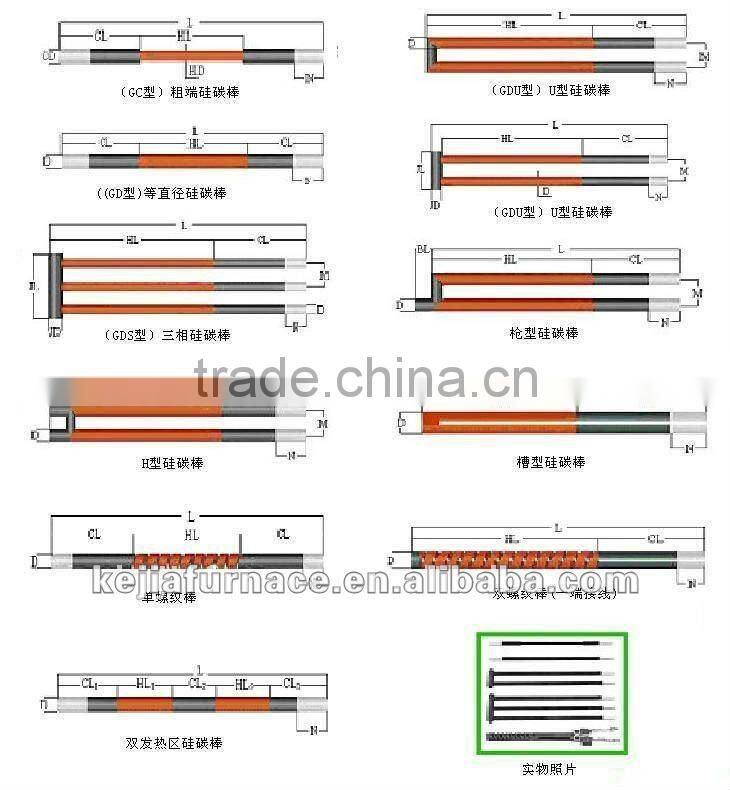

furnace SiC heating elements
U type silicon carbide rod
Protech SiC rode is produced by using the material of high purity silicon carbide and adopting German unique high temperature sintering technology. Now Protech SiC has become the first choice of lots of customers.
SiC heating elements features
1. High heat surface temperature: up to 1500C
2. Large infrared radiation rate: 5 ~10 times the output of Nichrome wires
3. High mechanical strength, bending resistance reaches to 100~120MPa
4. Strong function of oxidation resistance and corrosion resistance and perfect thermal shock capability
5. Long lifetime, easy to install and maintenance
6. Free from noise and air pollution
When you place an order, please clarify the items below:
Type: GD/GC/U/W/SG/SD

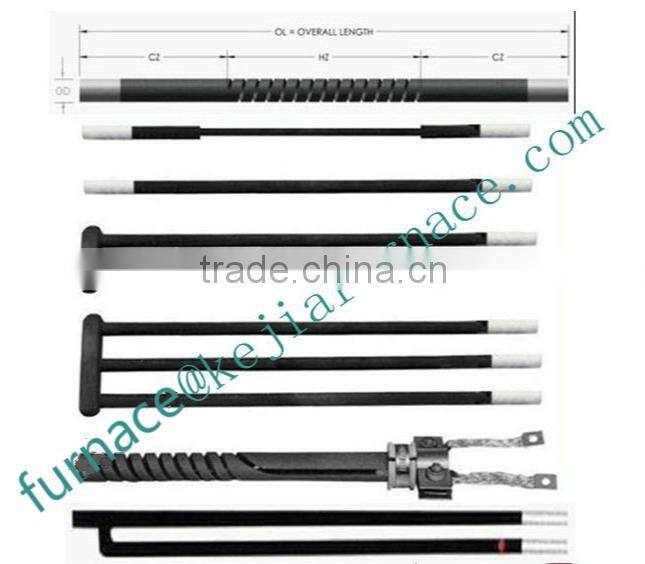

OD: Diameter; HZ: Length of the hot zone; CZ: Length of the cold zone; OL: Overall length
If type U or type W, please mark terminal distance A. If you have special requirements about resistance, please inform resistance value.
Oder sample:
U type, OD=14mm, HZ=250mm, CZ=300mm, Resistance=3.0ohms.
Please specify as: U; dia8/14x250x300mmx3.0 ohms, a= 50mm
SiC heating elements Special features
U type SiC elements are constructed from a U-shape.Consequently Type U have the terminals at one end for a single-phase power source. This reduces the number terminations and cold ends thus ensuring energy savings.
SiC heating elements Specification and range of resistance value
