Vibrating Screen with High Productivity and Advanced Technology
- 68 Set / Sets per Month
- Qingdao Shanghai etc.
- T/T
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, VIBRATING SCREEN | Application: | Mining |
Motor Type: | AC Motor | Power(W): | 5.5kw | Capacity(t/h): | 8-60tph |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | YK |
Weight: | 2500kg | Certification: | ISO CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

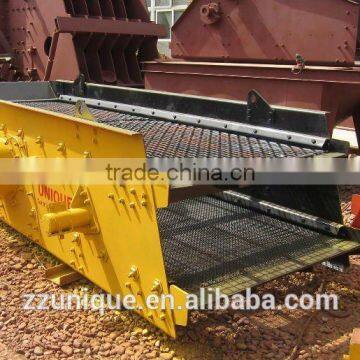

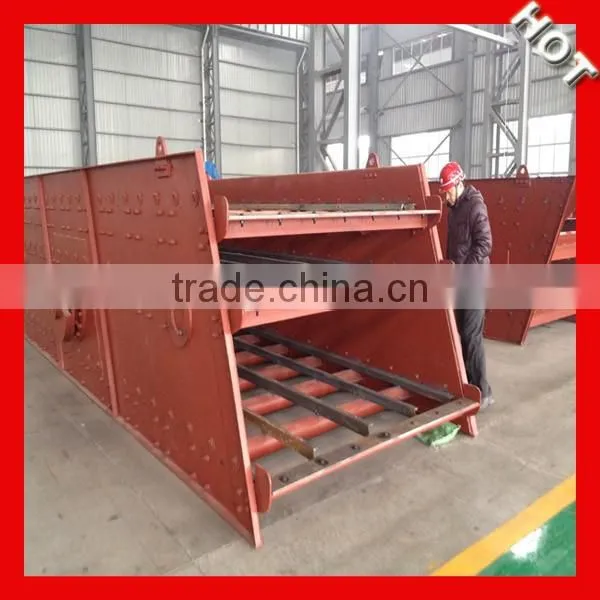

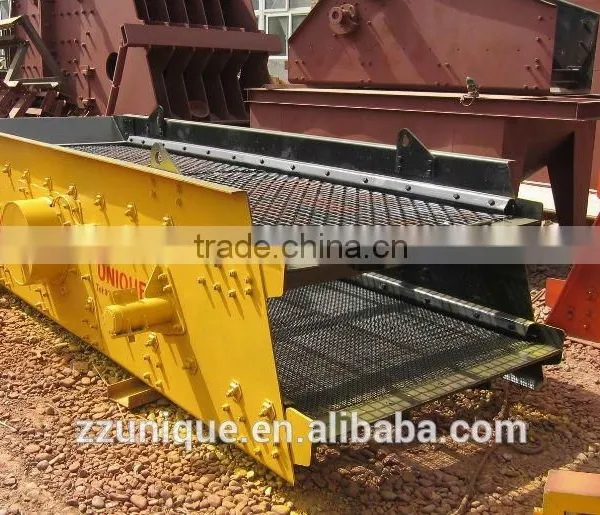

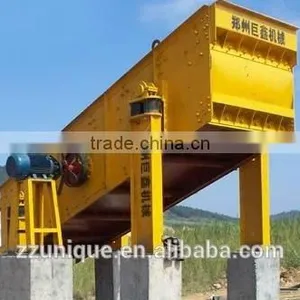

Vibrating Screen with High Productivity and Advanced Technology
Introduction of Vibrating Screen:
The circular Vibrating Screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety; circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Main Specifications:
Model | Sieve Layer | Mesh Size(mm)
| Max. Feeding Size(mm)
| Capacity (m³/h)
| Motor Power(kw)
| Weight(kg)
|
2YK1225 | 2 | 4-50 | 400 | 8-60 | 5.5 | 2500 |
3YK1225 | 3 | 4-50 | 400 | 10-70 | 5.5 | 2850 |
2YK1230 | 2 | 4-50 | 400 | 12-78 | 7.5 | 3000 |
3YK1230 | 3 | 4-50 | 400 | 13-80 | 7.5 | 3600 |
2YK1237 | 2 | 4-50 | 400 | 15-86 | 7.5 | 3600 |
3YK1237 | 3 | 4-50 | 400 | 16-90 | 7.5 | 4200 |
2YK1535 | 2 | 5-50 | 400 | 20-125 | 11 | 4890 |
3YK1535 | 3 | 5-50 | 400 | 21-125 | 11 | 5700 |
2YK1545 | 2 | 5-50 | 400 | 22-150 | 15 | 5330 |
3YK1545 | 3 | 5-50 | 400 | 22-150 | 15 | 5800 |
2YK1548 | 2 | 5-50 | 400 | 22.5-162 | 15 | 5980 |
3YK1548 | 3 | 5-50 | 400 | 22.5-162 | 15 | 6600 |
2YK1848 | 2 | 5-80 | 400 | 25-206 | 15 | 7080 |
3YK1848 | 3 | 5-80 | 400 | 32-276 | 18.5 | 7600 |
2YK1854 | 2 | 5-80 | 400 | 32-312 | 18.5 | 8150 |
3YK1854 | 3 | 5-80 | 400 | 32-312 | 22 | 8840 |
2YK2160 | 2 | 5-100 | 400 | 50-475 | 30 | 9780 |
3YK2160 | 3 | 5-100 | 400 | 50-475 | 30 | 10800 |
2YK2460 | 2 | 5-100 | 400 | 65-550 | 37 | 13600 |
3YK2460 | 3 | 5-100 | 400 | 70-620 | 37 | 15600 |
Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.
Features
1. Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
2. Large handling capacity, which can reach 810 ton per hour.
3. Long flow line and various screening specifications.
4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.
Working Principle
The vibrating screen is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
Zhengzhou Unique Industrial Equipment Co., Ltd. dedicated to producing Mining machinery for many years, is not only a professional manufacturer of mining equipment in the R&D manufacture, but also a leader manufacturer of mining equipment and distribution of Mining Machinery in China. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.
Zhengzhou Unique Industrial Equipment Co., Ltd. provides complete pre-sales and after sales support both home and abroad for our customers across all products lines through a comprehensive, multilingual technical support service.
Case installation site
Our cone crusher are installated in Philippines.
Customer visit
Our Advantages---
A.We have over 20 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
