Help CenterRock Vibration Screener for Rock Crushing & Screening
Related Products
-
2014 Robust China Vibration Stone Screener, Vibrating Sift, Aggregate Separator for SaleUS$ 11,999 - 12,000MOQ: 1 Set -
2013 Quarry Plant Screen, Vibrating Screen Machine With Good PricingUS$ 11,999 - 12,000MOQ: 1 Set
-
Hot Selling Mineral Machinery ZSW Electromagnetic Vibrating FeederUS$ 999 - 10,000MOQ: 1 Set
-
China Industrial High Frequency Circle Vibrating Sieve SupplierUS$ 1,500 - 80,000MOQ: 1 Set
-
Low Investment of Small Model Vibrating Screen 2YK1545 for Gravel ScreeningUS$ 9,999 - 10,000MOQ: 1 Set
Specifications
separate crushed rock1, 2, 3, 4 deck available
durable screen mesh
powerful vibration force
mesh size: 2-100mm

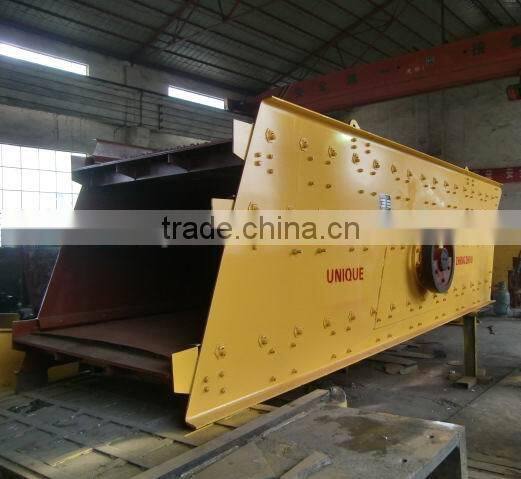

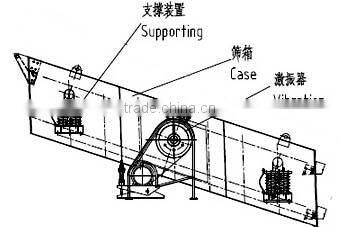

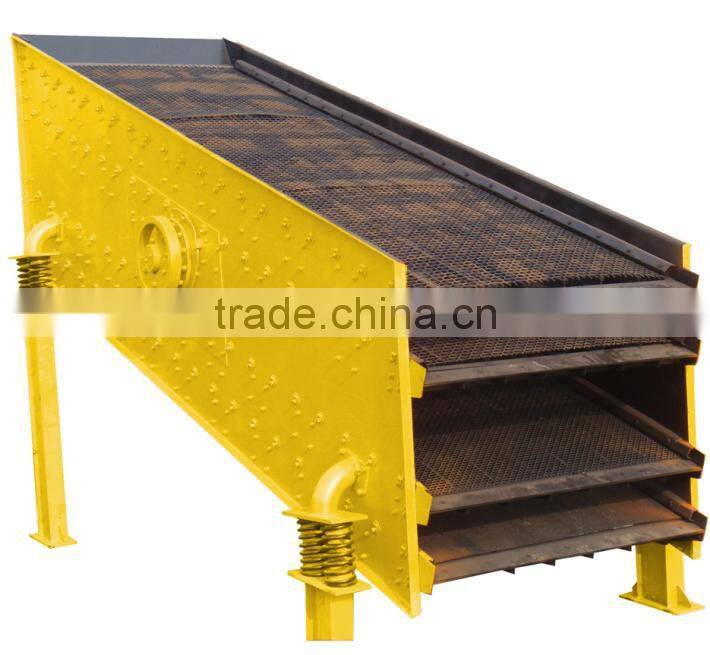

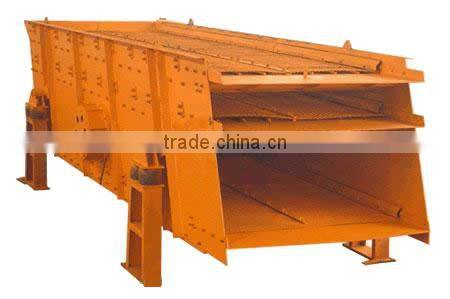

Circular vibrating stone screen is an efficient new shaker with a number of layers that does a circular motion. It adopts the barrel type eccentric shaft vibration exciter or eccentric block to adjust amplitude, trickling line is long and screening specifications are multiple.
It features reliable structure, strong exciting force, high screening efficiency, low vibrating noise, durable, easy maintenance and safe operation. Circular vibrating screen is widely used in mining, building materials, transportation, energy, chemical industry to do product classification.

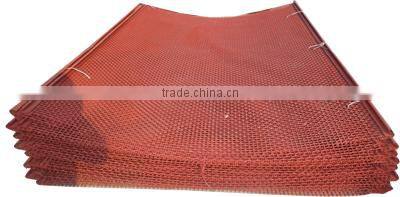

According to the material and product requirements, can use high manganese steel woven mesh, perforated metal and rubber sieve, which has single or double layer, can meet different requirements for various types of sieve screening effect. This series circular vibrating screen adopts seat installation. Screen angle can be adjusted by changing the position of the spring support height.
Models
| Model | Sieve Layer | Mesh Siz (mm) | Max. Feeding Size (mm) | Capacity (m³/h) | Motor Power (kw) | Weight (kg) |
| 2YK1225 | 2 | 4-50 | 400 | 8-60 | 5.5 | 2500 |
| 3YK1225 | 3 | 4-50 | 400 | 10-70 | 5.5 | 2850 |
| 2YK1230 | 2 | 4-50 | 400 | 12-78 | 7.5 | 3000 |
| 3YK1230 | 3 | 4-50 | 400 | 13-80 | 7.5 | 3600 |
| 2YK1237 | 2 | 4-50 | 400 | 15-86 | 7.5 | 3600 |
| 3YK1237 | 3 | 4-50 | 400 | 16-90 | 7.5 | 4200 |
| 2YK1535 | 2 | 5-50 | 400 | 20-125 | 11 | 4890 |
| 3YK1535 | 3 | 5-50 | 400 | 21-125 | 11 | 5700 |
| 2YK1545 | 2 | 5-50 | 400 | 22-150 | 15 | 5330 |
| 3YK1545 | 3 | 5-50 | 400 | 22-150 | 15 | 5800 |
| 2YK1548 | 2 | 5-50 | 400 | 22.5-162 | 15 | 5980 |
| 3YK1548 | 3 | 5-50 | 400 | 22.5-162 | 15 | 6600 |
| 2YK1848 | 2 | 5-80 | 400 | 25-206 | 15 | 7080 |
| 3YK1848 | 3 | 5-80 | 400 | 32-276 | 18.5 | 7600 |
| 2YK1854 | 2 | 5-80 | 400 | 32-312 | 18.5 | 8150 |
| 3YK1854 | 3 | 5-80 | 400 | 32-312 | 22 | 8840 |
| 2YK2160 | 2 | 5-100 | 400 | 50-475 | 30 | 9780 |
| 3YK2160 | 3 | 5-100 | 400 | 50-475 | 30 | 10800 |
| 2YK2460 | 2 | 5-100 | 400 | 65-550 | 37 | 13600 |
| 3YK2460 | 3 | 5-100 | 400 | 70-620 | 37 | 15600 |
