Specifications
Vibrating sieve1 Stable performance under violent vibrating
2.Large handling capacity
3.Small amplitude, high frequency
China Industrial High Frequency Circle Vibrating Sieve Supplier
Introduction of Industrial Vibrating Sieve
The Gravel Vibrating Sieve Equipment, also called circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety; circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.
Features
1. Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
2. Large handling capacity, which can reach 810 ton per hour.
3. Long flow line and various screening specifications.
4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.
Working Principle
The vibrating sieve is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
Main Specification of Industrial Vibrating Sieve
| Model |
Sieve Layer |
Max. Feeding Size(mm) |
Capacity (m³/h) |
Motor Power (kw) |
Weight (kg) |
| 2YK1225 | 2 | 400 | 8-60 | 5.5 | 2500 |
| 3YK1225 | 3 | 400 | 10-70 | 5.5 | 2850 |
| 2YK1230 | 2 | 400 | 12-78 | 7.5 | 3000 |
| 3YK1230 | 3 | 400 | 13-80 | 7.5 | 3600 |
| 2YK1237 | 2 | 400 | 15-86 | 7.5 | 3600 |
| 3YK1237 | 3 | 400 | 16-90 | 7.5 | 4200 |
| 2YK1535 | 2 | 400 | 20-125 | 11 | 4890 |
| 3YK1535 | 3 | 400 | 21-125 | 11 | 5700 |
| 2YK1545 | 2 | 400 | 22-150 | 15 | 5330 |
| 3YK1545 | 3 | 400 | 22-150 | 15 | 5800 |
| 2YK1548 | 2 | 400 | 22.5-162 | 15 | 5980 |
| 3YK1548 | 3 | 400 | 22.5-162 | 15 | 6600 |
| 2YK1848 | 2 | 400 | 25-206 | 15 | 7080 |
| 3YK1848 | 3 | 400 | 32-276 | 18.5 | 7600 |
| 2YK1854 | 2 | 400 | 32-312 | 18.5 | 8150 |
| 3YK1854 | 3 | 400 | 32-312 | 22 | 8840 |
| 2YK2160 | 2 | 400 | 50-475 | 30 | 9780 |
| 3YK2160 | 3 | 400 | 50-475 | 30 | 10800 |
| 2YK2460 | 2 | 400 | 65-550 | 37 | 13600 |
| 3YK2460 | 3 | 400 | 70-620 | 37 | 15600 |

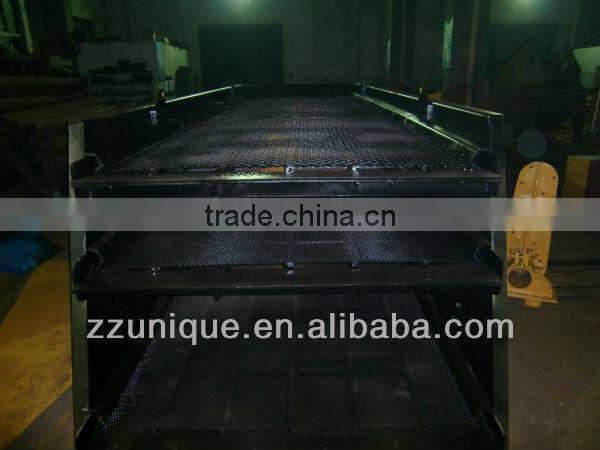

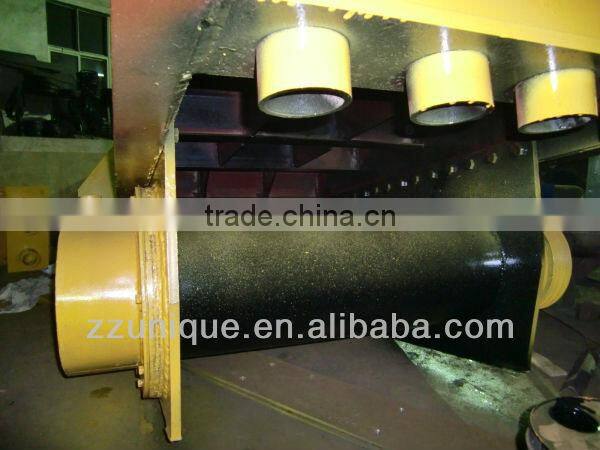

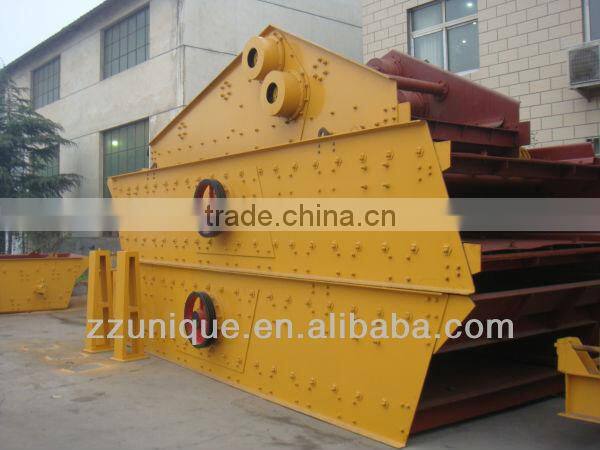

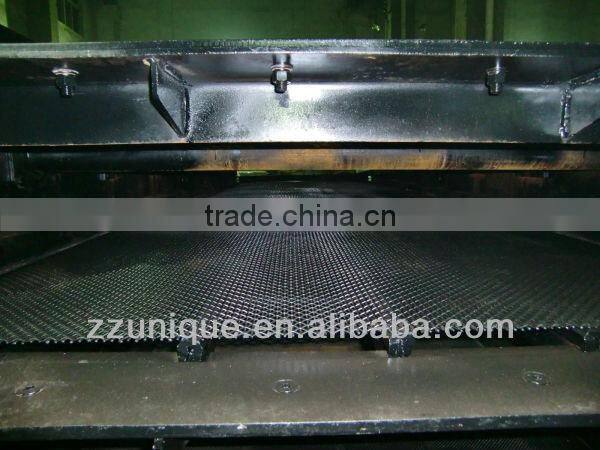

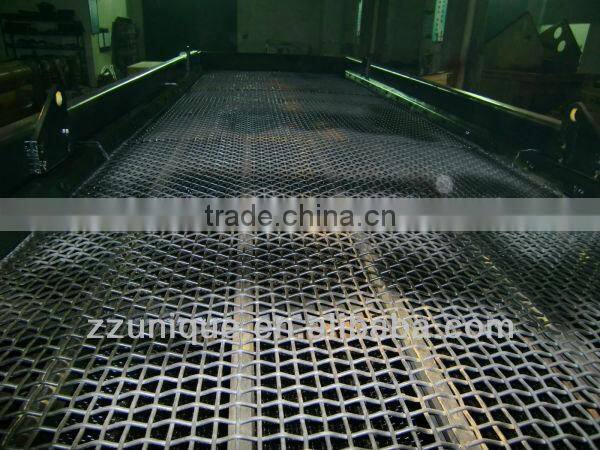

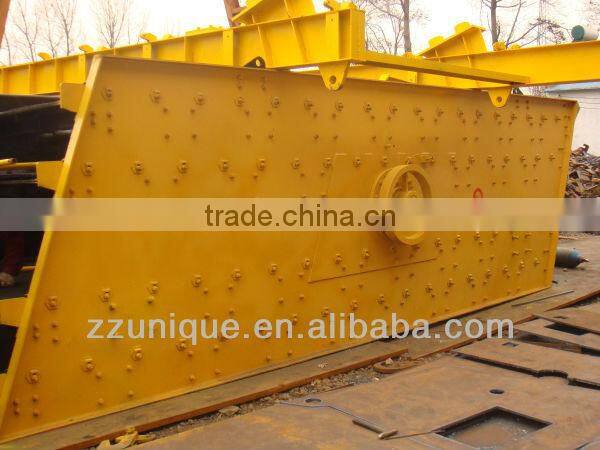

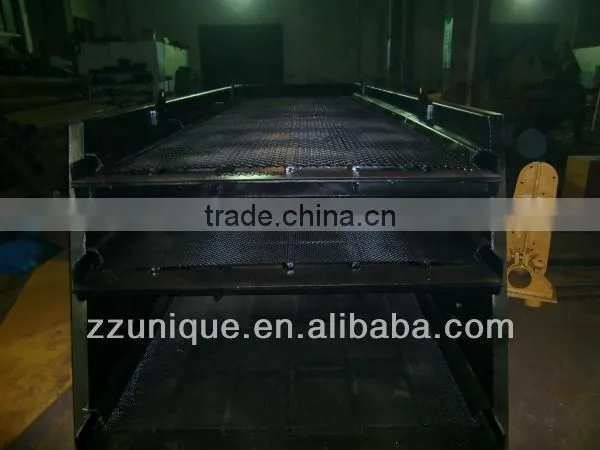

Photo Description
Package & shipment
Packaging: Standard Container, Nude Packs or in Bulk.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
Our service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
