Specifications
Artificial Stone Making Plant for Sale:1. Even sand product;
2. High crushing ratio;
3. Low working noise;
2013 Artificial Stone Making Plant for Sale
Introduction of Artificial Stone Making Plant for Sale
Sand making line contains vibrating feeder, PE-jaw crusher, PEX-jaw crusher, vertical shaft impact crusher, vibrating screen, sand washing machine. the design capacity is from 50t/h to 500 t/h .
(1) Crushing Process:
The stone material is sent regularly by the vibrating feed to the primary jaw crusher. then it is sent to the second jaw crusher to be crush again. the crushed material is sent by the vibrating screen to be separated. The material whose size is suitable for the feed size of the sand making machine can be sent to the sanding making machine.
The unsuitable materials should be sent back to the secondary jaw crusher to be crushed again.
(2) Sand Making and Sand Washing Process

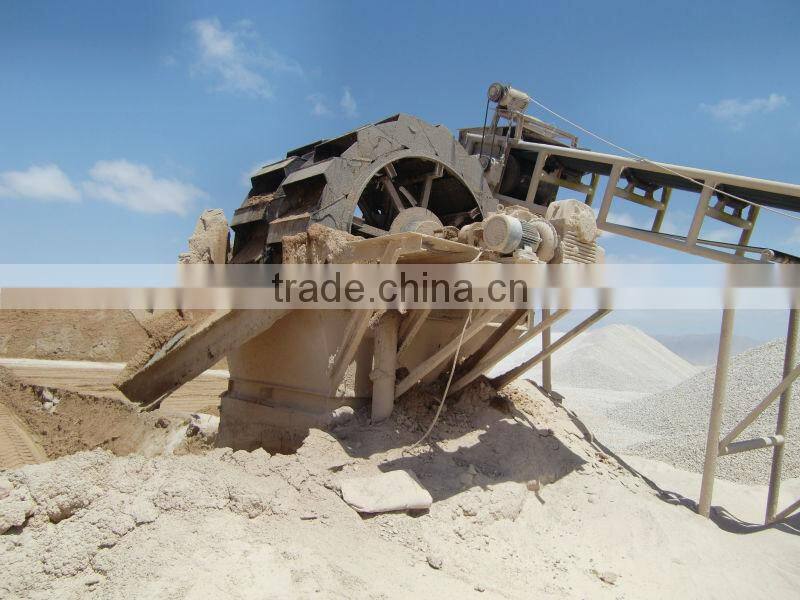

The crushing material from the sand making machine is sent back to the vibrating screen to be separated. The suitable separated sand which is the final product should be sent to the sand washing machine to be cleaned, and then sent by the belt conveyor. The unsuitable separated sand should be sent back to the sand making machine to be crushed again. The producing line forms two closed cycles. The producing line can be changed according to the customer’s requests.
Features of Artificial Stone Making Plant for Sale
The whole sand making plant is highly automatic and the sizes of the finished products are even, good-shaped and can be adjustable, with high crushing ratio, highly process capacity, low power consumption, It is suitable for any type of crushing station, such as for road and bridge construction.
Processing Capacity of Artificial Stone Making Plant for Sale
For stone crushing 50-500t/h
For sand making 20-180t/h
Notes:
If you are not sure what you need the sand making line, please go choosing tips
In order to meet your requirement, please provide at least the following information:
1. What is the Maicmum size of your raw rock ?
2. What is the final partoca size do you need ?
3. How many tons per hour do you want to feed the crusher?
4. Do you want just the crusher, a crusher with feeder, vibrating screens,conveyors and some others?

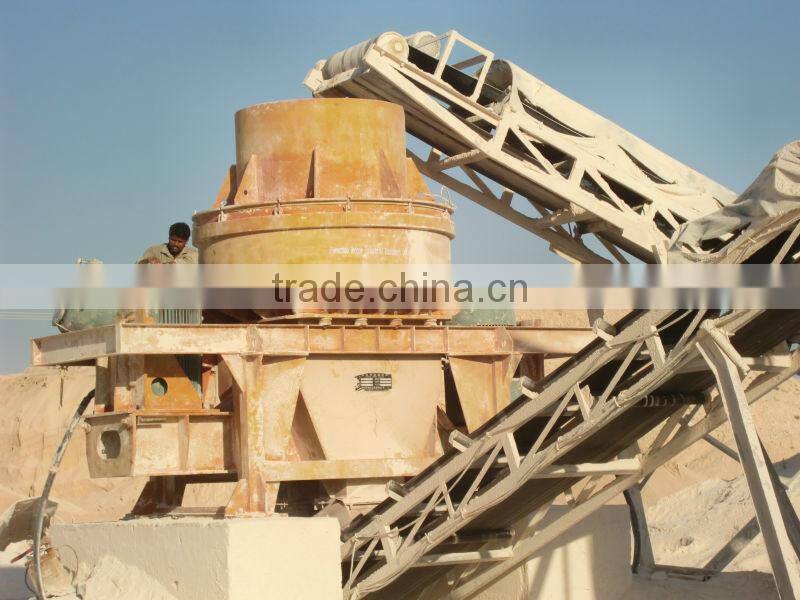

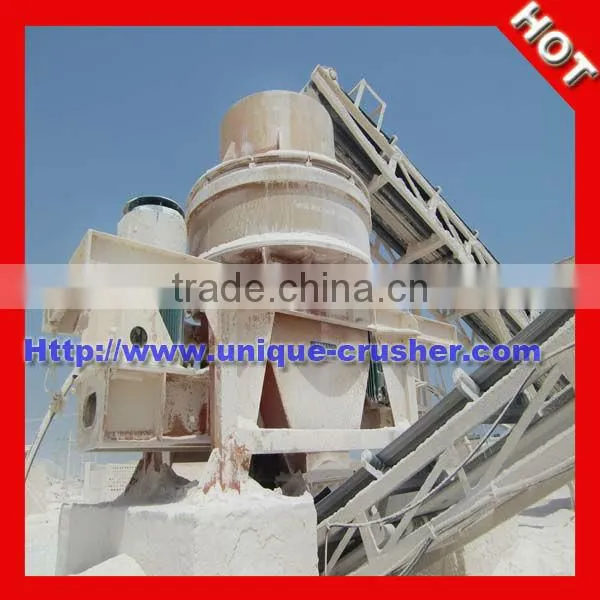

Main Equipment of Artificial Stone Making Plant for Sale --Vertical Shaft Impact Crusher Specification
Model |
Feeding (mm) |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
UT-600 |
35 |
12-30 |
37-55 |
5600 |
UT-750 |
45 |
25-55 |
55-75 |
7600 |
UT-900 |
50 |
55-100 |
110-150 |
12600 |
UT-1050 |
60 |
100-160 |
150-180 |
17300 |
UT-1250 |
60 |
160-300 |
264-320 |
22500 |
UT-1350 |
60 |
200-360 |
320-400 |
27600 |
Zhengzhou Unique Industrial Equipment Co., Ltd, a reliable and professional supplier of Artificial Stone Making Plant for Sale
