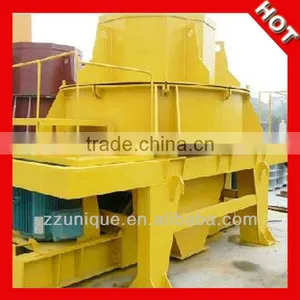

2014 New Artificial Sand Making Machine For Sale

Specifications

1.The motor can be heated automatically in winter
2. Unique vibrating alarm device
3. Special feeding structure
4.Low price

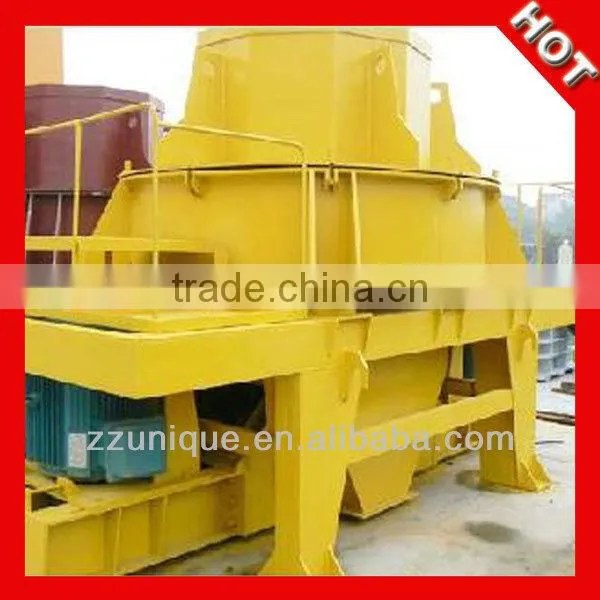

 VSI Artificial Sand Making Machine For Sale



 Introduction of our VSI artificial Sand Making Machine

VSI Sand Making Machine is widely used in fine crushing and rough grinding of metal, mineral, building aggregate, concrete, anti-fire material, glass raw material, manufactured sand and all kinds of metallurgical slug. It is also can utilized in shaping of high rank road surface. Compared with other kind of crusher, it is more advanced in intermediate hard, extra hard and abrasive material. Sand Making Machine is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The Unique VSI Crusher (sand making machine) is widely used to produce sand and stone for highway, high-speed railway, city project, hydropower dam constructions, and concrete mixing plant, and it’s also widely used in sand making and stone reshaping industry.





Features and Benefits of Our Artificial Sand Making Machine

1. The oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine.
2. Hydraulic lifting system to check and replace the spare parts, thus it’s very easy and simple to maintain.
3. The bearing is of SKF and TIMKEN brand to ensure the normal working of the machine.
4. Unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine.
5. Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped.
6. Unique dustproof seal system to prevent the dust getting into the spare parts.
7. Unique design of material bumping angle reduces the friction between raw material and spare parts, extending the working life of spare parts and cut the cost.

8. Low price





After-Sale Service of Our Artificial Sand Making Machine

Erection and Commissioning

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time: 20~30 days after receiving advanced payment .

Products Certificate: TUVRheinland CE , ISO9001:2000



Working Principle of Our Artificial Sand Making Machine

1. Central feeding:Raw materials fall down into the feeding hopper, then enters the impellor through central entrance inlet, thus the material being accelerated by the high-speed impellor and being thrown out at the speed of 60-75m/s. It is crushed when hitting the impact plate, and the end products comes out from the discharging outlet.
2.  Ring feeding:Raw materials fall down into the feeding hopper, and the materials are divided into two parts by a special plate. Some materials enter the impellor through the center of the plate and the other part of materials falls down from outside of the plate. The materials thrown out earlier crush the materials down from outside, thus the materials crushed and re-crushed.

 The Application of Artificial Sand Making Machine

1. River pebbles, rocks (limestone, granite, basalt, diabase, and esite), ore tailings, the artificial sand stone chips.

2. Production of construction aggregate, Highway fabric, cushion material, asphalt concrete and cement concrete aggregate.

3. Production of water conservancy and hydropower engineering, highway, highways, high-speed rail passenger line, bridges, airport runways, municipal engineering, high-rise building mechanisms sand and stone shaping.

4. Material crushing grinding of the mining areas of front-end crushing process, building materials, metallurgy, chemical, mining, refractory, cement, abrasive industry.

5. High abrasive and secondary disintegration broken, thermal power, metallurgy industry, in addition to sulfur, slag, construction waste crushing and other environmental projects.

6. Glass, quartz sand and other high purity materials production



Specification of Our VSI Artificial Sand Making Machine(Vertical Shaft Imapct Crusher)





Model	Capacity(t/h)		Best feed size(mm)		Rototion speed(r/min)	Double motor power(kw)	Demension(mm)	Weight(t)	Power supplier
	feed both at center and at sides	Feed at center	Soft material	Hard material
VSI-7611	120-180	60-90	35	30	1700-1890	110	3700*2150*2100	11.8	380V50HZ
VSI-8518	200-260	100-130	40	35	1520-1690	180	4140*2280*2425	14.5
VSI-9526	300-380	150-190	45	40	1360-1510	264	4560*2447*2778	17.8
VSI-1140	450-520	220-260	50	45	1180-1310	400	5000*2700*3300	25.6



OUR PRODUCT SCOPE:

 Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill



More information about our Sand Making Machine or other machine, please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
