Specifications
KY100 Wagon Drill Manufacturer:1. Safe and stable travelling system
2. New drilling boom
3. Long service life

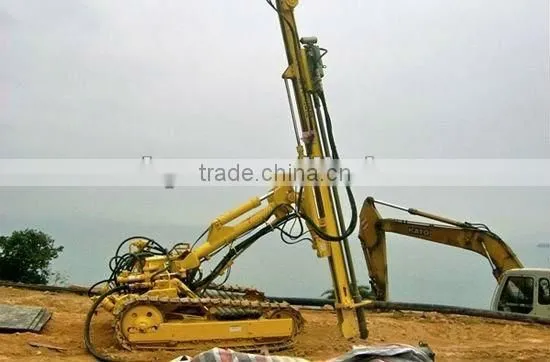

KY100 Wagon Drill Manufacturer
KY100 Crawler Drilling Rig is a type of Low wind pressure open-air down-hole drill.
Powerful and Reliable Engine of KY100 Wagon Drill Manufacturer
1. Adopt famous 2-cylinder diesel engine as driving force which has advantages of large power, powerful grade-ability, small vibration and reliable operation.
2. Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter two-stage filter. That strengthens the crawler rock drill’s adaptability to severe environment and lengthened the diesel engine’s service life.
Adjustable boom of KY100 Wagon Drill
Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder. That enlarges the drilling hole’s range and improve the machine’s adaptability.
Reliable hydraulic pump system of KY100 Wagon Drill
1.Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance.
2. Adopt gear transmission and soft connection, possessing compact structure and stable operation.
Reliable Hydraulic System of KY100 Wagon Drill
1. Adopt special hydraulic components. That improves the system’s stability and reliability.
2. Install oil liquid cooling device, to eliminate the exothermic hydraulic oil’s influence to the system
Specification of KY100 Wagon Drill
Specification |
KY100 |
Rock hardness |
F=6-20 |
Hole diameter (mm) |
80-105 |
Drill depth (m) |
20 |
Pressure (Mpa) |
0.5-0.7 |
Air consumption (M3/min) |
≥12 |
Rotating speed (Km/h) |
0-65 |
Lifting capacity (KN) |
15 |
Drill rod specification (mm) |
60×2000 |
Gradeability |
30° |
Ground clearance (mm) |
254 |
Walking speed (km/h) |
2.0 |
Drill arm rising angles (°) |
-35~+60 |
Drill arm swing angle (°) |
- |
Carriage swing angle(°) |
-11.5~36.5 |
Carriage pitch angle (°) |
-118.5~+23.5 |
Carriage Compensation (mm) |
900 |
Overall Dimension (L*W*H)(mm) |
4100×2030×2020 |
Total Weight (Kg) |
3200 |
Note: |
Pneumatic-hydraulic |
| |
Mobile Screw Air Compressor
Model |
Work pressure |
Capacity |
Diesel engine (hp) |
Weight |
Dimension |
LGCY-12/10 |
1.0 |
12 |
YuChai |
3500 |
3600*1900*2200 |
LGCY-13/13 |
1.3 |
13 |
Cummins |
3500 |
3600*1900*2200 |
LGCY-15/13 |
1.5 |
15 |
YuChai |
3500 |
3600*1900*2200 |
LGCY-18/17 |
1.7 |
17 |
Cummins |
3500 |
3600*1900*2200 |
Zhengzhou Unique Industrial Equipment Co., Ltd, a reliable and professional supplier of Wagon Drill
