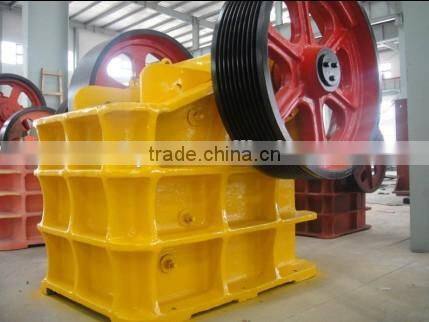

Help CenterGood Pricing Small Scale Rock Crusher PE400*600
Related Products
-
Big Black Rock Crusher for QuarryNegotiableMOQ: 1 Set -
Supplying Very Fine Powder Mill by Unique GroupNegotiableMOQ: 1 Set
-
2014 Small Limestone Raymond Mill Hot SellingNegotiableMOQ: 1 Set
-
Popular Small Raymond Grinding Mill in StockNegotiableMOQ: 1 Set
-
China Vertical Grinder Mill for SaleNegotiableMOQ: 1 Set
Specifications
Model-PE400x600Position-Primary Crusher
Easy operation, Stable performance.
Strong crushing ability
Adjustable Output
China PE series Jaw Crushers made by our company is applied for crushing operation in mining, quarry and other applicable industry sectors. In China, people also nickname it as “Tiger Mouth”. The crushing cavity is composed of two pieces jaw plates, one is movable and the other is static. The two jaw plates simulate the movement of animal’s jaw to complete the crushing operation for raw material.
Our factory was once a state-owned plant which specialized in the field of stone crushing & screening equipment production from 1980 on. With more than 30 years’ experience of design, research and development, our product quality has been recognized by a bunch of users’ good comments both domestic and overseas. Working with us is your wise choice and we can assure you good performance and high productivity of our crusher.
The below are multiple models of our primary jaw crusher (PE series) & secondary jaw crusher (PEX series) for your options. If customer has special request, we also can customize the crusher as per his requirement. For example, like the frame of jaw crusher, we can do steel casting or steel plate welded type according to customer’s preference.
Models |
Feed opening size(mm) |
Max. feed size(mm) |
Discharge adjustment range(mm) |
Capacity(m3/h) |
Motor(kw) |
PE-250*400 |
250*400 |
210 |
20-60 |
3-13 |
15 |
PE-400*600 |
400*600 |
340 |
40-100 |
10-35 |
30 |
PE-500*750 |
500*750 |
425 |
50-100 |
25-60 |
55 |
PE-600*900 |
600*900 |
500 |
65-180 |
30-85 |
55-75 |
PE-750*1060 |
750*1060 |
630 |
80-180 |
72-150 |
90-110 |
PE-800*1060 |
800*1060 |
680 |
100-200 |
85-143 |
90-110 |
PE-870*1060 |
870*1060 |
750 |
170-270 |
145-235 |
90-110 |
PE-900*1060 |
900*1060 |
780 |
200-290 |
170-250 |
90-110 |
PE-900*1200 |
900*1200 |
780 |
95-255 |
100-240 |
110-132 |
PE-1000*1200 |
1000*1200 |
850 |
195-280 |
190-275 |
110-132 |
PE-1200*1500 |
1200*1500 |
1020 |
150-300 |
250-500 |
160 |
PEX-150*750 |
150*750 |
120 |
18-48 |
5-16 |
15 |
PEX-250*750 |
250*750 |
210 |
25-60 |
8-22 |
22 |
PEX-250*1000 |
250*1000 |
210 |
25-60 |
10-32 |
30-37 |
PEX-250*1200 |
250*1200 |
210 |
25-60 |
13-38 |
37 |
PEX-300*1300 |
300*1300 |
250 |
20-90 |
10-65 |
55 |
Features of Jaw Crusher
1. Structure is simple and operation/maintenance is easy
2. With stable performance, operational cost is low
3. Discharge opening adjustment is reliable and easy
4. Large crushing ratio
5. Output has low dust content
