Pulley Spring Type Conical Crusher for Secondary Crushing Stage

Pulley Spring Type Conical Crusher for Secondary Crushing Stage thumbnail-1
Pulley Spring Type Conical Crusher for Secondary Crushing Stage photo-1
US$ 60,000 - 61,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
quarry, mining, construction
Contact Supplier Request Quote Chat Now
Zhengzhou Unique Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Cone Crusher
Application quarry, mining, construction
Motor Type AC Motor
Power(W) 110KW
Capacity(t/h) 110-200
Place of Origin Henan, China
Brand Name Unique
Model Number PYB1200
Dimension(L*W*H) 2805x2300x2980mm
Weight 24.7ton
Certification ISO
Warranty 15 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

PYB1200 cone crusher
standard crushing chamber
strong crushing force
stable structure
spring overload protection system

China PY Series spring cone crusher is one of the first developed and advanced cone crusher that has high-power, large crushing ratio and high productivity.

pulley spring type conical crusher for secondary crushing stage pulley spring type conical crusher for secondary crushing stage



Spring cone crusher is Suitable for fine crushing and superfine crushing of hard rock, ore, slag, refractories. Stone Cone Crusher is widely used in metallurgical industry, construction industry, road building industry, chemical industry and phosphate industry, applied widely in crushing hard and medium hard ore and rock, such as iron ore, copper ore, limestone, quartz, granite , basalt, diabase.



 pulley spring type conical crusher for secondary crushing stage pulley spring type conical crusher for secondary crushing stage



Ore crushing chamber is determined by the type of use: standard type suitable for medium crushing, medium suitable for fine crushing and the short head type is suitable for ultra-fine crushing.



Specification of different models





Model

Cone dia.

(mm)

Feed opening size

(mm)

Discharge opening size

(mm)

Max. feed size

(mm)

Capacity

(t/h)

Eccentric bushing rotation speed

(r/min)

motor

(kw)

Weight

(t)

PYB-600

600

75

12-25

65

40

356

30

5

PYD-600

600

40

2-13

35

12-23

356

30

5.5

PYB-900

900

135

15-50

115

50-90

333

55

11.2

PYZ-900

900

70

5-20

60

20-65

333

55

11.2

PYD-900

900

50

3-13

40

15-50

333

55

11.3

PYB-1200

1200

170

20-50

145

110-168

300

110

24.7

PYZ-1200

1200

115

8-25

100

42-135

300

110

25

PYD-1200

1200

60

3-15

50

18-105

300

110

25.3

PYB-1750

1700

250

25-50

215

280-480

245

160

50.3

PYZ-1750

1700

215

10-30

185

115-320

245

160

50.3

PYD-1750

1700

100

5-13

85

75-230

245

160

50.2

PYB-2200

2200

350

30-60

300

590-1000

220

280/260

80

PYZ-2200

2200

275

10-30

230

200-580

220

280/260

80

PYD-2200

2200

130

5-15

100

120-340

220

280/260

81.4





Features

1, the eccentricity is increased to improve the processing capacity;

2, speed up, increase power and improve the crushing fineness;

3, increased dynamic cone rotary pendulum center, optimizing chamber design;

4, thicker lining and prolonged life;

5, hydraulic motors replace hydraulic pusher, discharge mouth has precise continuous adjustment, in 10 minutes can take out the fixed cone assembly;

6, high yields and high content of ore fines;

7, the key components use high-strength material, increase weight properly, better reliability.

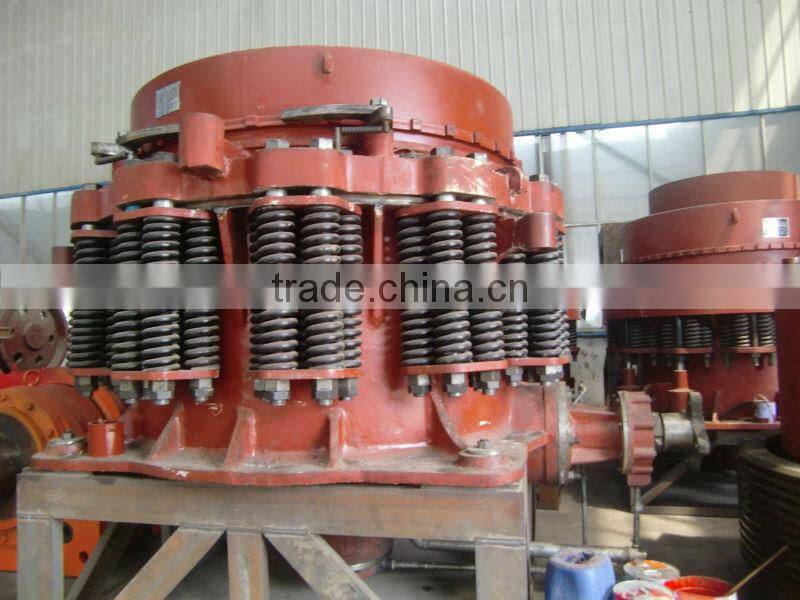

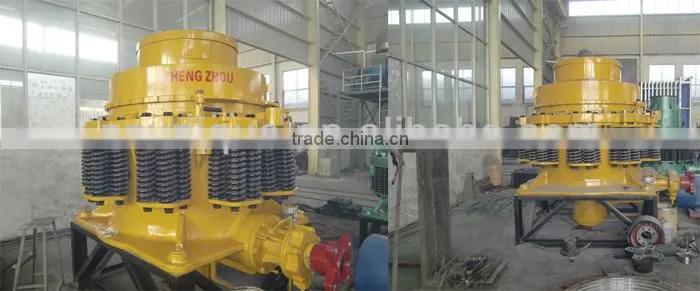

 PYB900                                                                                                                  PYB600

 pulley spring type conical crusher for secondary crushing stage

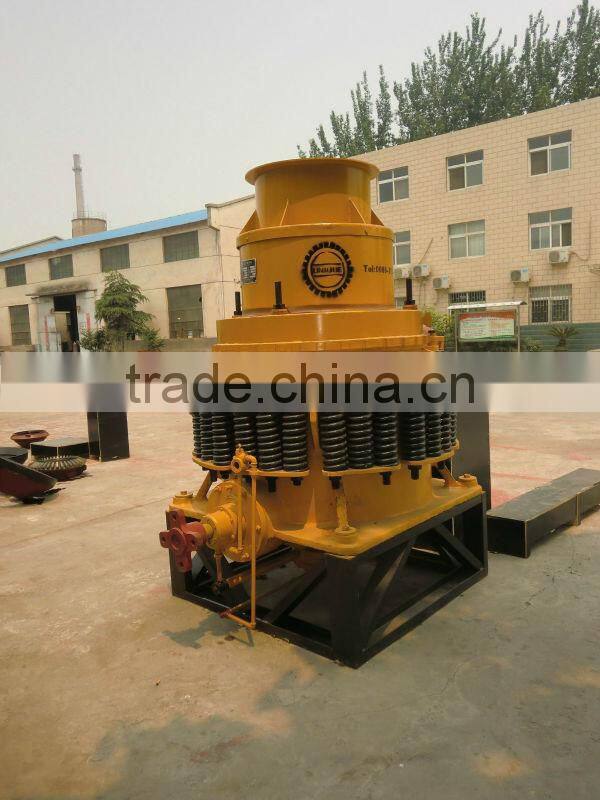

PYB1200

pulley spring type conical crusher for secondary crushing stage

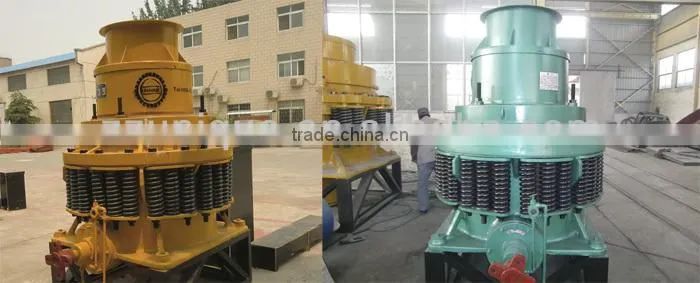

PYB1750

pulley spring type conical crusher for secondary crushing stage

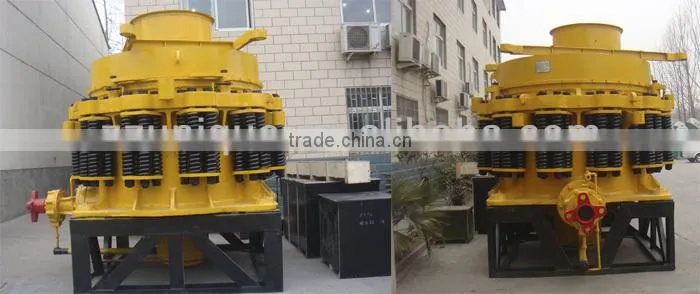

PYB-2200

pulley spring type conical crusher for secondary crushing stage

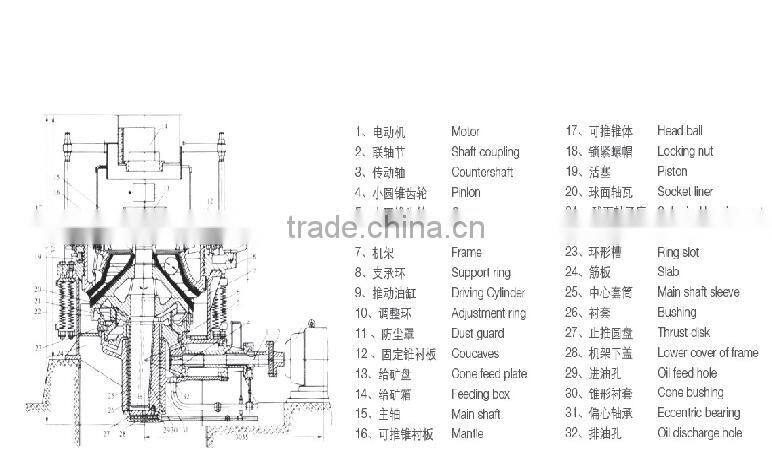

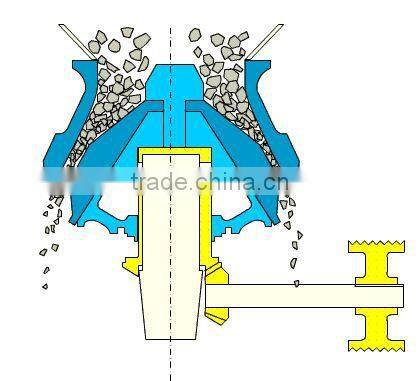

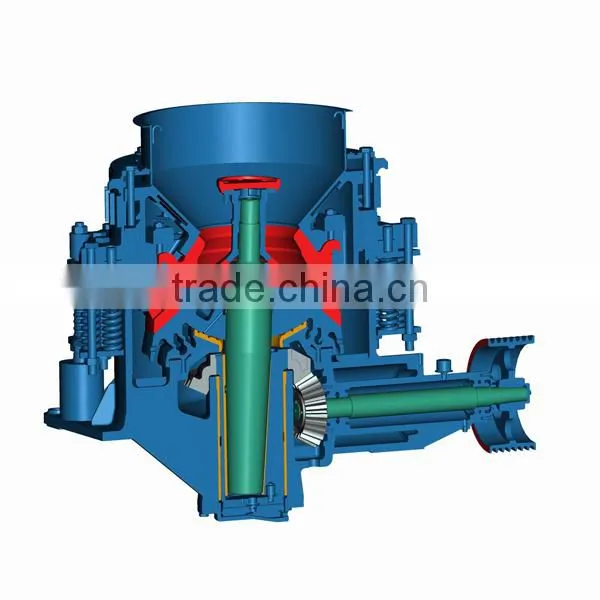

Structure View

pulley spring type conical crusher for secondary crushing stage

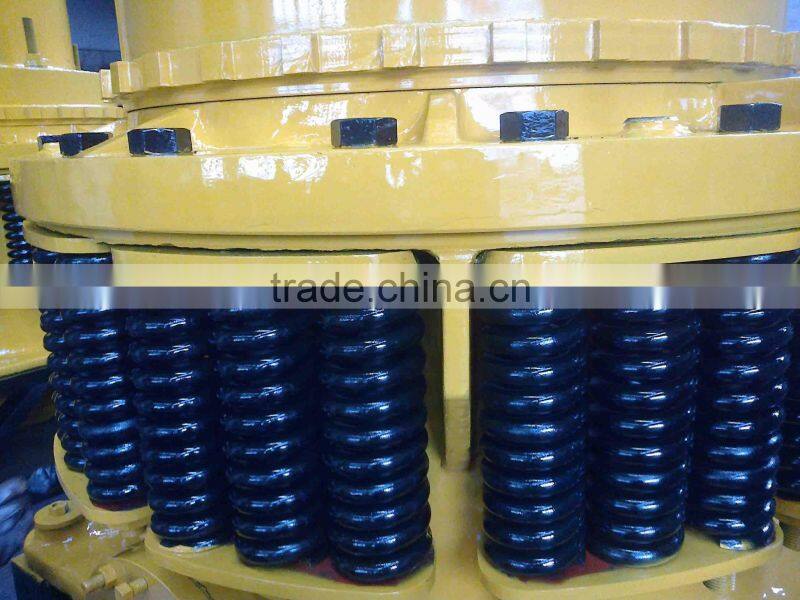

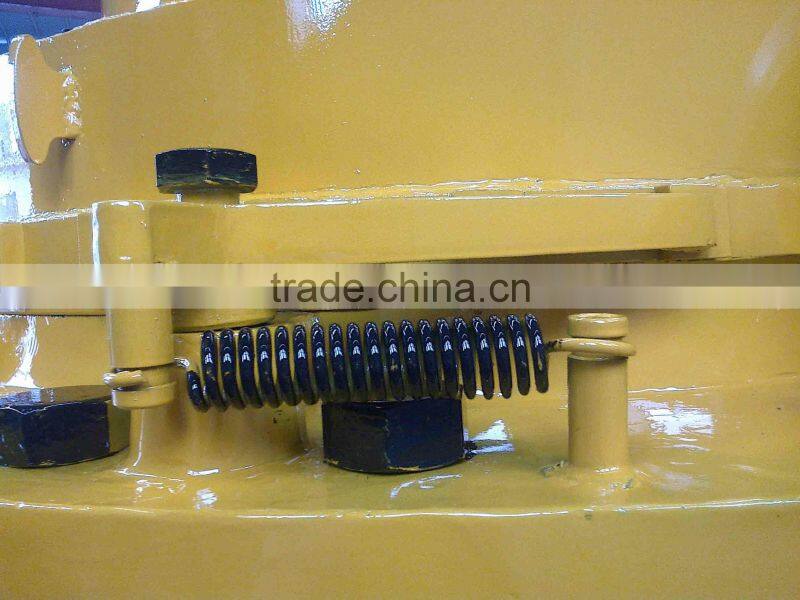

Springs

pulley spring type conical crusher for secondary crushing stage pulley spring type conical crusher for secondary crushing stage

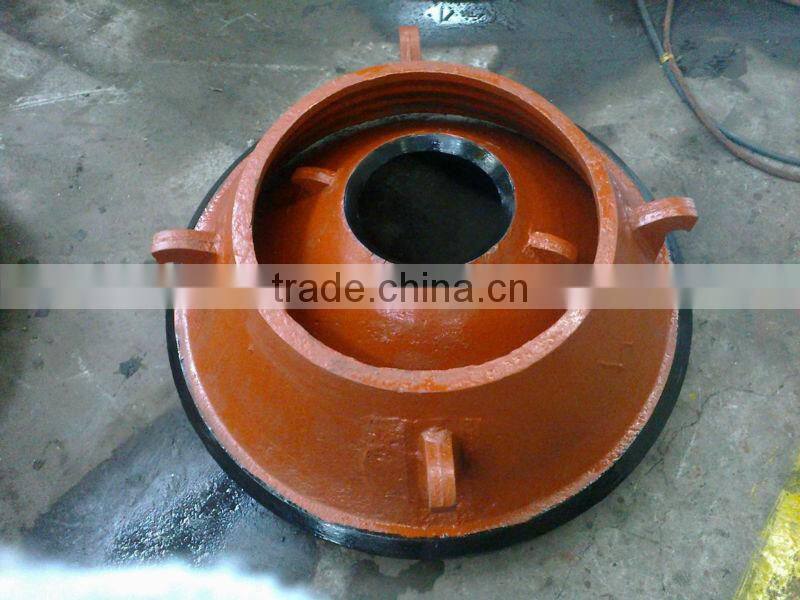

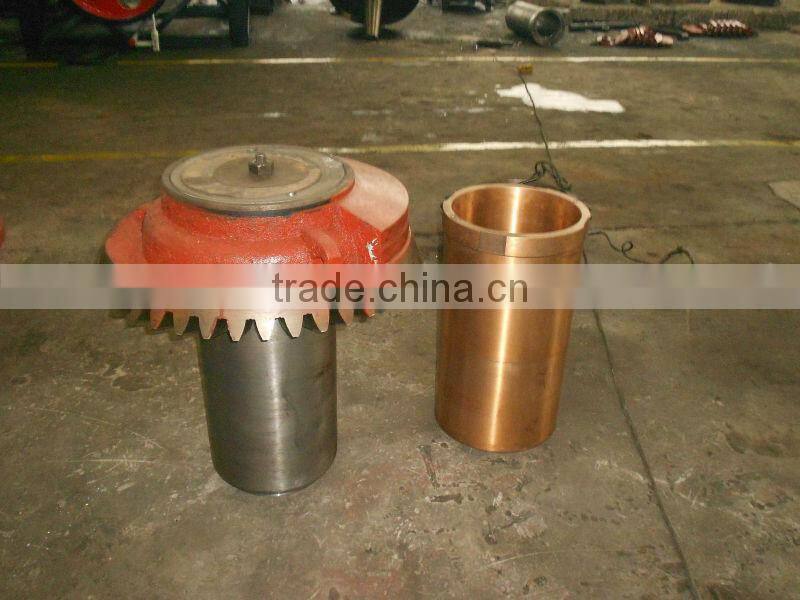

Concave & Mantle                                                                           Pinion & Copper bush

pulley spring type conical crusher for secondary crushing stage pulley spring type conical crusher for secondary crushing stage



pulley spring type conical crusher for secondary crushing stage
