Product Details
| Condition | New | Type | Impact Crusher | |
| Application | Mining | Motor Type | AC Motor | |
| Power(W) | 37-55kw | Capacity(t/h) | 30-50tph | |
| Place of Origin | Henan, China | Brand Name | UNIQUE | |
| Model Number | PF-1007 | Dimension(L*W*H) | 2400*1558*2660 | |
| Weight | 9.5t | Certification | ISO CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

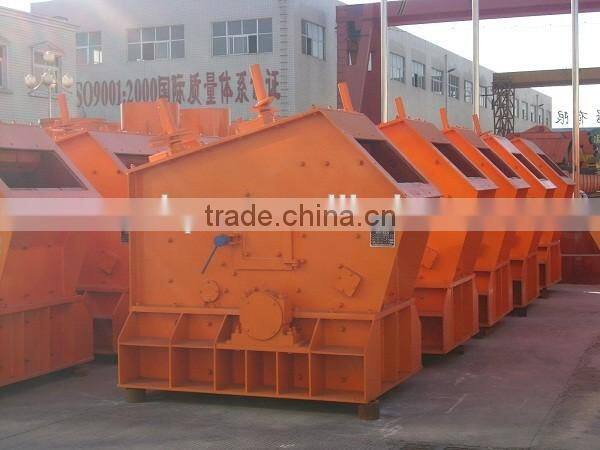

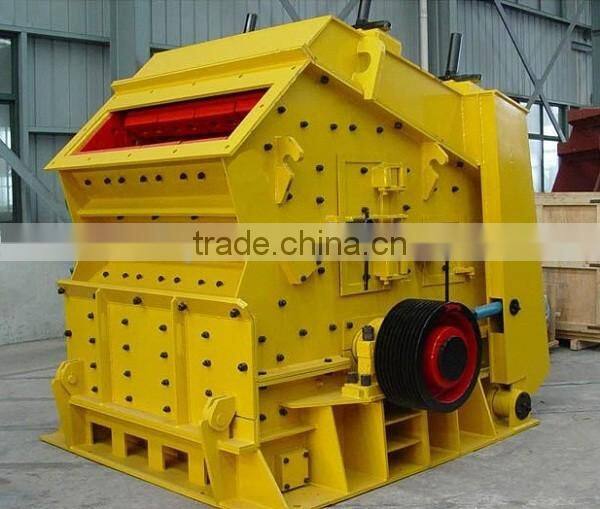

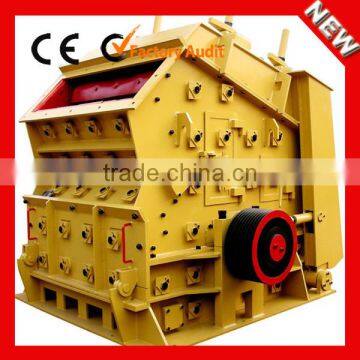

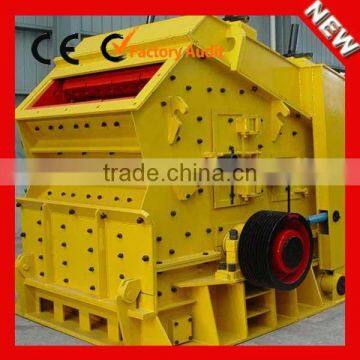

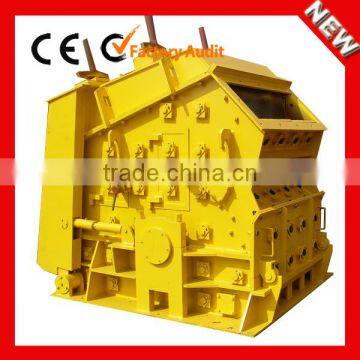

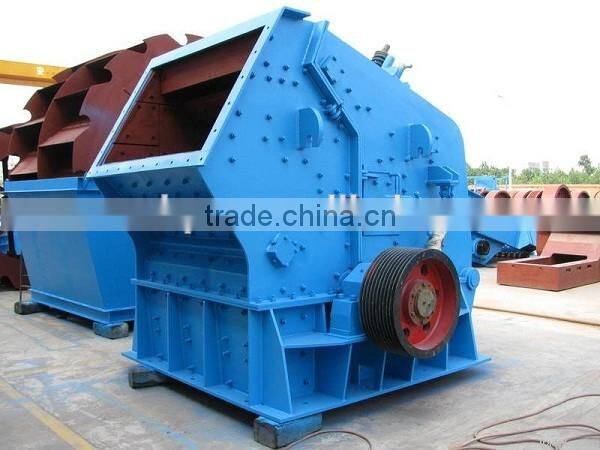

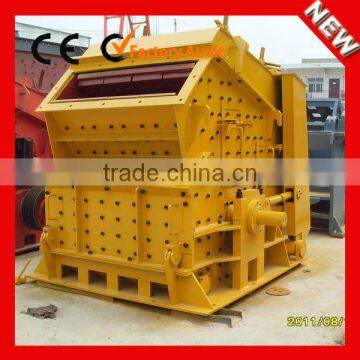

High Quality Best Service Impact Crusher for Quarry Plant
Features of Impact Crusher:
Impact crusher is mainly used in secondary crushing. It can crush various rocks, high efficiency, easy maintenance, and cubic shape of the products. Impact crusher is widely used in mining, highway, and construction.
Working Principle of Impact Crusher:
The electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
Technical Specification of Impact Crusher:
Model
| Max Feed Edge(mm)
| Capacity (t/h)
| Motor Power(kw)
| Weight(t)
| Dimensions (L×W×H) (mm)
|
PF-1007 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
PF-1010 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
PF-1210 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
PF-1214 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
PF-1315 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
Impact Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
Features
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
Working Principle
The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipments via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher.
Packaging: Standard Container, Nude Packs or in Bulk.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
After-sale service of impact crusher
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Introduction of our company:
Zhengzhou Unique Industrial Equipment Co., Ltd. dedicated to producing Mining machinery for many years, is not only a professional manufacturer of mining equipment in the R&D manufacture, but also a leader manufacturer of mining equipment and distribution of Mining Machinery in China. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.
Our production scope:

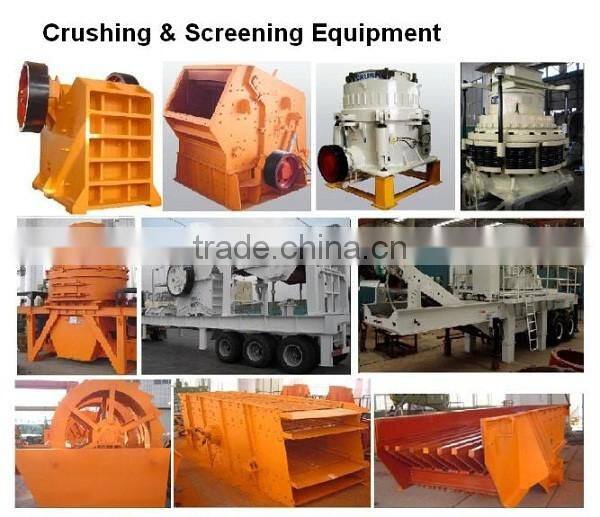

Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
Q1.Can I visit your factory?
Yes, Many domestic and international customers visit our factory every year
Q2.Do you supply spare parts and after-sale service?
Yes, we supply and we havea professional after-sale service team to promptly and thoroughly solve your problems.
Q3.Do you provide beneficiation flow chart?
Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4.Can you test our samples?
Yes. You can send your samples to us for test and analysis.
Q5. Have you made the whole ore dressing lines?
Yes. We have made several large ore dressing lines at home and abroad.
Advantages
Our Advantages---
A.We have over 20 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
Any questions , please contact us freely.
