Specifications
Granite Mining Equipment Advantages:1. Less wear rate;
2. High reduction ratio;
3. Easy maintenance;

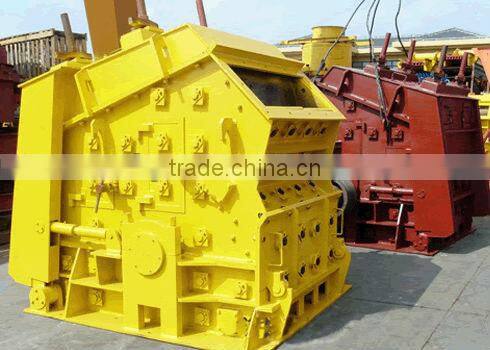

2013 HOT SALE Granite Mining Equipment
Features of Granite Mining Equipment
Granite Mining Equipment, a type of impact crusher, is mainly used in secondary crushing. It can crush various rocks, high efficiency, easy maintenance, and cubic shape of the products. Impact crusher is widely used in mining, highway, and construction.

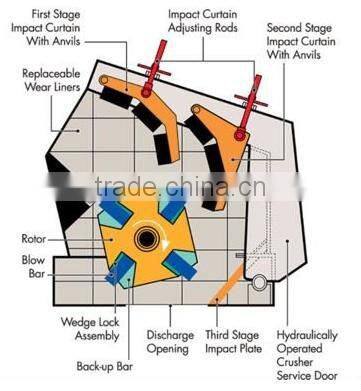

Working Principle of Granite Mining Equipment
Impact mill's electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
Technical Specification of Granite Mining Equipment
Model |
Max Feed Edge(mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Dimensions (L×W×H) (mm |
PF-1007 |
300 |
30-70 |
45 |
12 |
2330×1660×2300 |
PF-1010 |
350 |
50-90 |
55 |
15 |
2370×1700×2390 |
PF-1210 |
350 |
70-130 |
110 |
17.7 |
2680×2160×2800 |
PF-1214 |
350 |
100-180 |
132 |
22.4 |
2650×2460×2800 |
PF-1315 |
500 |
130-250 |
220 |
27 |
3180×2720×2620 |
| |||||
