Specifications
Stone Impact Crusher for Gravel Making:1.High-chromium board hammer
2.Big feeding opening
3.For secondary crushing

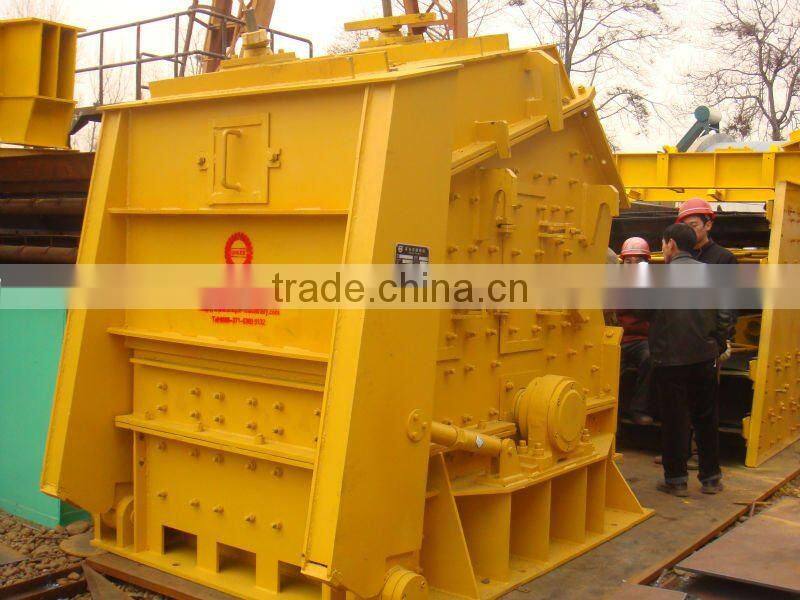

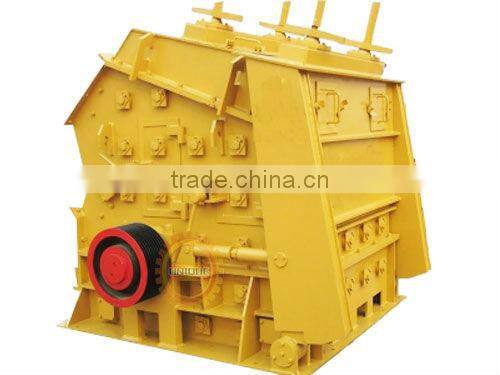

Stone Impact Crusher for Gravel Making
Application of Our Stone Impact Crusher for Gravel Making
| 1. This Crushing Machine is a type of impact crusher. It is widely used in secondary crushing in hydropower, highway, artificial aggregate, crushing industries etc. |
| 2. It is applied to crushing materials whose length of side is less than 500mm and the compression strength is less than 350 MPa. such as marble, basalt, granite, quartz, limestone, gold ore etc. |

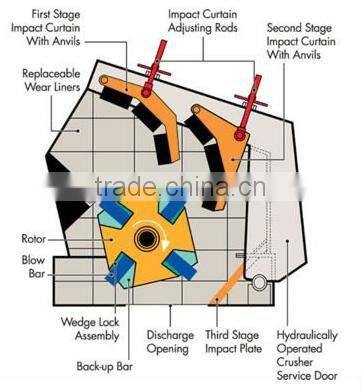

| 3. The discharging size can be adjusted by regulating the clearance between hammer head, impact plate and balanced parts. |
| 4. Our crushing machine has been exported to many countries, such as Chile, Indonesia, Philippines, Zambia etc. and is widely appriased by our customers. |
Advantages of Our Stone Impact Crusher for Gravel Making
1. Big feeding opening, high crushing cavity, used for crushing high hardness and large lump material, and only producing few product powder.
2. Adjustable clearance between impact plate and board hammer can make you effectively control the discharging size and particle shape of products.
3. Equipped with shock-resistance and wear-resistance high-chromium board hammer
4. Economic and reliable non-key connection makes maintenance easier;
5. With entire crushing function, high productivity, parts with less abrasion.
6. Cubic shape of the products
Specification of Our Stone Impact Crusher for Gravel Making
Model |
Max Feed Edge(mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Dimensions (L×W×H) (mm |
PF-1007 |
300 |
30-70 |
45 |
12 |
2330×1660×2300 |
PF-1010 |
350 |
50-90 |
55 |
15 |
2370×1700×2390 |
PF-1210 |
350 |
70-130 |
110 |
17.7 |
2680×2160×2800 |
PF-1214 |
350 |
100-180 |
132 |
22.4 |
2650×2460×2800 |
PF-1315 |
500 |
130-250 |
220 |
27 |
3180×2720×2620 |
| |||||
