2012 CN Impact River Stone Crusher

Specifications

River Stone Crusher
1.High-chromium board hammer
2.Rotor with big moment of inertia
3.Hig crushing ratio

2012 CN Impact River Stone Crusher

Application of River Stone Crusher
Crushing Machine, a type of impact crusher is widely used in secondary crushing in hydropower, highway, artificial aggregate, crushing industries etc. It is applied to crushing materials whose length of side is less than 500mm and the compression strength is less than 350 MPa. The discharging size can be adjusted by regulating the clearance between hammer head, impact plate and balanced parts.

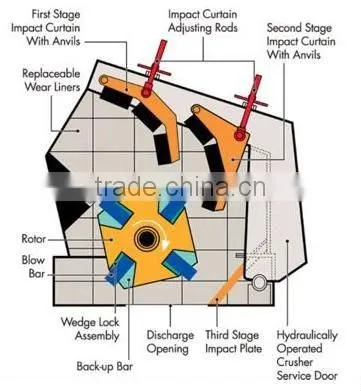

Working Principle of River Stone Crusher
Impact crusher 's electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.

Advantages of River Stone Crusher

1. Big feeding opening, high crushing cavity, used for crushing high hardness and large lump material, producing less product powder.

2. Adjustable clearance between impact plate and board hammer can effectively control the discharging size and particle shape of products.

3. With compact structure, high rigidity, rotor with big moment of inertia.

4. Equipped with shock-resistance and wear-resistance high-chromium board hammer

5. Economic and reliable non-key connection makes maintenance easier;

6. With entire crushing function, high productivity, parts with less abrasion.

7. Cubic shape of the products





Specification of River Stone Crusher

Model	Max Feed Edge(mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Dimensions (L×W×H) (mm
PF-1007	300	30-70	45	12	2330×1660×2300
PF-1010	350	50-90	55	15	2370×1700×2390
PF-1210	350	70-130	110	17.7	2680×2160×2800
PF-1214	350	100-180	132	22.4	2650×2460×2800
PF-1315	500	130-250	220	27	3180×2720×2620



Zhengzhou Unique Industrial Equipment Co., Ltd, a reliable and professional supplier of River Stone Crusher
