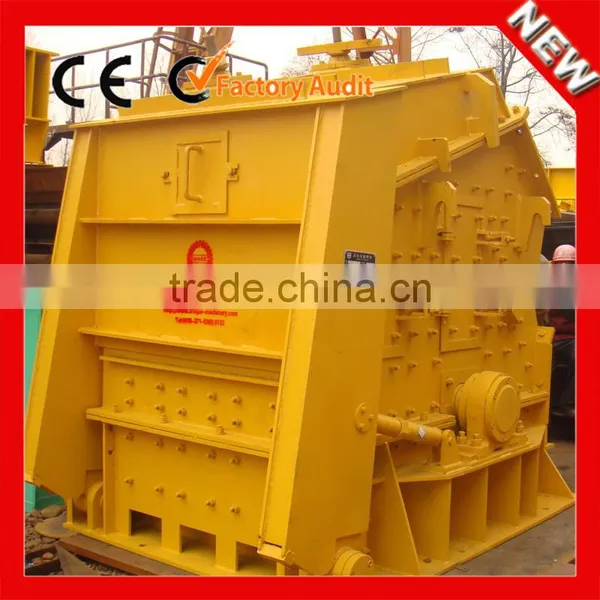

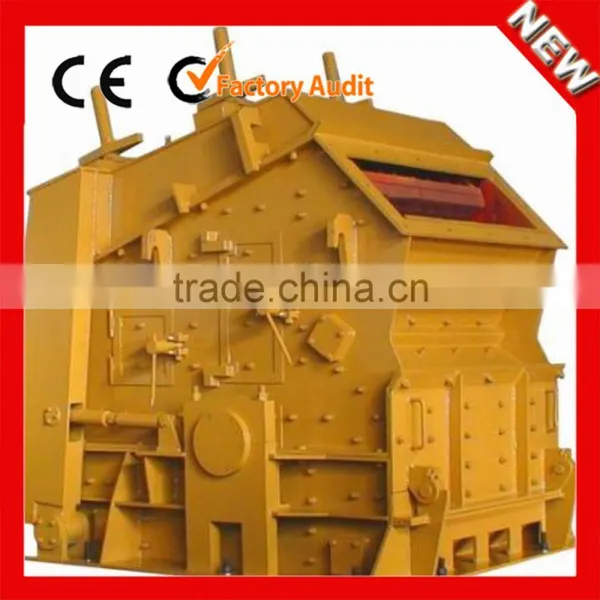

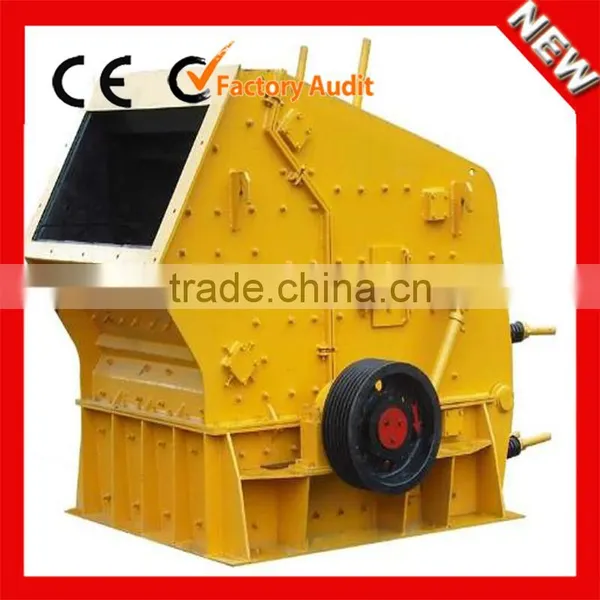

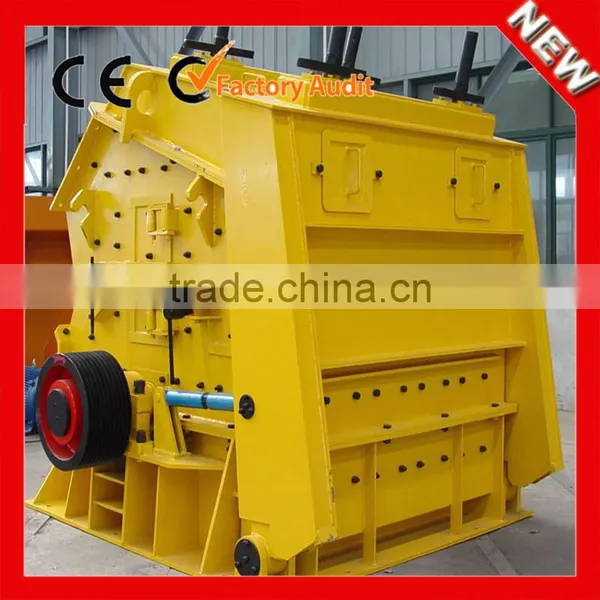

High performance stone crushing plant mini crusher for stone
- 68 Set / Sets per Month
- Shanghai Tianjin Qingdao
- T/T L/C D/P D/A Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Impact Crusher | Application: | Marble, Limestone, Gypsum, etc., Aggregate, granite,etc |
Motor Type: | AC Motor | Power(W): | 110kw mini crusher for stone | Capacity(t/h): | 70-130t/h |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | PF-1210 |
Dimension(L*W*H): | 2680x2160x2800mm | Weight: | 17.7t | Certification: | ISO9001:2008 |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High performance stone crushing plant mini crusher for stone
The Introduction of mini crusher for stone
Impact crusher is mainly used in secondary crushing. It can crush various rocks, high efficiency, easy maintenance, and cubic shape of the products. Impact crusher is widely used in mining, highway, and construction.
Working Principle of mini crusher for stone
The electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
Technical Specification of mini crusher for stone
Model | Max Feed Edge(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) | Dimensions(L×W×H) (mm) |
PF-1007 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
PF-1010 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
PF-1210 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
PF-1214 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
PF-1315 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
PF-1320 | 500 | 200-300 | 260-320 | 3096X3733X2667 | |
PF-1520 | 600 | 310-580 | 315-400 | 3580X3788X3087 | |
PF-1820 | 1000 | 500-800 | 630-800 | 4770X4340X4850 | |
PF-2022 | 1500 | 500-1200 | 800-1000 | 5350X5150X5460 | |
OPF-2025 | 1500 | 1100-1400 | 1250-1400 | 5400X5450X5460 |
Packaging--- mini crusher for stone
Usually heavy equipment like jaw crusher is of nude package. The electrical motor or spare parts like jaw plate will be packed by wooden case or steel frame.
Shipping--- mini crusher for stone
Small model jaw crusher by LCL, medium to big models jaw crusher by standard container or bulk ship.
Zhengzhou Unique Industrial Equipment Co., Ltd. dedicated to producing Mining machinery for many years, is not only a professional manufacturer of mining equipment in the R&D manufacture, but also a leader manufacturer of mining equipment and distribution of Mining Machinery in China. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.
Our Advantages--- mini crusher for stone
A.We have over 20 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
Customer visit
Q1.Can I visit your factory?
Yes, Many domestic and international customers visit our factory every year
Q2.Do you supply spare parts and after-sale service?
Yes, we supply and we havea professional after-sale service team to promptly and thoroughly solve your problems.
Q3.Do you provide beneficiation flow chart?
Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4.Can you test our samples?
Yes. You can send your samples to us for test and analysis.
Q5. Have you made the whole ore dressing lines?
Yes. We have made several large ore dressing lines at home and abroad.
We are professional mining machinery manufacturer specialized in crushing plant, sand making plant, grinding plant,ore-dressing plant, cement production line.
In order to recommend suitable design for you, please kindly tell me:
1. What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
Impact crusher is suitable as secondary crusher for soft stone, while cone crusher is suitable as secondary crusher for hard stone.
2. What is the maximum feed size of your raw material?
3. What are output sizes you want?
Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm
4. What is capacity you want? How many ton per hour?
Please trust us, the products provided by our factory will make us reach a long-term relationship.
