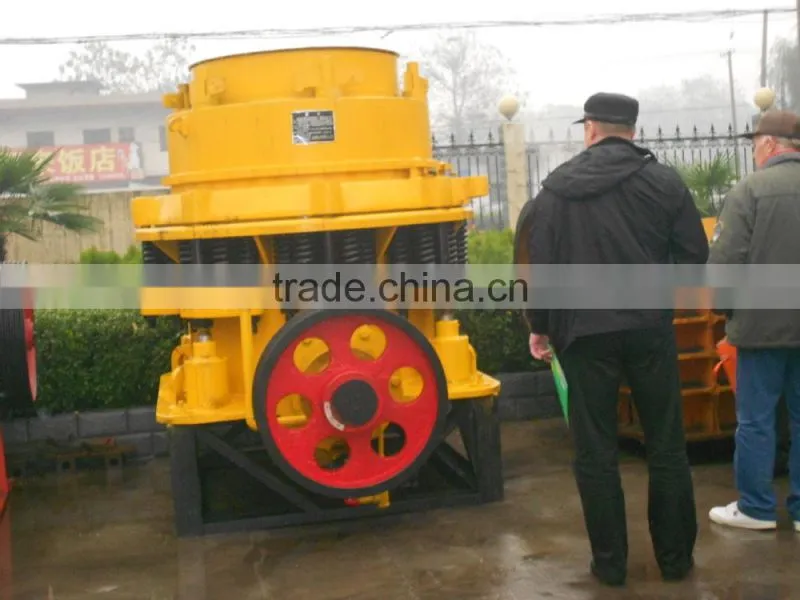

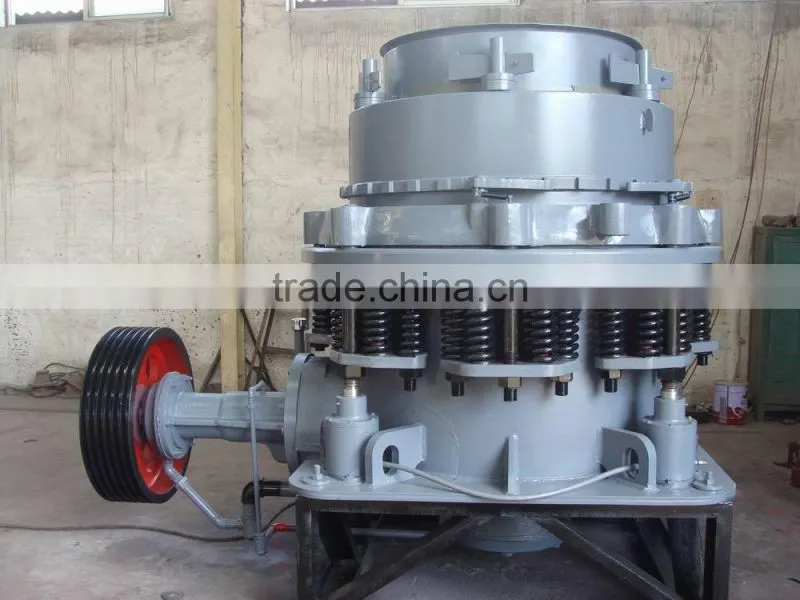

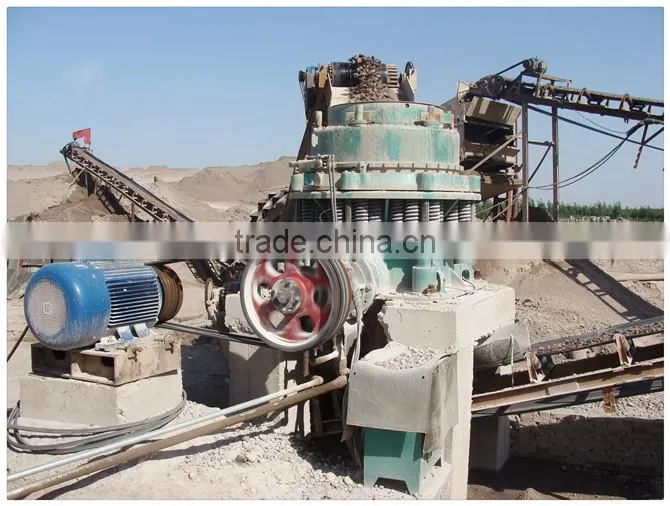

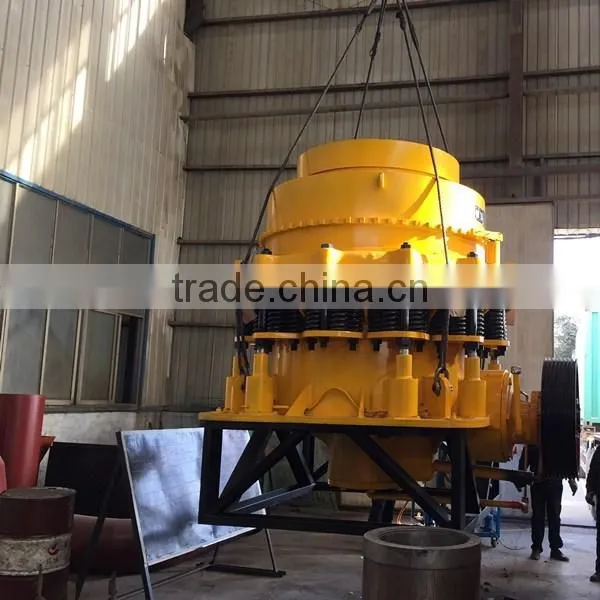

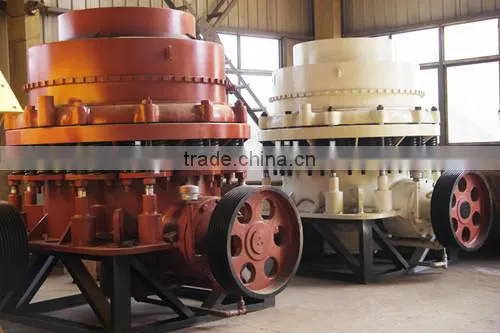

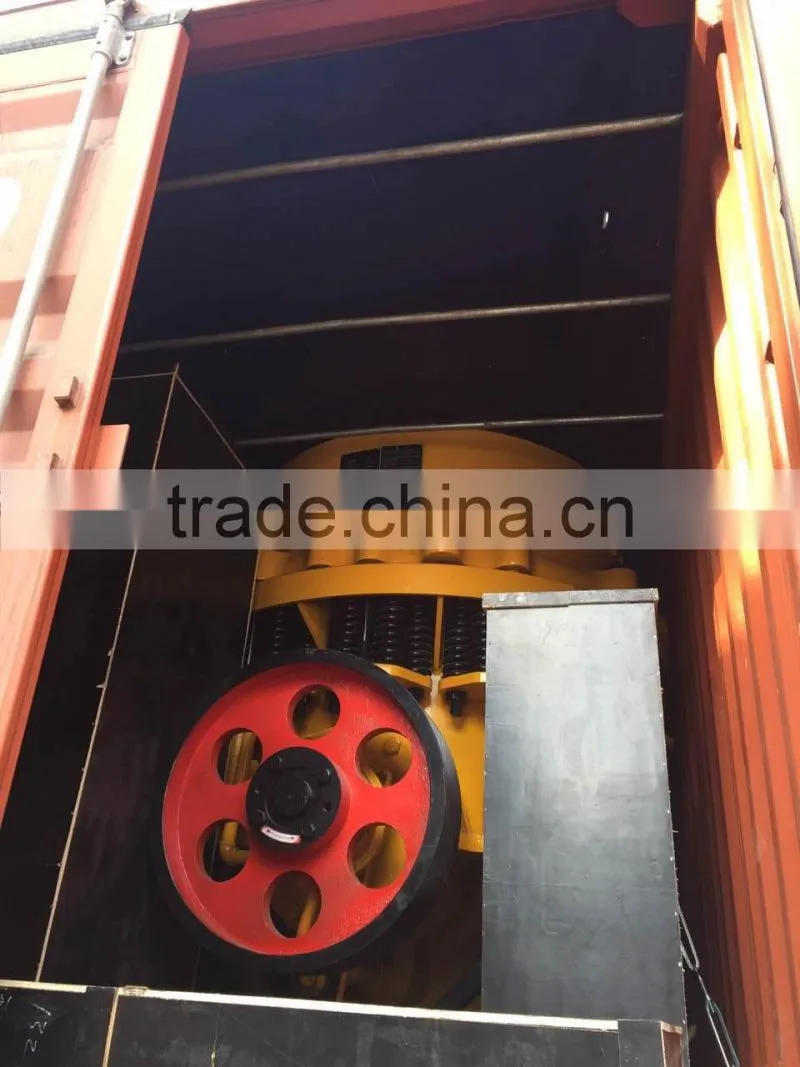

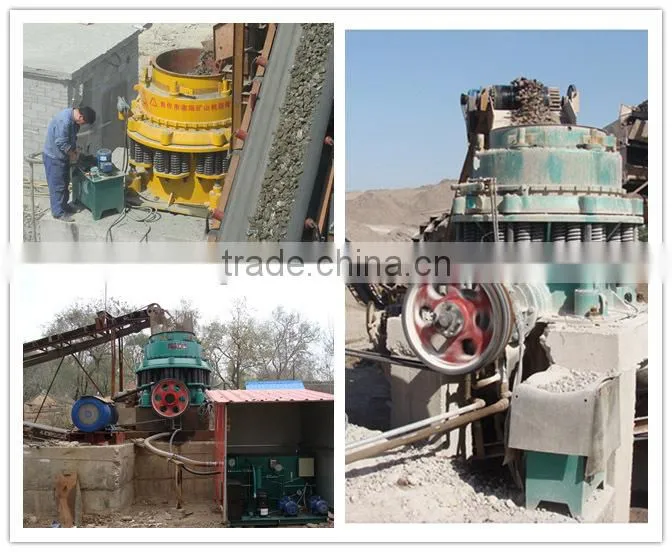

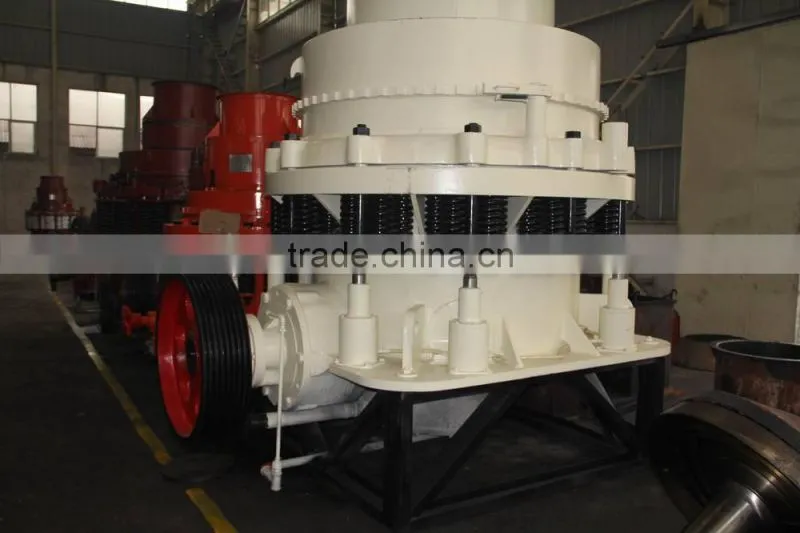

2016 UNIQUE 4.25ft Hydraulic Symons Cone Crusher Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
aggregate production, ore crushing
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Unique PYZ 900 Spring Cone CrusherUS$ 30,000 - 100,000MOQ: 1 Set -
Unique PYZ1200 Spring Cone CrusherUS$ 30,000 - 100,000MOQ: 1 Set
-
2014 Hot Sale Cobblestone Cone CrusherUS$ 6,000 - 100,000MOQ: 1 Set
-
Good Quality Symons Cone Crusher ExporterUS$ 3,999 - 69,999MOQ: 1 Set
-
Quarry Equipment Cone Crusher PYB900NegotiableMOQ: 1 Set
Condition
New
Type
Cone Crusher
Application
aggregate production, ore crushing
Motor Type
AC Motor
Power(W)
30~400KW
Capacity(t/h)
15~1000
Place of Origin
Henan, China
Brand Name
UNIQUE
Model Number
PSG series
Dimension(L*W*H)
as per model
Weight
as per model
Certification
ISO
Warranty
15 months
After-sales Service Provided
Engineers available to service machinery overseas
Small Symons Cone Crusher, 3ft / 4.25ft cone crusher, Hydraulic & Spring Cone Crusher, Hard Rock Crusher2016 UNIQUE 4.25ft Hydraulic Symons Cone Crusher Machine
Advantages
1. high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.
2. Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania etc.
3. It is made of high quality raw material and has reasonable structure design. So it has longer running performance and even granularity.
4. The middle and large size symons cone crusher adopts hydraulic clear chamber. That reduces its down time.
Application
It is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. Symons cone crusheris suitable for crushing all kinds of ores and rocks with hardness of medium or above.
Specifications of different models
| specifications | style | chamber type | broken cone main diameter(mm) | Adjustable Range of Output Size(mm) | mouth edge feeding size in the min recommended discharging port(mm) | max feeding size(mm) | capacity(t/h) | motor power(kw) | weight(kg) | overall dimension(L×W×H)(mm) |
| 900 | PSGB-0910 | standard thin | 914 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PSGB-0917 | standard thick | 13-38 | 1775 | 150 | 59-163 | |||||
| PSGB-0918 | standard thicker | 25-38 | 178 | 150 | 118-163 | |||||
| PSGD-0904 | Short head thin | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PSGD-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
| PSGD-0907 | Short head thick | 6-19 | 102 | 85 | 59-129 | |||||
| 1300 | PSGB-1313 | standard thin | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PSGB-1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
| PSGB-1324 | standard thick | 19-51 | 241 | 205 | 172-349 | |||||
| PSGB-1325 | standard thicker | 25-51 | 259 | 220 | 236-358 | |||||
| PSGD-1306 | Short head thin | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
| PSGD-1310 | Short head thick | 8-25 | 105 | 89 | 109-227 | |||||
| PSGD-1313 | Short head thicker | 16-25 | 133 | 113 | 209-236 | |||||
| 1600 | PSGB-1620 | standard thin | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
| PSGB-1624 | Standard medium | 22-51 | 241 | 205 | 258-417 | |||||
| PSGB-1626 | standard thick | 25-64 | 269 | 228 | 299-635 | |||||
| PSGB-1636 | standard thicker | 38-64 | 368 | 313 | 431-630 | |||||
| PSGD-1607 | Short head thin | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 | |||||
| PSGD-1613 | Short head thick | 10-25 | 133 | 113 | 190-336 | |||||
| PSGD-1614 | Short head thicker | 13-25 | 133 | 113 | 253-336 |
