2016 dolerite stone crushing production line for Africa

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai etc
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cone Crusher
Application	aggregate production, ore crushing	Motor Type	AC Motor
Power(W)	30~400KW	Capacity(t/h)	15~1000
Place of Origin	Henan, China	Brand Name	UNIQUE
Model Number	PSG series	Dimension(LWH)	as per model
Weight	as per model	Certification	ISO
Warranty	15 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

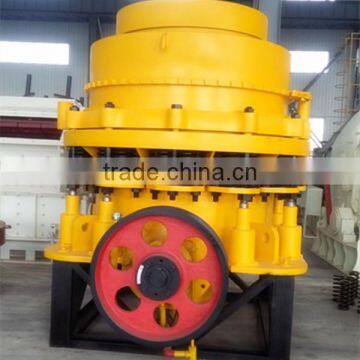

Small Symons Cone Crusher, 3ft / 4.25ft cone crusher, Hydraulic & Spring Cone Crusher, Hard Rock Crusher

2016 dolerite stone crushing production line for Africa

2016 dolerite stone crushing production line for Africa

Advantages

1. high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.

2. Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania etc.

3. It is made of high quality raw material and has reasonable structure design. So it has longer running performance and even granularity.

4. The middle and large size symons cone crusher adopts hydraulic clear chamber. That reduces its down time.

Application

It is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. Symons cone crusheris suitable for crushing all kinds of ores and rocks with hardness of medium or above.

Specifications of different models

specifications	style	chamber type	broken cone main diameter(mm)	Adjustable Range of Output Size(mm)	mouth edge feeding size in the min recommended discharging port(mm)	max feeding size(mm)	capacity(t/h)	motor power(kw)	weight(kg)	overall dimension(L×W×H)(mm)
900	PSGB-0910	standard thin	914	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB-0917	standard thick		13-38	1775	150	59-163
	PSGB-0918	standard thicker		25-38	178	150	118-163
	PSGD-0904	Short head thin		3-13	41	35	27-90		10530
	PSGD-0906	Short head medium		3-16	76	65	27-100
	PSGD-0907	Short head thick		6-19	102	85	59-129
1300	PSGB-1313	standard thin	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB-1321	Standard medium		16-38	210	178	132-253
	PSGB-1324	standard thick		19-51	241	205	172-349
	PSGB-1325	standard thicker		25-51	259	220	236-358
	PSGD-1306	Short head thin		3-16	64	54	36-163		22590
	PSGD-1308	Short head medium		6-16	89	76	82-163
	PSGD-1310	Short head thick		8-25	105	89	109-227
	PSGD-1313	Short head thicker		16-25	133	113	209-236
1600	PSGB-1620	standard thin	1676	16-38	209	178	181-327	220	43270	3941×2954×3771
	PSGB-1624	Standard medium		22-51	241	205	258-417
	PSGB-1626	standard thick		25-64	269	228	299-635
	PSGB-1636	standard thicker		38-64	368	313	431-630
	PSGD-1607	Short head thin		5-13	70	60	90-209		43870
	PSGD-1608	Short head medium		6-19	89	76	136-281
	PSGD-1613	Short head thick		10-25	133	113	190-336
	PSGD-1614	Short head thicker		13-25	133	113	253-336

Customer's inspection to ordered goods
