Home > Products > Cone Crusher > High Performance Diesel Jaw Crusher with Small Discharge Size for Sale

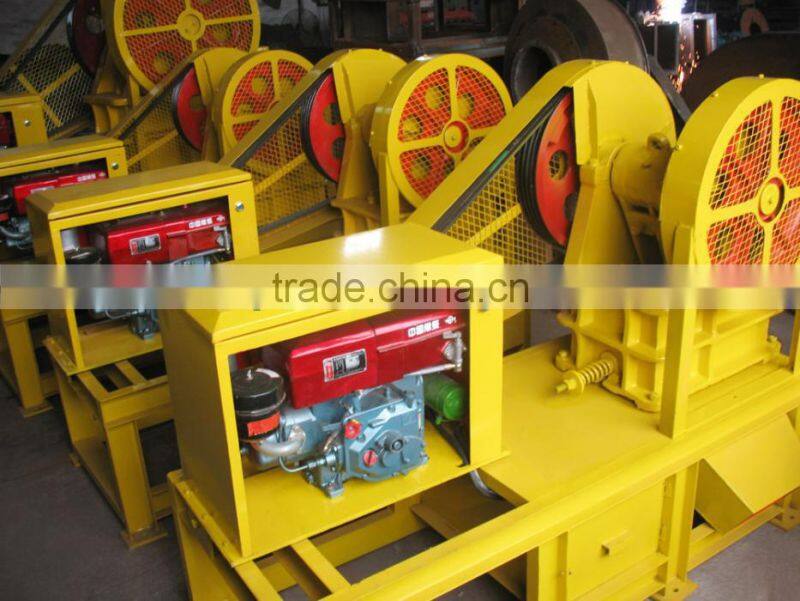

High Performance Diesel Jaw Crusher with Small Discharge Size for Sale
- Qingdao Shanghai etc.
- T/T
You May Like
-
China good price 200tph hard rock Symons cone crusher for sale
-
heavy duty very hard stone hydraulic cone crusher with good price
-
New Type Diesel Jaw Crusher with Engineer Service for Sale
-
High Productivity Cone Crusher with Even Product Size for Sale
-
China big production capacity spring cone crusher for cement plant
-
2016 good pricing China stone sand quarry cone crusher
Product Details
| Condition | New | Type | Cone Crusher | |
| Application | Mining | Motor Type | AC Motor | |
| Power(W) | 75kw | Capacity(t/h) | 118-163tph | |
| Place of Origin | Henan, China | Brand Name | UNIQUE | |
| Model Number | PSGB | Dimension(L*W*H) | 2656x1636x2241 | |
| Weight | 9980kg | Certification | ISO CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Performance Diesel Jaw Crusher with Small Discharge Size for Sale
Introduction of Symons Cone Crusher:
The cone crusher of PSG series is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above. The crusher has the feature of high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation. The quality of material use for components and reasonable design of construction contributes to its longer running performance and even granularity of the crushed product in order to reduce the circulation load. Furthermore, by introducing the hydraulic clear chamber into the crusher of middle and large size, the down time is reduced accordingly. The customers can choose different type of chamber upon different request freely, because the wide ranges of products are provided.
Working Principle:
When it is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Type | Model
| Chamber Type
| Broken Cone Main Dia.
| Adjustable Range of Output Size
| Mouth Edge Feeding Size in the Min Recommended Discharging port
| Max Feeding Size
| Capacity
| Motor Power
| Weight
| Overall Dimension
|
900 | PSGB-0910 | Standard Thin
| 914 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
PSGB-0917 | Standard Thick
| 13-38 | 1775 | 150 | 59-163 | |||||
PSGB-0918 | Standard Thicker
| 25-38 | 178 | 150 | 118-163 | |||||
PSGB-0904 | Short Head Thin
| 3-13 | 41 | 35 | 27-90 | 10530 | ||||
PSGB-0906 | Short Head Medium
| 3-16 | 76 | 65 | 27-100 | |||||
PSGB-0907 | Short Head Thick
| 6-19 | 102 | 85 | 59-129 | |||||
1300 | PSGB-1313 | Standard Thin
| 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
PSGB-1321 | Standard Medium
| 16-38 | 210 | 178 | 132-253 | |||||
PSGB-1324 | Standard Thick
| 19-51 | 241 | 205 | 172-349 | |||||
PSGB-1325 | Standard Thicker
| 25-51 | 259 | 220 | 236-358 | |||||
PSGD-1306 | Short Head Thin
| 3-16 | 64 | 54 | 36-163 | 22590 | ||||
PSGD-1308 | Short Head Medium
| 6-16 | 89 | 76 | 82-163 | |||||
PSGD-1310 | Short Head Thick
| 8-25 | 105 | 89 | 109-227 | |||||
PSGD-1313 | Short Head Thicker
| 16-25 | 133 | 113 | 209-236 | |||||
1600 | PSGB-1620 | Standard Thin
| 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
PSGB-1624 | Standard Medium
| 22-51 | 241 | 205 | 258-417 | |||||
PSGB-1626 | Standard Thick
| 25-64 | 269 | 228 | 299-635 | |||||
PSGB-1636 | Standard Thicker
| 38-64 | 368 | 313 | 431-630 | |||||
PSGD-1607 | Short Head Thin
| 5-13 | 70 | 60 | 90-209 | 43870 | ||||
PSGD-1608 | Short Head Medium
| 6-19 | 89 | 76 | 136-281 | |||||
PSGD-1613 | Short Head Thick
| 10-25 | 133 | 113 | 190-336 | |||||
PSGD-1614 | Short Head Thicker
| 13-25 | 133 | 113 | 253-336 |
Zhengzhou Unique Industrial Equipment Co., Ltd. provides complete pre-sales and after sales support both home and abroad for our customers across all products lines through a comprehensive, multilingual technical support service.
Zhengzhou Unique Industrial Equipment Co., Ltd. dedicated to producing Mining machinery for many years, is not only a professional manufacturer of mining equipment in the R&D manufacture, but also a leader manufacturer of mining equipment and distribution of Mining Machinery in China. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.
Q1.Can I visit your factory?
Yes, Many domestic and international customers visit our factory every year
Q2.Do you supply spare parts and after-sale service?
Yes, we supply and we havea professional after-sale service team to promptly and thoroughly solve your problems.
Q3.Do you provide beneficiation flow chart?
Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4.Can you test our samples?
Yes. You can send your samples to us for test and analysis.
Q5. Have you made the whole ore dressing lines?
Yes. We have made several large ore dressing lines at home and abroad.
Our Advantages---
A.We have over 20 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
