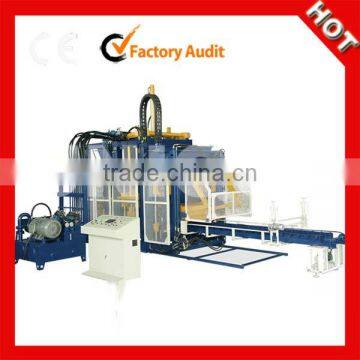

Uesd Widely QT10-15 Cement Brick Making Machine For Sale
- 2000 Set / Sets per Month
- Qingdao
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | QT10-15 |
Power: | 36kw | Dimension(L*W*H): | 8200*2000*2950(mm) | Certification: | ISO |
Warranty: | More than one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
QT10-15 Cement Brick Making Machine For Sale1.Perfect humanization electrical control system
2.Hydraulic System
Descriptions of QT10-15 Cement Brick Making Machine For Sale :
“QT” in QT 10-15 is given by Chinese government that all of the Concrete Block machine must use this Series Number.
“10” in QT10-15 stands for the production quantity is 10 blocks "390×190×190mm" per mould,
“15” in QT10-15 stands for one cycle time is 15 seconds.
Since the moulds are changeable, the concrete equipment is able to produce different types of blocks/bricks, and this is a hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.
The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with a steady year turnover and with a certain number casher to make the factory running.

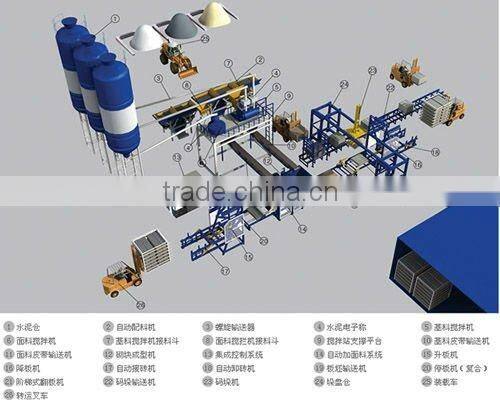

This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 20 to 50 employees would keep this factory running at full capacity.
QT 10-15 Model Specification
Hollow Block Capacity(390×190×190mm) | 10/module |
Solid Brick Capacity(240×115×53mm) | 54/module |
Holland Brick Capacity(240×115×90mm) | 27/module |
Main Dimension(L×W×H) | 8200×2000×2950(mm) |
Pallet Size(L×W×H) | 1150×840×40(mm) |
Pressure Rating | 12~25Mpa |
Vibration | 50~90KN |
Vibration Frequency | 2900~5600r/min |
Cycle Time | 15-20(s) |
Power(Total) | 36kw |
Weight | 11000kg |
Hollow Block Capacity(390×190×190mm) | 14400-19200/8hours |
Solid Brick Capacity(240×115×53mm) | 73440-97920/8hours |
Holland Brick Capacity(200×100×60mm) | 34560-46086/8hours |
Optional Parts:
1. Skip type concrete mixer……………………. Model JS750
2. Mould: we can manufacture the a certain special mould for you accordingly .
3. Double layer Color-face device.
Advantages Of QT Series Automatic Block Making Machine:
1. Perfect humanization Electrical control system
Siemens PLC with Visualization touch screen provide you a Child operation machine.
2. Frequency Conversional Control Technology:
It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;
3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
5. Various product scope:
It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
