Specifications
JS750 Charge Concrete Mixer:1.High efficiency
2.Easy to maintain and replace
3.Good homogeneity
4.Twin shaft mixer

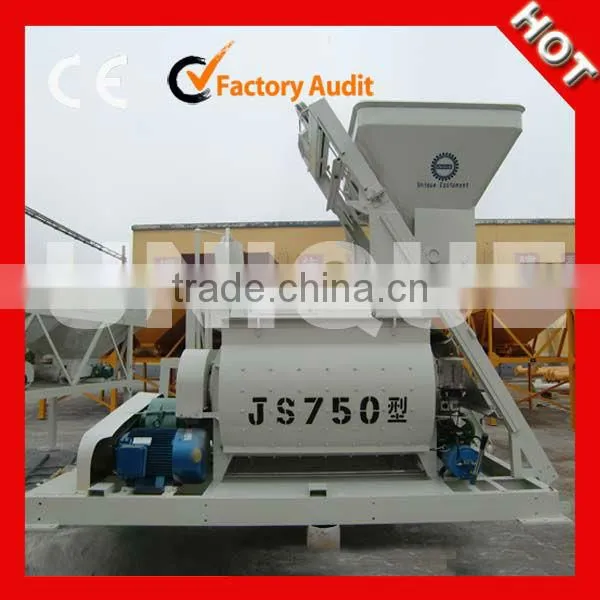

JS750 Charge Concrete Mixer
Description of JS750 Charge Concrete Mixer :
JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.
Features of JS750 Charge Concrete Mixer :
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Application of JS750 Charge Concrete Mixer :
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
Technical Specification of JS750 Charge Concrete Mixer :
Model: JS750
Discharge volume: 750L
Charging volume: 1200L
Theoretical capacity: ≥35m3
Aggregate sizes: ≤60/80m
Working circle: 60s

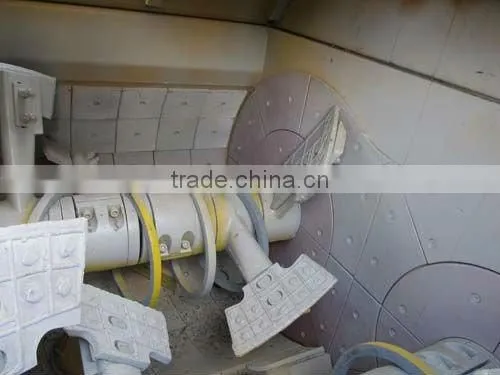

Mixing blade
Speed: 30.5r/min
Quantity: 2×8
Mixing motor
Model: Y200L-4
Power: 30 kw
Lifting motor
Model: YEZ132M-4
Power: 7.5 kw
Pump motor
Model: 65DWB35-5
Power: 1.1 kw
Weight: 6150kg
Dimensions (L x W x H): 4550x2250x2450 mm
Parameter Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Item | |||||
Discharge volume |
500L |
750L |
1000L |
1500L |
|
Charging volume |
800L |
1200L |
1600L |
2400L |
|
Theoretical capacity |
≥25m3 |
≥35m3 |
≥50m3 |
≥75m3 |
|
Aggregate sizes |
≤60/80mm |
≤60/80m |
≤60/80mm |
≤60/80mm |
|
Working circle |
60s |
60s |
60s |
60s |
|
Mixing blade |
Speed |
35r/min |
30.5r/min |
25.5r/min |
23r/min |
Quantity |
2×7 |
2×8 |
2×8 |
2×9 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y225S-4 |
Y225M-4 |
Power |
18.5 kw |
30 kw |
37 kw |
45 kw |
|
Lifting motor |
Model |
YEZ132S-4 |
YEZ132M-4 |
YEZ160L-4 |
YZE180M-4 |
Power |
5.5 kw |
7.5 kw |
11 kw |
18.5 kw |
|
Pump motor |
Model |
50DWB20-8A |
65DWB35-5 |
KQW65-100 |
KQW65-100 |
Power |
0.75 kw |
1.1 kw |
3 kw |
3 kw |
|
Weight |
1500kg |
6150kg |
9880kg |
10960kg |
|
Dimensions (L x W x H) |
3030x2300x2680 mm |
4550x2250x2450 mm |
4640x2250x2250 mm |
5058x2250x2440 mm |
|
