Help CenterHot Sale 60m3/h Batching Plant UTM60 Mobile Concrete Plant
Related Products
-
High Quality JH50-21 Mini Concrete Pump TruckNegotiableMOQ: 1 Set -
Good Design JN250 Stand Concrete MixerNegotiableMOQ: 1 Set
-
Famous HZS60 Electric Mobile Concrete Batching PlantNegotiableMOQ: 1 Set
-
Charge Volume 1200L JS750 Concrete MixerNegotiableMOQ: 1 Set
-
2013 JS1000 Concrete Mixer Discharge Capacity 1000LNegotiableMOQ: 1 Set
Specifications
UTM60 60m3/h Batching Plant:1.High automatical degree
2.Accurate weighing
3.Excellent environment
UTM-60 60m3/h Batching Plant
Descriptions of UTM-60 60m3/h Batching Plant :
The modular design of without foundation and commissioning enables the modular mobile concrete mixing plant convenient movement and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. It is an ideal choice for engineering.
General Information of UTM-60 60m3/h Batching Plant :
Capacity: 60 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 90kw
Total Weight: 20 Ton
Total Dimensions: 17500×4150×8100 mm
Transportation: Truck Trailer
Technical Information of UTm-60 60m3/h Batching Plant
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
Volume: 1600 L
Capacity: 1000 L
Paddle quantity: 16 pieces
Paddle Speed: 25..5 r/min
Mixing Motor: 37kw
2. AGGREGATE SYSTEM

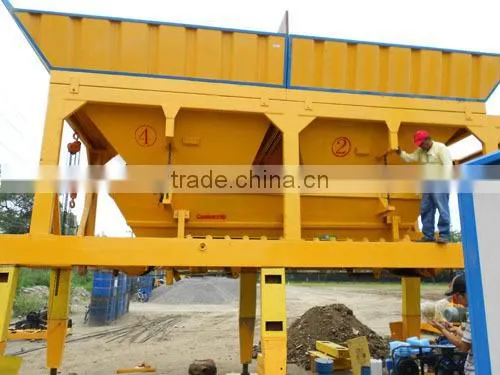

2.1Aggregate Batcher PLD1600
Volume: 4×8m3=32
Sort of aggregate: 4
Capacity: 80m3/h
Power: 11kw
Sand vibrator: 0.37kw×2
2.2. Aggregate Belt Conveyor 1 unit
Width: 800 mm
Length: 18456mm
Speed: 1.6 m/s
Motor: 7.5 kw
3. CEMENT SYSTEM
3.1 Cement Silo 2 units
Capacity: 50 Ton×2=100 Ton
Silo Diameter: Φ2800
3.2 Cement Screw Feeder 2 units
Diameter: Φ219 mm
Length: 9 m
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Submersible pump: 3kw
Water pump: 0.75kw
Water tank: 3 m3
6. AIR SYSTEM
Air Compressor: 1 unit
Power: 7.5kw
Pressure: 0.7Mpa
Airflew: 0.8 m3/min
7. WEIGHING SYSTEM:
7.1 Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
7.2 Cement weighing 1 unit
Weighing Capacity: 1m3
Precision: ±1%
7.3 Water Weighing 1 unit
Weighing Capacity: 150 kg
Precision: ±1%
7.4 Additive Weighing 1 unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM:
PLC command and control operation
Main electrical components : Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable
Item | UTM-100 | UTM-80 | UTM-60 | UTM-40 |
Parameter Model | ||||
Capacity | 100m3/h | 80m3/h | 60 m3/h | 40 m3/h |
Mixing Time | 60 S | 60 S | 60 S | 60 S |
Max Aggregate Size | 60/80 mm | 60/80 mm | 60/80 mm | 60/80 mm |
Discharging Height | 3800 mm | 3800 mm | 3800 mm | 3800 mm |
Total Power | 120 kw | 110kw | 90kw | 75kw |
Total Weight | 35 Ton | 32 Ton | 20 Ton | 17 Ton |
Transportation | Truck Trailer | Truck Trailer | Truck Trailer | Truck Trailer |
