Popular JN1000 Price Of Planetary Concrete Mixer

Specifications

JN1000 Price Of Planetary Concrete Mixer

Applications of JN1000 Price Of Planetary Concrete Mixer :

Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.

Features of JN1000  Price Of Planetary Concrete Mixer :

1. Steady Driving.

The power transmission is realized by a hard surface gearbox

2. High Mixing Efficiency.

The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.

3. Homogeneous Mixing.

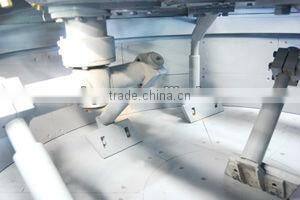

Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades’ motion track covers the whole drum after a cycle.

4. Multiple Discharging Method.

According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.

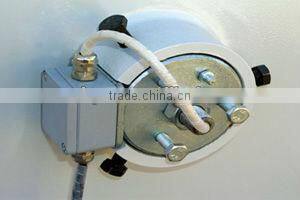

5. Special Designed Water Sprayer

Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.

6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. It’s convenient for maintenance and there is no leakage problem at the shaft end.

Main Technical Parameters of JN1000  Price Of Planetary Concrete Mixer :

Model: JN1000

Discharging Volume: 1000L

Charging Volume: 1500L

Diameter of Mixing Drum: 2400mm

Total Weight: 6000kg

Mixing Power: 37kw

Discharging Power: 3kw
