High Quality HZS60 Concrete Mixing And Batching Plants

Specifications

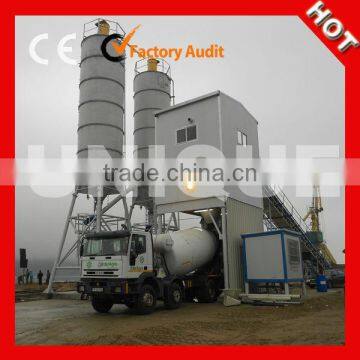

HZS60 Concrete Mixing And Batching Plants

Description of Concrete Mixing And Batching Plants:
HZS series of Concrete Batching Plants is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard,  as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

Features of   Concrete Mixing And Batching Plants :
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.

Application of  Concrete Mixing And Batching Plants :
Available for many applications, this stationary concrete batching plant is widely used for water conservancy, electric power, railroad,  road,  tunnel, the arch of bridge, harbor-wharf and the national defense-project etc..

Technical Parameters of HZS60  Concrete Mixing And Batching Plants :

Capacity: 60 m³/h
Mixing Time: 60S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 80KW
Total Weight: 50Ton
Total Dimensions: 25000×10000×19400 mm

1. MIXING SYSTEM

Twin Shaft Concrete Mixer: JS1000

Volume: 1600L

Capacity: 1000L

Mixing blade: 2×8 pcs

Mixing Speed:  25.5 r.min

Mixer Motor: 37kw

Weight: 9880kg

Dimensions: 4640×2250×2250mm

2. AGGREGATE SYSTEM

2.1 Aggregate batcher: PLD2400

Volume: 4×12 m³

Capacity: 144 m³/h

Power: 11kw

Weight: 7610 kg

Dimension: 10120×3320×3820mm

2.2 Aggregate Belt Conveyor 1 unit

Width: 800 mm

Speed: 1.6 m/s

Power of Motor: 11kw

3.CEMENT SYSTEM (OPTIONAL)

3.1 Cement silo 2units

Capacity: 100t×2=100t

Silo Diameter: Φ3000

3.2 Cement Screw Feeder  2units

Diameter: Φ219mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m³

Pneumatic Valve: Φ50 mm

Pump: 3kw

5.WATER SYSTEM

Motor Power: 3kw

Butterfly Valve: Φ150 mm

Capacity: 80m³/h

6.AIR SYSTEM

Air Compressor 1unit

Power: 7.5 kw

Pressure: 1.0 Mpa

Air flew: 1.2 m³/min

7. WEIGHING SYSTEM

7.1 Aggregate Weighing   1unit

Weighing Capacity: 3000kg

Precision: ±1%

7.2 Cement Weighing   1unit

Weighing Capacity: 600kg

Precision: ±1%

 7.3 Water Weighing   1unit

Weighing Capacity: 250 kg

Precision: ±1%

7.4 Additive Weighing: 1unit

Weighing Capacity: 40 kg

Precision: ±1%

8. CONTROL SYSTEM
PLC command and control operation.

Main electrical components: SCHNEIDER or SIMENSE

17’’ colorful computer

Manuel and Auto Control is freely changeable.

Unique is among the top concrete mixing machine producers in the world, with leading capacity positions in virtually all of our key products ready mix concrete plant (like concrete mixers) and concrete machinery. Please feel free to contact us when you need any concrete mixing machine.
