Specifications
JS750 Concrete Mixer Machine With Electric Motor1.High efficiency
2.Easy to maintain
3.Good homogeneity
4.Twin shaft

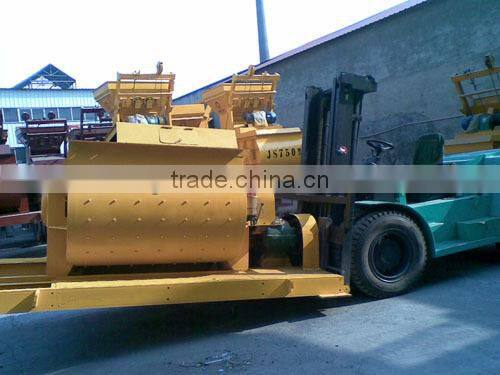

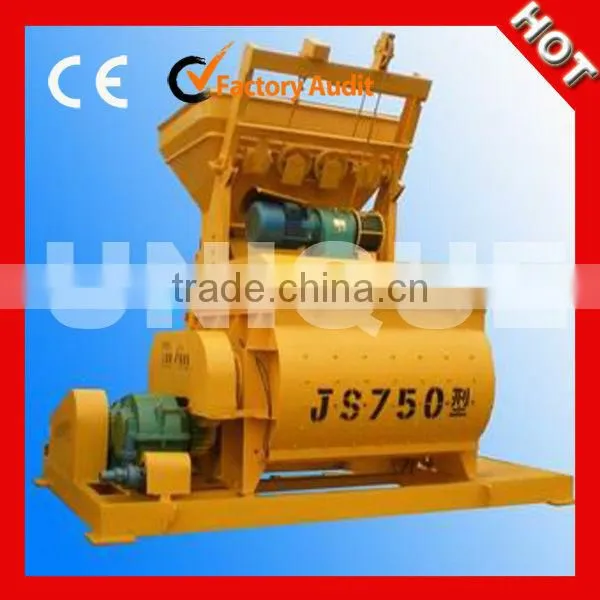

JS750 Concrete Mixer Machine With Electric Motor
Description of JS750 Concrete Mixer Machine With Electric Motor :
JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.
Features of JS750 Concrete Mixer Machine With Electric Motor :
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Application of JS750 Concrete Mixer Machine With Electric Motor :
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.
Technical Specification of JS750 Concrete Mixer Machine With Electric Motor :
Model: JS750
Discharge volume: 750L
Charging volume: 1200L
Theoretical capacity: ≥35m3
Aggregate sizes: ≤60/80m
Working circle: 60s
Mixing blade
Speed: 30.5r/min
Quantity: 2×8
Mixing motor
Model: Y200L-4
Power: 30 kw
Lifting motor
Model: YEZ132M-4
Power: 7.5 kw
Pump motor
Model: 65DWB35-5
Power: 1.1 kw
Weight: 6150kg
Dimensions (L x W x H): 4550x2250x2450 mm
Parameter Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Item | |||||
Discharge volume |
500L |
750L |
1000L |
1500L |
|
Charging volume |
800L |
1200L |
1600L |
2400L |
|
Theoretical capacity |
≥25m3 |
≥35m3 |
≥50m3 |
≥75m3 |
|
Aggregate sizes |
≤60/80mm |
≤60/80m |
≤60/80mm |
≤60/80mm |
|
Working circle |
60s |
60s |
60s |
60s |
|
Mixing blade |
Speed |
35r/min |
30.5r/min |
25.5r/min |
23r/min |
Quantity |
2×7 |
2×8 |
2×8 |
2×9 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y225S-4 |
Y225M-4 |
Power |
18.5 kw |
30 kw |
37 kw |
45 kw |
|
Lifting motor |
Model |
YEZ132S-4 |
YEZ132M-4 |
YEZ160L-4 |
YZE180M-4 |
Power |
5.5 kw |
7.5 kw |
11 kw |
18.5 kw |
|
Pump motor |
Model |
50DWB20-8A |
65DWB35-5 |
KQW65-100 |
KQW65-100 |
Power |
0.75 kw |
1.1 kw |
3 kw |
3 kw |
|
Weight |
1500kg |
6150kg |
9880kg |
10960kg |
|
Dimensions (L x W x H) |
3030x2300x2680 mm |
4550x2250x2450 mm |
4640x2250x2250 mm |
5058x2250x2440 mm |
|
