Specifications
Cement mill is key equipment for the grinding process of the cement clinkerIt is mainly used in the cement silicate product

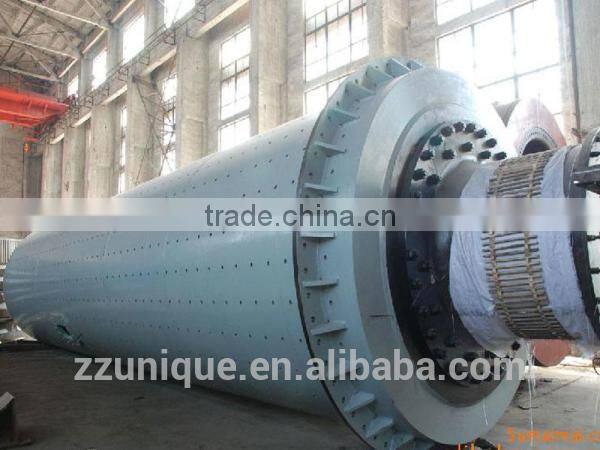

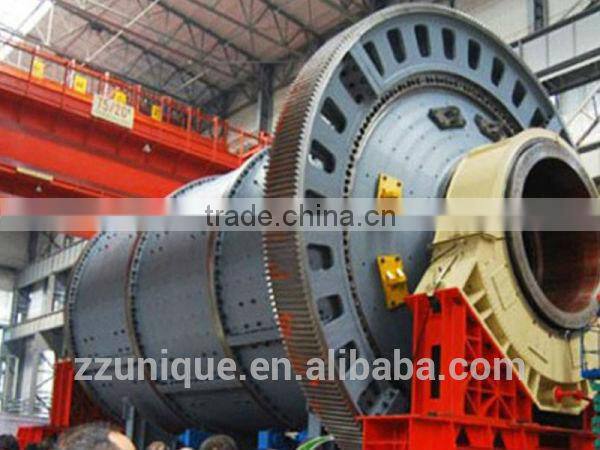

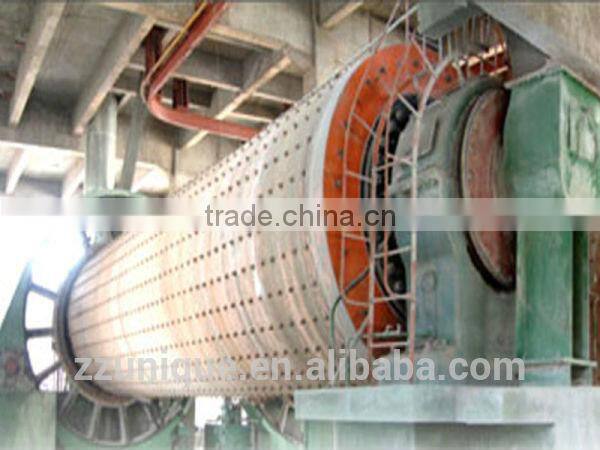

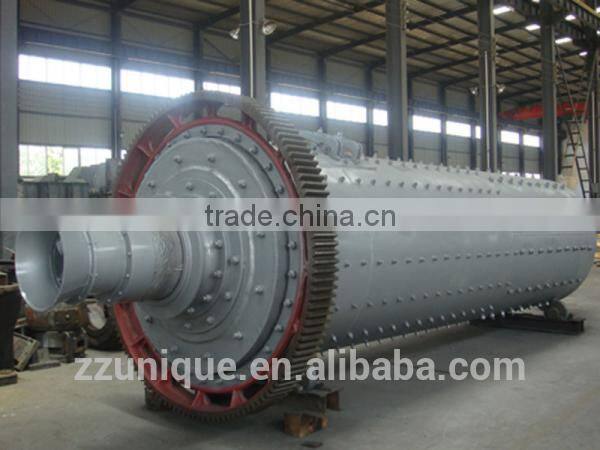

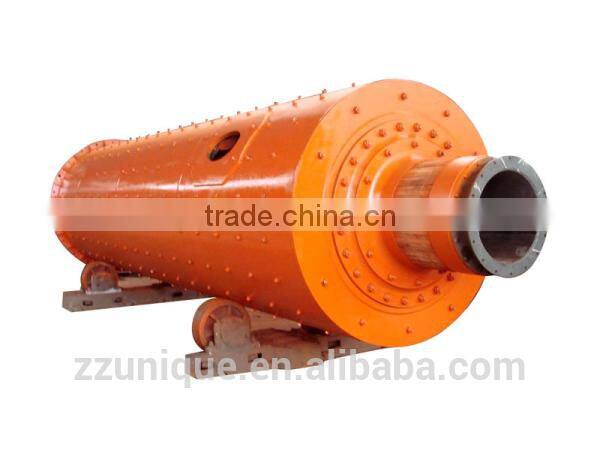

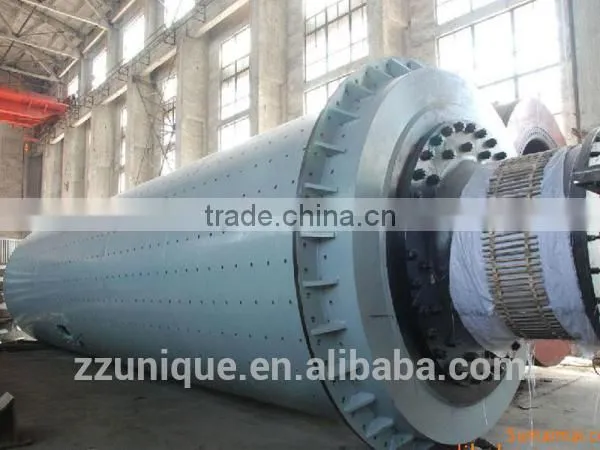

China Unique Cement Grinding Mill for Sale
Introduction of Cement Grinding Mill:
The cement grinding mill is key equipment for the grinding process of the cement clinker after the crushing process of it. It is mainly used in the cement silicate product industry. After long term design and manufacture of the cement mill, our company now has series of cement mill with various specifications to meet with different requirement from our customers.
Features of Cement Grinding Mill:
Our company adopts suitable transmission methods according to different specifications. We have brim drive and center drive as transmission form. The cylinder adopts new type step lining to increase the grinding area. And it is easily repairable and changeable. The new designed separate-chambered structure adopts flexible lifting blade and fixed lifting blade and it is easily fixed and repaired.
Working Principle of Cement Grinding Mill:
The cylinder will rotate by the transmission device. Due to the inertial centrifugal force, the steel balls will stick on the liner plate and rotate with the cylinder together. When the steel balls come to a certain height, it will fall down by gravity and impact the raw material. And the repeated going-up, falling down, slide and roll of the steel balls can grind the raw material together with the liner plates.
Technical parameters
Technical Parameters of Cement Grinding Mill:
Specification (m) | Ball Mill Type | Transmission Type | Reducer | Motor Power(kw) | Capacity (t/h) | Weight (t) | |
Model | Ratio | ||||||
φ1.83×7 | Open flow | Brim | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
φ2.2×7.5 | Circle flow | Brim | ZD70 | 5 | 380 | 8-10 | 64.8 |
φ2.2×11 | Open flow | Central shaft | D110 | 35.5 | 630 | 12-13 | 104.6 |
φ2.2×13 | Open flow | Central shaft | D110 | 35.5 | 630 | 16-18 | 114 |
φ2.4×13 | Open flow | Central shaft | D110 | 35.5 | 800 | 20-23 | 130.6 |
φ2.6×13 | Open flow | Central shaft | MFY100 | 19.5 | 1000 | 28-32 | 158 |
φ3×9 | Circle flow | Brim | D125 | 41.2 | 1000 | 28-36.5 | 167 |
φ3×11 | Circle flow | Central shaft | D140 | 42.8 | 1250 | 36-47 | 180 |
φ3.2×13 | Open flow | Central shaft | D140 | 36.5 | 1600 | 45-50 | 225 |
φ3.5×13 | Circle flow | Brim | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
φ3.8×13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 320 |
φ4.2×13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
φ4.6×14 | Circle flow | Central shaft | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
China Unique Cement grinding Mill for Sale
