KG940A Wagon Drill for Stone Bore Hole

Zhengzhou Unique Industrial Equipment Co., Ltd.
KG940A Wagon Drill for Stone Bore Hole thumbnail-1
KG940A Wagon Drill for Stone Bore Hole photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rotary Drilling Rig, Pneumatic-Hydraulic
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Rotary Drilling Rig, Pneumatic-Hydraulic
Power Type Diesel
Brand Name UNIQUE
Usage Other, blast hole drill
Certification TUVRheinland CE, ISO9001:2008
Warranty More than 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

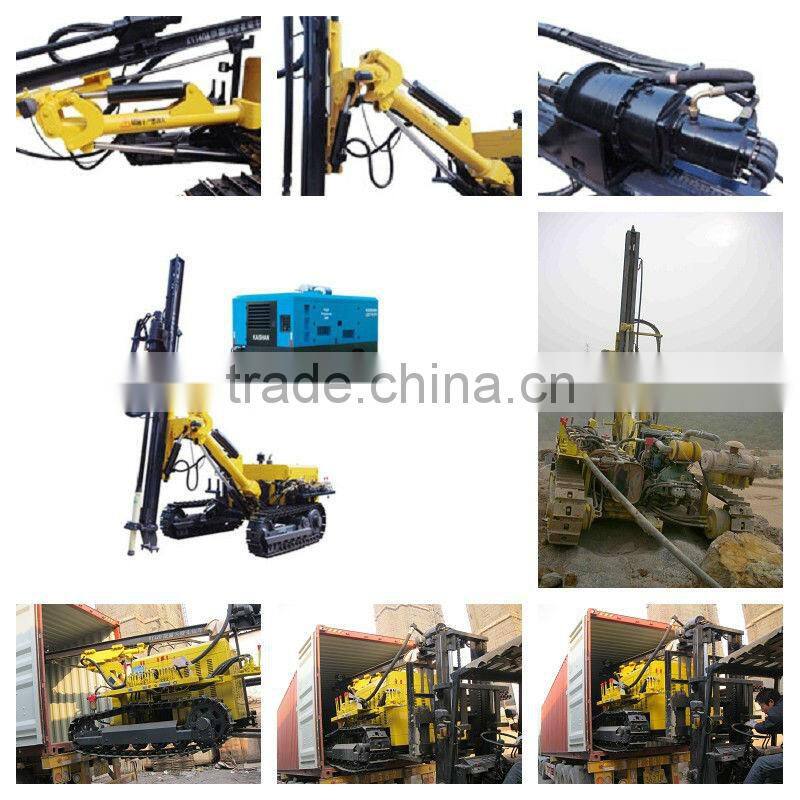

KG940A Wagon Drill for Stone Bore Hole
1.Quick lifting valve group
2. Commins engine
3.Rotation speed:105r/min

KG940A Wagon Drill for Stone Bore Hole

High Wind Pressure Open-Air New Arrivel  Wagon Drill for Stone Bore Hole





KG940A Wagon Drill for Stone Bore Hole

Advantages of KG940A New Arrivel Wagon Drill for Stone Bore Hole

1. Safe and Stable Travelling System
2. Powerful and reliable engine
3. New Drilling boom

Specification of KG940A  New Arrivel Wagon Drill for Stone Bore Hole

Model



Specification



KG940A

Improved by:

KY140

Rock hardness

F=6-20

Hole diameter(mm)

105-165

Drill depth(m)

25

Pressure (Mpa)

1.0-2.4

Air consumption (M3/min)

12-24

Rotating speed (Km/h)

0-63

Lifting capacity (KN)

20

Drill rod specification(mm)

76×3000

/89×3000

Gradeability

30°

Ground

clearance(mm)

320

Walking speed (km/h)

2.0

Drill arm rising angles (°)

-15~+50

Drill arm swing angle (°)

±45

Carriage swing angle(°)

±50

Carriage pitch angle (°)

180

Carriage Compensation(mm)

1200

Overall Dimension

(L*W*H)(mm)

5850×2250

×2020

Total Weight (Kg)

5500

Note:

Pneumatic

-hydraulic





 KG940A Wagon Drill for Stone Bore Hole

Comparsion Between KY140 and  KG940  New Arrivel Wagon Drill for Stone Bore Hole






KY140

KG 940A

Advantages

Drill boom



New type drills boom

Simultaneously drill horizontal hole and vertical hole

Hydraulic system

28.2 pump

32 pump,big diameters, new type valve groups, new type joint.

Flow is increased, resistance is reduced.

Carriage parts

Channel Steel Carriage

thick plate reinforced carriage,

pressing plate

Rigidity is increased,

Abrasion is reduced

Air control system

Ball valve

side valve type c oncussion relief valve

Easy operation

Rotation speed

62 r/min(1700)

71 r/min (diesel engine 1700r/min)

100 r/min(diesel engine 2200 r/min)

Improved by 14%

Advance speed

530mm/s

580mm/s

Improved by 10%







Mobile Screw Air Compressor



Model

Work pressure
(Mpa)

Capacity
(m3/min)

Diesel engine

(hp)

Weight
(kg)

Dimension
(mm)

LGCY-12/10

1.0

12

YuChai
YC6108ZG (110KW) or Cummins
4BTA3.9-C125 (93kw)

3500



3600*1900*2200



LGCY-13/13

1.3

13

Cummins
6BTA5.9-C180 (132kw)

LGCY-15/13

1.5

15

YuChai
YC6A-240-20 or steyr WD415.23

LGCY-18/17

1.7

17

Cummins
6CTA8.3-C260

 KG940A Wagon Drill for Stone Bore Hole



OUR PRODUCT SCOPE:

Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant

Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.

Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill





Zhengzhou Unique Industrial Equipment Co., Ltd,a reliable and professional supplier of Wagon Drill for Grianite Bore Hole
