Help CenterHigh Performance DTH Integral Crawler Drill for Boring Hole
Related Products
-
2015 China Low Price High Quality Rock Drill for QuarryUS$ 4,999 - 5,999MOQ: 1 Set -
China Low Cost Long Sercive Life Portable Wagon Drill KY100 for QuarryUS$ 9,999 - 10,000MOQ: 1 Set
-
China 2015 Popular Small Price Drill Rig KY100 With Big VauleUS$ 1,000 - 2,000MOQ: 1 Set
-
2015 Hard Stone Quarry Rig With Low PriceNegotiableMOQ: 1 Set
-
China Top Quality New Model Hydraulic Drilling Rig for Quarry PlantNegotiableMOQ: 1 Set

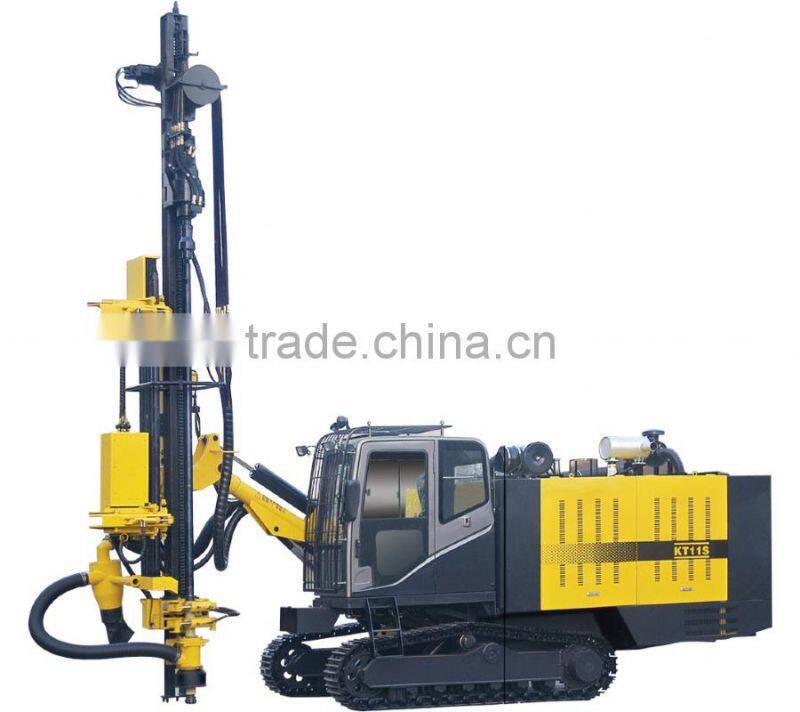

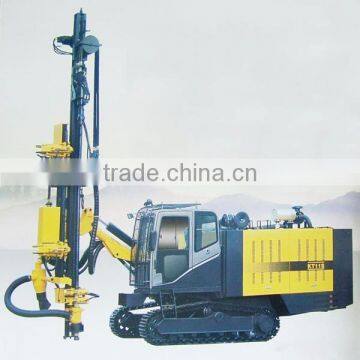

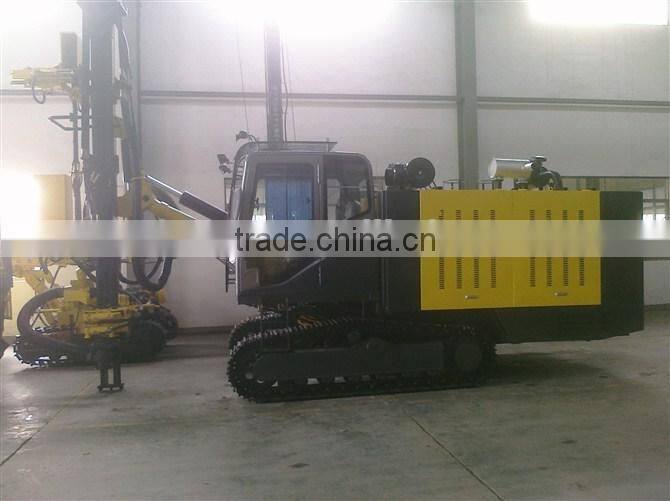

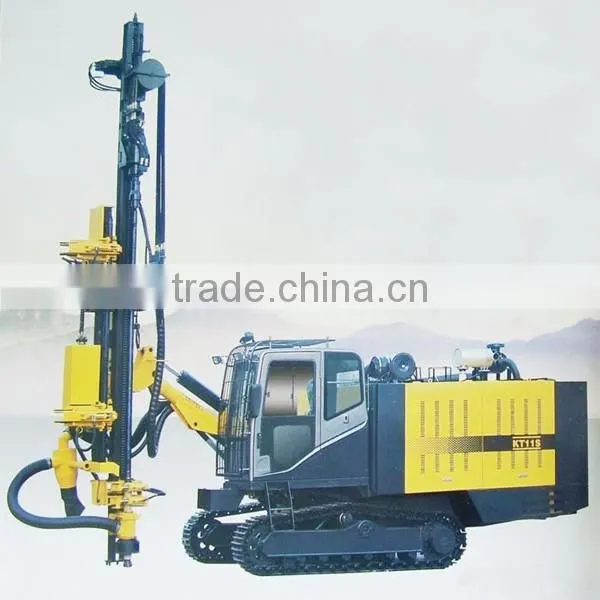

KT11S is a type of high wind pressure open-air DTH drill car,which uses one power to drive the Hydraulic system and the high wind pressure screw compressed system at the same time,with compact structure,high efficiency,automaticly meeting and discharging bar and the cabin air-conditioning and heating, dry dust collection and many other function modules.
Drill has the characteristics of good entirety, environmental protection and energy saving,high automation,favourable effect of rock drilling,easy and flexibale operation and safe walking which is widely used in open-pit mine, the quarry, highway, railway, water conservancy, electric power, building and engineering project, deep hole drilling operations and ect.
Feature
Reliable Pump Set
Safe & stable traveling system
Automatically Rod load & unload system
Advanced Dust-collecting system
Powerful Push& Rotating system
Anti-jamming system
Centralized control operation
- drill wagon design has the advanced hydraulic system and a complete function pneumatic system, all movements are centralized control, convenient operated.

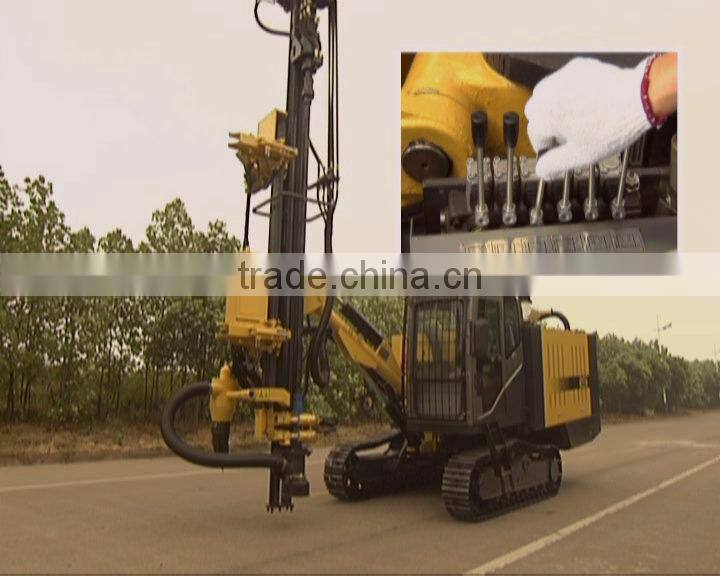

- operating hydraulic maneuvering valve, which can realize the lift, swinging arm drill and drill frame of pitch, angular, translation (back) and crawler adjustment function, guarantee the equality of intersectorial drill hole drilling and drill wagon stability.
operating pneumatic maneuverings valve, which can realize oil pump is open and drill car propulsion (increased), slewing, impact and dust collector of dust collection, counter blowing function to guarantee a efficient rock drill wagon.
Specification of Our KT11S Drilling Rig
Crawler drill rig KT11S | |
Model |
KT11S |
Rock rigidity |
F=6~20 |
Dia. of hole |
Φ105~125mm |
Drilling depth |
18m |
Travelling speed |
0~2.2km/h |
Climb ability |
20° |
Ground clearance |
430 |
Total power |
239kw |
Diesel engine |
Cummin6LTAA8.9-C325 |
Compressor FAD |
18m3/min |
Compressor discharge pressure |
17bar |
Dimension(mm) |
8890*2580*3655mm |
Weight(kg) |
14600kg |
Rotation speed |
0~63rpm |
