Home > Products > Blasting Rock Drill Rig > 2011-2013 China Hot Selling Ore Stone Drilling Machine KY125
2011-2013 China Hot Selling Ore Stone Drilling Machine KY125
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao Shanghai or other China main port
- T/T Credit Card
You May Like
-
2011-2013 China Hot Selling Track Drill Machine KY125
-
2013 High Pressure Gemstone Drilling Machine KY140A
-
Always Hot Sale Rock Drill Wagon for Borehole, Crawler Rig for Blasthole
-
Unique Crawler Rock Driller KY120 In Stock!!!
-
China High Quality Crawler Rock Drilling Machine for Mining Explosion
-
High Efficiency Powerful Diesel Granite Drilling Rig KY140A for Borehole
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Model Number | KY125 | |
| Usage | Other, drilling borehole for quarry, mining and construction | Dimension(L*W*H) | 4400x2200x2050mm | |
| Weight | 3.6t | Certification | ISO | |
| Warranty | 15 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Ore Stone Drilling Machinepowerful & reliable engine
adjustable boom
reliable hydraulic system & pump sets
long life
It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

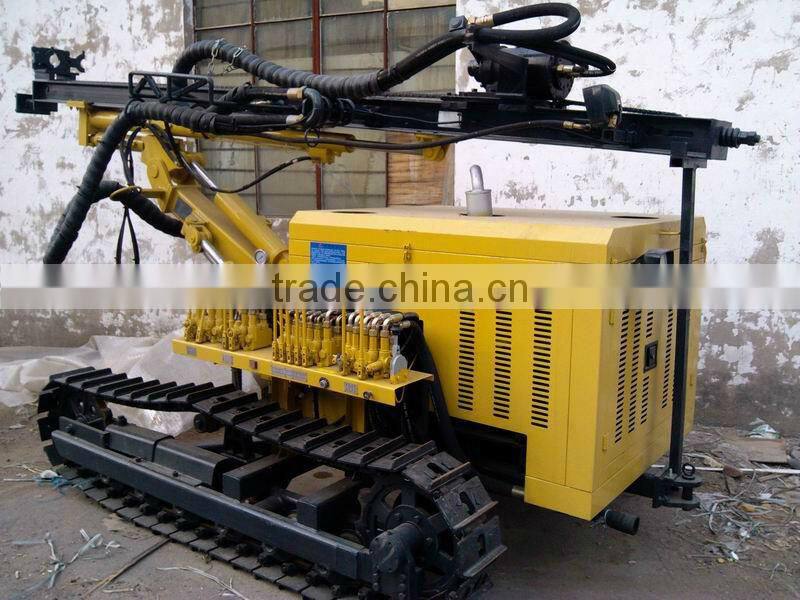

Specifications of Crawler Drill KY125
Rock Rigidity: f=6-20
Dia. of hole: 80-115 mm
Optimum Drilling Depth: 25 m
Working Pressure: 7-17 bar
Air Consumption: ≥13m3/min.
Rotation Speed: 0-67 rpm
Torque: 1400 N•m
Lift power: 17 KN
Dimensions: 4400x2200x2050mm
Weight: 3660 kg
Drive System: YC 2108 Engine
Recommended Compressor: LGCY15/13

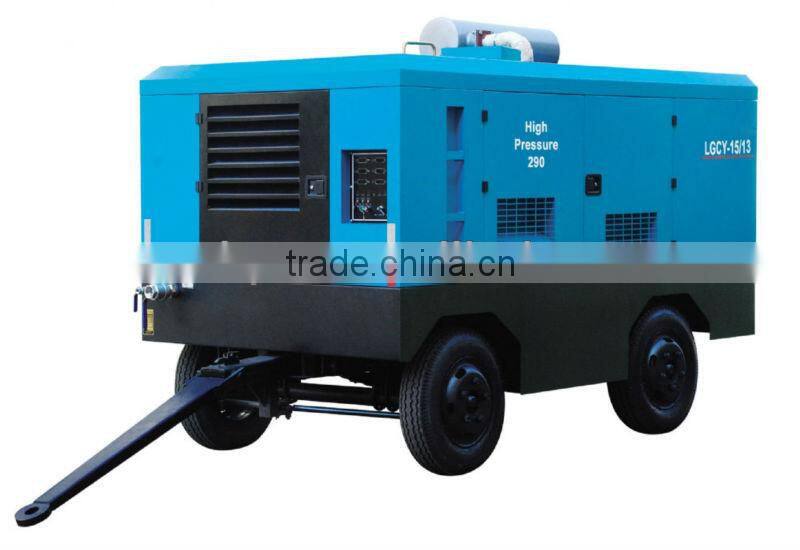

Specification of Matched Mobile Screw Air Compressor LGCY-15/13
Capacity: 15m3/min.
Working pressure: 1.3 Mpa
Diesel engine: WD415.23, 166kw
Weight: 3350 kg
Dimension: 3350x1650x2500mm
