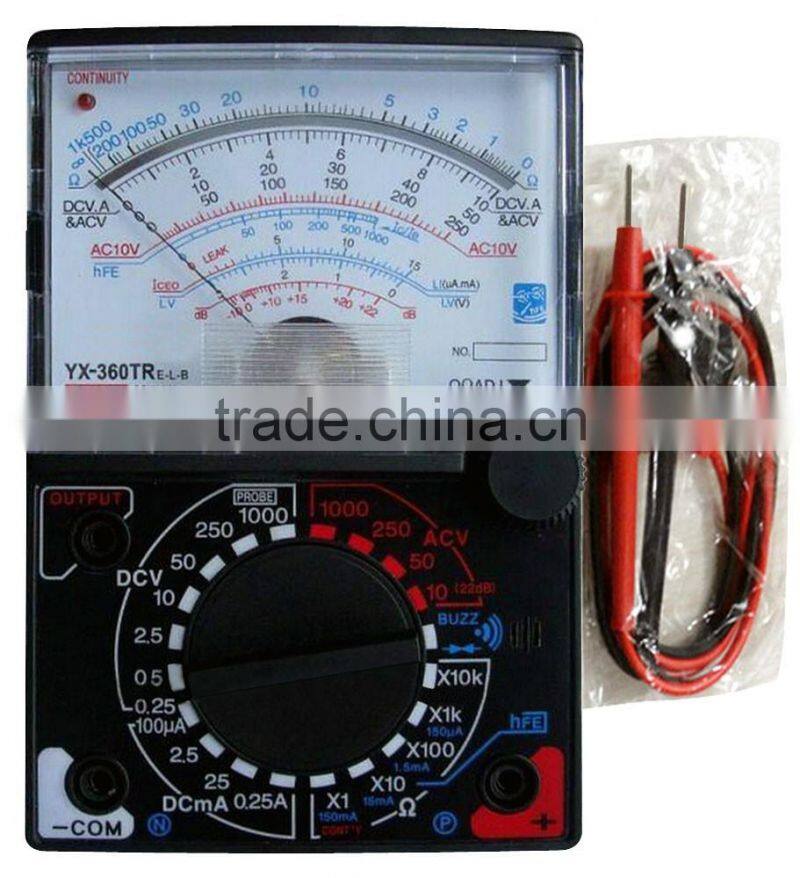

YX-360TRE-L-B Multimeter With LED And Buzzer/Analog Multimeter

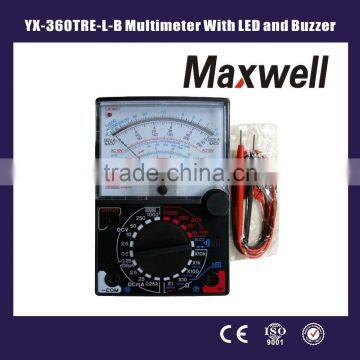

YX-360TRE-L-B Multimeter With LED and Buzzer

Item No: YX-360TRE-L-B

Features:

1. Can measure the voltage, current, resistance, transistors, diodes, can check the battery is good or bad hand, whether open-circuit board short circuit;
2. Using internal magnetic measurement mechanism newest design, with high sensitivity, light weight, compact structure, good anti-outer magnetic characteristics;
3. The appearance of a streamlined shape, smooth lines, delicate appearance, feel comfortable;
4. dial broad vision, and there is no mirror, can reduce parallax, clear and accurate readings;
5. Measure pen and elastic differential head with a plastic protective cover, good contact, safe and reliable.

Quick Details:

Specifications:

Measure AC&DC voltage, DC current, resistance, AF level, transistor parameter, load current, load voltage, capacitance, inductance
Excellent DC resolution factor of 2mV and expanded resist-ance measurement from 0.2Ω to 20MΩ
Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components
Continuity checking with an LED indicator & Buzzer
A large and bright meter with a scale length of 80mm and ifs sensitivity of 44uA at full scale
diode protection
Measures hFE to 1000 using optional TR connector
DCV: 100m/500m/2.5/10/50/250V/1000V ± 4%f. S.
ACV: 10/50/250V/1000V ± 5%f. S.
DCA: 100u/2.5m/25m/250mA ±4%f. S.
OHM: 2K/20K/200K/2M/20MΩ ± 4% of arc.
DB: -10~+62dB
L1: 150u/1.5m/15m/150mA
HFE: 0~1000(with TR connector)

Power supply: R6 (1.5V)*2, 622F 9V*1
Size: 148*100*35mm

 Established in 2000, Hangzhou Maxwell Tools Co., Ltd. which is located the beautiful West Lake in Hangzhou City, We specializes in designing and manufacturing excellent quality of hand tools, pneumatic tools and power tools.

We have a strong R&D design ability to ensure that you are getting the stable performance products produced with the most advanced and cost effective technologies. Our QC department promises that every material has passed our strict inspection before assembling or producing. And each product will have strict inspected before delivery.

Our products have been exported to many countries and regions throughout the world in Europe, North America, South America, Australia, Southeast Asia, South Africa, etc. We have won a good reputation among our customers by providing high quality, safe and reliable Tools as well as fast and efficient service.

As we have exhausted ourselves to control the best quality. All products we supplied and installed are warranted against defects in merchantable quality and workmanship.

Our Target is to provide you with the best quality products at the most competitive prices. We have a wealth of knowledge, experience in the field of Tools. We can provide excellent advice and support to insure you get the right products. We are looking forward to establishing favorable and long-term cooperative relationships with you.
We welcome your inquiry! We warmly welcome to visit Hangzhou Maxwell Tools Co., Ltd.
