Specifications
Superior accuracyVersatile design
low friction ball bearings, fixed cam-type timing
Rugged construction
Long time operation

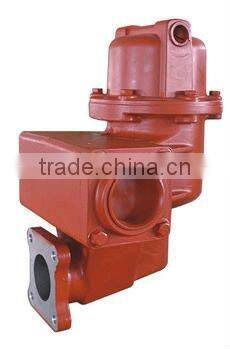

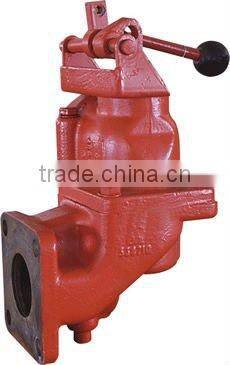

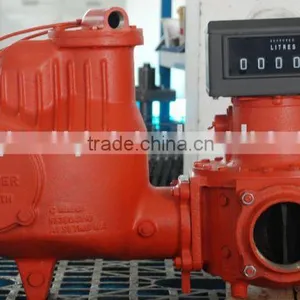

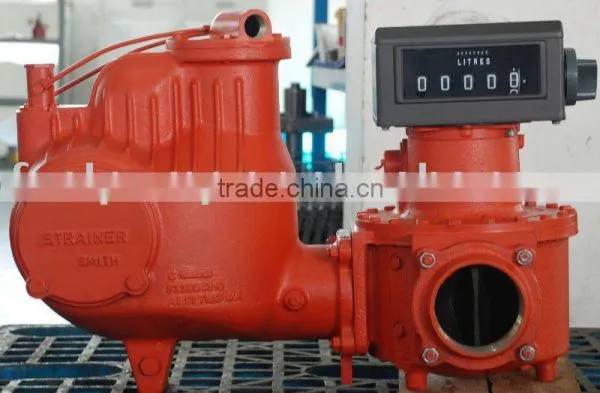

The PD rotary vane meter are single case, angle-type,rotary vane, positive displacement meter.The photo shows the 4" meter equipped with mechanical counter, air eliminator, strainer.
Its superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Its Compact, versatile design can be readily fit into nearly all installations.
Its Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
Its Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
Application includes: blending, batching,dispensing,inventory control, and custody transfer of oils, solvents, chemicals,paints, fats and fertilizers.
Technical Specification:
Model | FMC-50 | FMC-80 | FMC-100 |
Size | 50mm/2 | 80mm/3 | 100mm/4 |
Flow Rate Range(L/min) | 38-380 | 75-750 | 150-1500 |
Max. Working Pressure | 150PSI | ||
Accuracy | ±0.2% | ||
Repeatability | 0.07% | ||
2 inch Air Eliminator & Strainer
4 inch Air Eliminator & Strainer
2 inch Preset Valve
