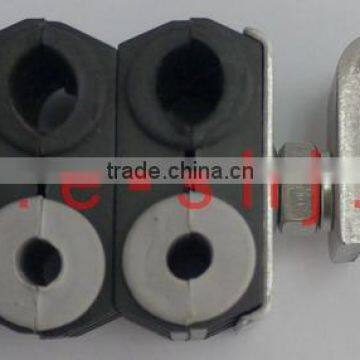

Optical fiber and power cable clamp, Fiber sheath type cable clamp

Required project

Required details

Note/Explain

Nominal size of Adapter cable

φ7mm±0.2mm   (Fiber)

One clamp needs to fix three power cable and three fiber cable. Fixing fiber cable in one side of clamp.  When adding rubber tube in another side of clamp, it has to fix 3.3mm2 or 4mm2 power clamp. It can be used for fixing 6mm2 or 8.2mm2 power cable directly when take out rubber tube.

φ10mm±0.2mm  (3.3mm2 power cable)

φ12mm±0.3mm  (4mm2 power cable)

φ14mm±0.4mm  (6mm2 power cable)

φ14mm±0.4mm  (8.2mm2 power cable)

Fiber cables Ø4.5 - 6.5 mm
Power cables Ø9.0 -13.0 mm
