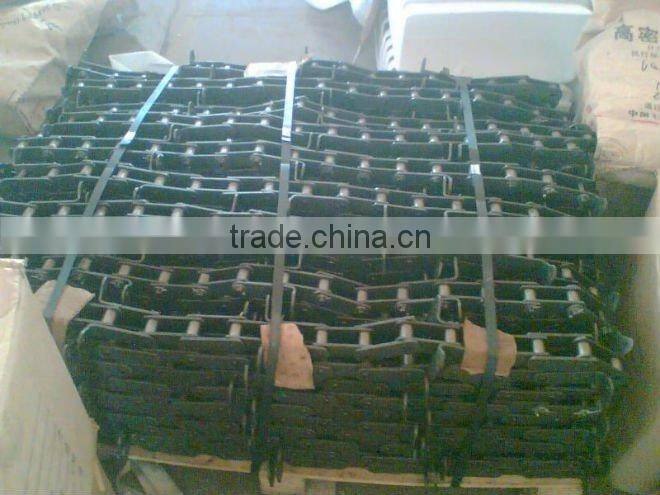

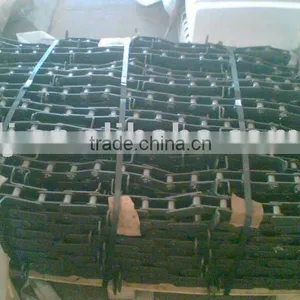

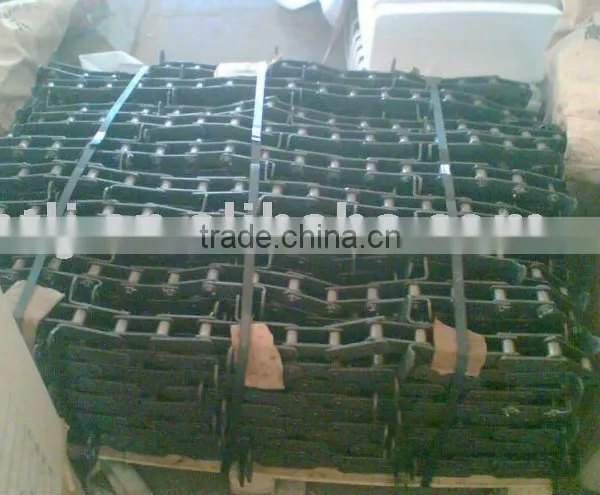

Drag Conveyor Chain

Name: Drag Conveyor Chain
Brand: HENGTONG
SKU: 143589412
Availability: InStock

US$ 0.1 - 2 MOQ: 50 Meters

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

HENGTONG

Zhenjiang New Hengtong Conveying Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name HENGTONG

Specifications

Material : Medium carbon alloy steel

Drag Conveyor Chain

1.Type: Bush Roller Chains.
2.Material : Medium carbon alloy steel

LTR for Round plastic drag flight

LTF for EN Masse plastic type plastic drag flight

LT for Metal drag flight conveyor
Specification Chart

Model	Pitch	Wide between inner plates	Roller diameter	Bearing pin diameter	Width of chain board	Thickness of chain board	Size of attached board					Maximum elongation loading (KN)
Model	P	b1	d1	d2	h	S	L	L1	L2	d3	E	Maximum elongation loading (KN)
LTR60	60	25.3	22.23	11.1	30	5	130	102		32	9	90
LTR665	66.5	26.5	22	12	30	5-6	130	102		32	9	130
LTR68(5)	68	25.22	22.23	11.1	29	5	122	102		32	9	90
LTR68(4)	68	26	22	9.5	23	4	113	79			7	55
LTR100	100	38.5	36	16	40	6	130	102		32	9	220
LTF665	66.5	26.5	22	12	30	5-6	160-270	102	228		9	130
LTF76.2	76.2	30	30	11.1	40	6	230	95	195		9	110
LTF100	100	38.5	36	16	40	6	225-305	104	194		9	220
LT66.8	66.68	25.22	22.23	11.1	29	5-6	167.5	143.5			7	90
LT100	100	29.6	22.3	11.1	29	5	185.6	155.6			9	90
LT125	125	32.5	28.6	14.3	42	6	235.5	195.5			9	170
LT125A	125	32	25	17	60	6	260-305	115	235-268		9	220
LT160	160	27	32	14.3	45	6	290	250
