Help CenterCarbon Steel Drag Conveyor Chain
Related Products

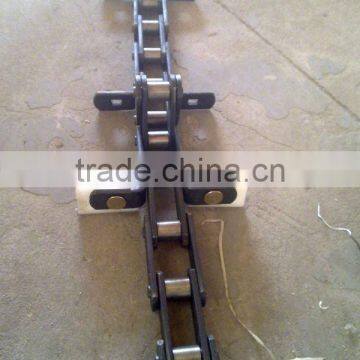

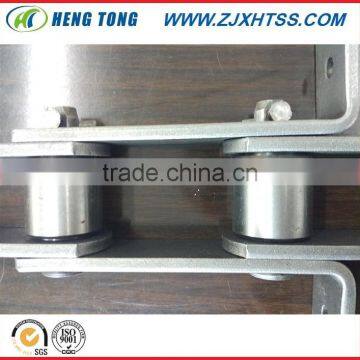

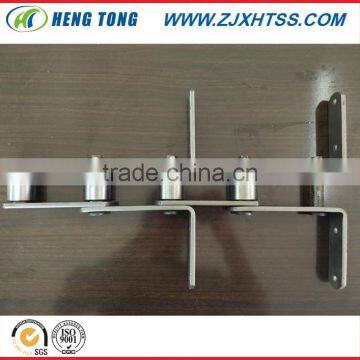

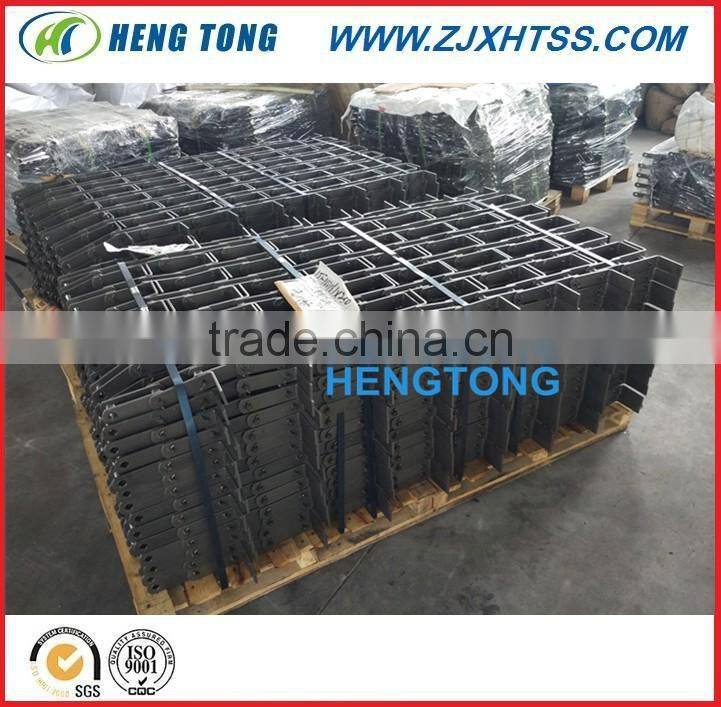

Drag Conveyor Chain
Material: Carbon Steel, Stainless steel
Type: Bush Roller Chain.
Suitable: LTR/GLR—For Round plastic drag flight, to install U type scrapper (conveyor)
LTF/GLF—For EN type plastic type plastic drag flight, to install flat scrapper (cveonyor).
LT for Metal drag flight conveyor.
| Model | Pitch | Width between inner plates | Roller Dia. |
Bush Dia. |
Pin Dia. |
chain Plate Width |
Thick of Chain |
Size of Attached Board | Maximum Elongation Loading | ||||
|
(mm) P |
(mm) b1 |
(mm) d1 |
(mm) |
(mm) d2 |
(mm) H |
(mm) S |
(mm) | (KN) | |||||
| L | L1 | L2 | E | d3 | |||||||||
| LTR68(4) | 68 | 26 | 22.23 | 9.5 | 23 | 4 | 112.2 | 78.9 | 7 | 55 | |||
| LTR68(5) | 68 | 26 | 22.23 | 11.1 | 29 | 5 | 122 | 102 | 32 | 9 | 90 | ||
| LTR60 | 60 | 25.3 | 22.23 | 11.1 | 30 | 6 | 130 | 102 | 32 | 9 | 90 | ||
| LTR66.5 | 66.5 | 26.5 | 22.23 | 12.7 | 30 | 6 | 130 | 102 | 32 | 9 | 130 | ||
| LTR66.675 | 66.8 | 26.5 | 22.23 | 12.7 | 30 | 6 | 130 | 102 | 32 | 9 | 130 | ||
| LTR100 | 100 | 38 | 36 | 16 | 40 | 6 | 130 | 102 | 32 | 9 | 220 | ||
| LTF66.5 | 66.5 | 26.5 | 22.23 | 12.7 | 30 | 6 | 160-270 | 102 | 228 | 9 | 130 | ||
| LTF66.675 | 66.68 | 26.5 | 22.23 | 12.7 | 30 | 6 | 182-295 | 90-95 | 150-195 | 9 | 90 | ||
| LTF100 | 100 | 38 | 36 | 22 | 16 | 40 | 6~8 | 170-294 | 104-115 | 194-245 | 9 | 220 | |
| LTF100B | 100 | 28 | 22.23 | 14.27 | 30 | 5 | 225 | 95 | 195 | 9 | 90 | ||
| LTF125 | 125 | 50 | 32 | 19.9 | 50 | 6~8 | 260-305 | 115 | 235-268 | 9 | 220 | ||
| LTF125B | 125 | 32.5 | 28.58 | 20 | 14.27 | 40 | 6~8 | 235 | 95 | 195 | 9 | 170 | |
| LTF160 | 160 | 27 | 32 | 20 | 14.27 | 45 | 6~8 | 290 | 193 | 9 | 193 | ||
Remark: Special size chains can be made as customer's requested.
Zhenjiang New Hengtong Conveying Equipment Co., Ltd. specializes in researching, exploiting and manufacturing granular material handling components, grain processing machinery components and engineering plastics. We have passed ISO9001:2000 international quality system certification.
ISO certificate
1.How to choose the material ?
Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications
2. Why choose HENGTONG?
Hengtong company absorbs up-to-date managing conception and pattern, and adopts advanced Enterprise Resource Planning (K3/ERP), Client Relations Management (CRM) and Office Automation (OA) etc. to upgrade company's integrated ability in circulation of material, cash, information and business management that provides a favorable guarantee for meeting customer's needs and improving the satisfaction degree of customers. According to your demand, we will continue to provide quality products. More enthusiastic, considerate, and efficient service is our never-ending pursuit. We pursue Honest Management and cooperation with win-win Business Concepts to work together with you.
