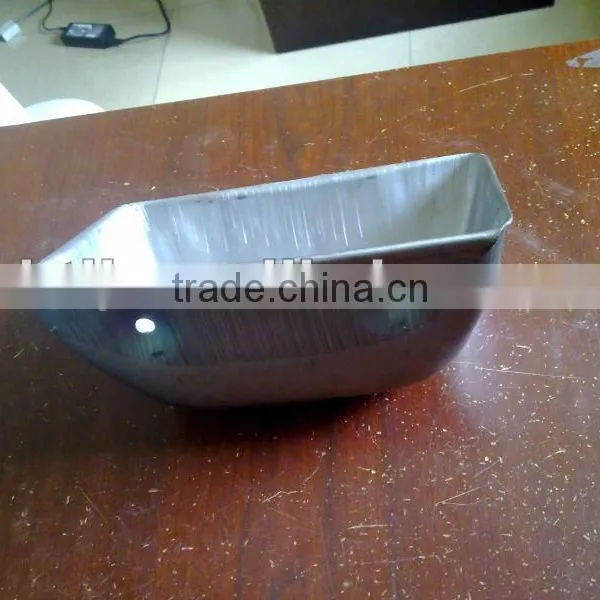

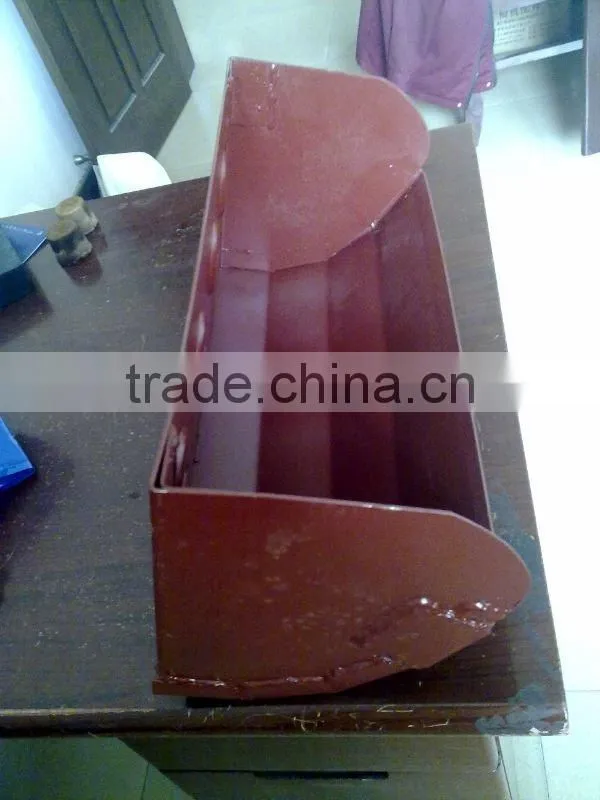

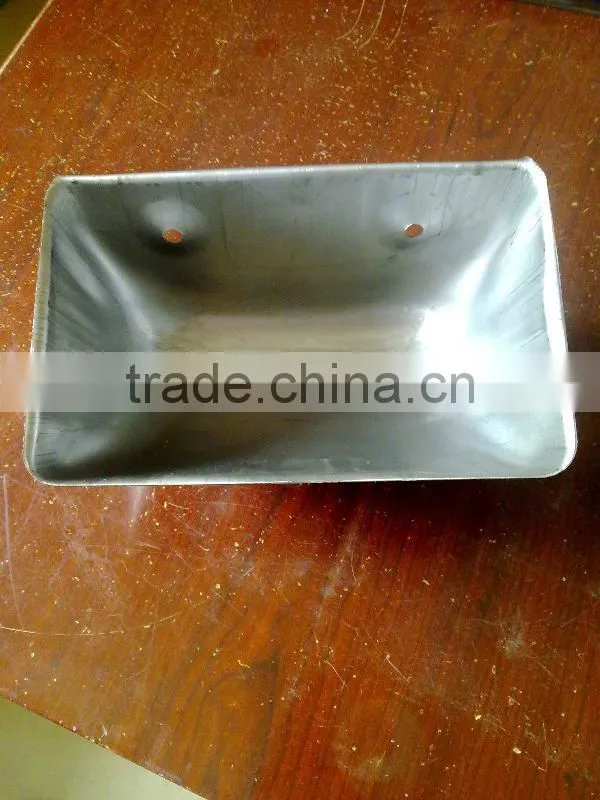

Deep Bottom Steel Elevator Bucket
US$ 1 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Other, carbon steel, stainless steel
Place of Origin:
Jiangsu, China
Brand Name:
Hengtong
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Elevator BucketUS$ 0.1 - 2MOQ: 100 Pieces -
Light Plastic Elevator Bucket Used in Food Processing IndustryUS$ 0.1 - 5MOQ: 100 Pieces
-
HDPE Inductive Bucket for Chain ElevatorUS$ 1 - 10MOQ: 100 Pieces
-
Supplier For Plastic Elevator BucketUS$ 0.1 - 5MOQ: 100 Pieces
-
Hot Plastic Elevator Bucket for GrainUS$ 0.1 - 5MOQ: 100 Pieces
Material
Other, carbon steel, stainless steel
Place of Origin
Jiangsu, China
Brand Name
Hengtong
Model Number
deep bottom
Specifications
1.Steel material Bucket.2.Suitable for high-speed centrifugal discharge.
Usage:
1. Suitable for high-speed centrifugal discharge.
2. Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.
3. Recommended elevator line speed ≤2.5m/s.
4. Recommended using (Z-Y)+10% as the available capacity for engineering design.
Specification Chart
| Deep Bottom | ||||||
| Model | A(mm) | B(mm) | C(mm) | E(mm) | Holes | Aperture |
| LBTS0807 | 90 | 78 | 55 | 50 | 2 | 7 |
| LBTS1009 | 108 | 90 | 62 | 50 | 2 | 7 |
| LBTS1109 | 112 | 90 | 68 | 60 | 2 | 7 |
| LBTS1311 | 139 | 112 | 75 | 60 | 2 | 7 |
| LBTS1511 | 155 | 113 | 90 | 80 | 2 | 7 |
| LBTS1612 | 169 | 130 | 124 | 100 | 2 | 9 |
| LBTS1613 | 166 | 135 | 95 | 90 | 2 | 9 |
| LBTS1614 | 166 | 147 | 112 | 100 | 2 | 9 |
| LBTS1813 | 188 | 130 | 95 | 90 | 2 | 9 |
| LBTS1814 | 183 | 142 | 110 | 90 | 2 | 9 |
| LBTS1814A | 183 | 146 | 110 | 90 | 2 | 9 |
| LBTS2014 | 203 | 142 | 115 | 90 | 2 | 9 |
| LBTS2015 | 205 | 150 | 112 | 100 | 2 | 9 |
| LBTS2313 | 238 | 130 | 95 | 120 | 2 | 9 |
| LBTS2314 | 233 | 146 | 110 | 120 | 2 | 9 |
| LBTS2314A | 233 | 146 | 110 | 120 | 2 | 9 |
| LBTS2316 | 236 | 162 | 125 | 120 | 2 | 9 |
| LBTS2316A | 238 | 166 | 130 | 120 | 2 | 9 |
| LBTS2614 | 265 | 140 | 110 | 150 | 2 | 9 |
| LBTS2616 | 260 | 162 | 125 | 150 | 2 | 9 |
| LBTS2813 | 288 | 130 | 95 | 100 | 3 | 9 |
| LBTS2814 | 283 | 142 | 110 | 100 | 3 | 9 |
| LBTS2814A | 283 | 142 | 110 | 100 | 3 | 9 |
| LBTS2816 | 283 | 168 | 125 | 100 | 3 | 9 |
| LBTS2818 | 290 | 182 | 140 | 80 | 3 | 11 |
| LBTS2823 | 285 | 230 | 168 | 100 | 3 | 9 |
| LBTS2916 | 290 | 168 | 125 | 100 | 3 | 9 |
| LBTS3016 | 308 | 165 | 135 | 100 | 3 | 9 |
| LBTS3018 | 308 | 182 | 140 | 100 | 3 | 9 |
| LBTS3021 | 310 | 218 | 163 | 100 | 3 | 11 |
| LBTS3316 | 340 | 165 | 135 | 110 | 3 | 11 |
| LBTS3518 | 358 | 180 | 145 | 90 | 4 | 9 |
| LBTS3318 | 340 | 182 | 140 | 110 | 3 | 11 |
| LBTS3718 | 385 | 195 | 140 | 89 | 4 | 11 |
| LBTS3321 | 340 | 215 | 163 | 120 | 3 | 11 |
| LBTS3521 | 362 | 215 | 162 | 120 | 3 | 11 |
| LBTS3721 | 384 | 215 | 160 | 89 | 4 | 11 |
| LBTS4521 | 464 | 215 | 163 | 89 | 5 | 11 |
| LBTS3518 | 358 | 180 | 145 | 90 | 4 | 9 |
| LBTS3621 | 365 | 220 | 160 | 90 | 4 | 9 |
| LBTS4118 | 415 | 190 | 145 | 95 | 4 | 11 |
| LBTS4121 | 415 | 233 | 160 | 95 | 4 | 11 |
| LBTS4621 | 460 | 220 | 160 | 85 | 5 | 11 |
| LBTS5121 | 518 | 220 | 160 | 90 | 5 | 11 |
| LBTS5021 | 515 | 215 | 163 | 100 | 5 | 11 |
