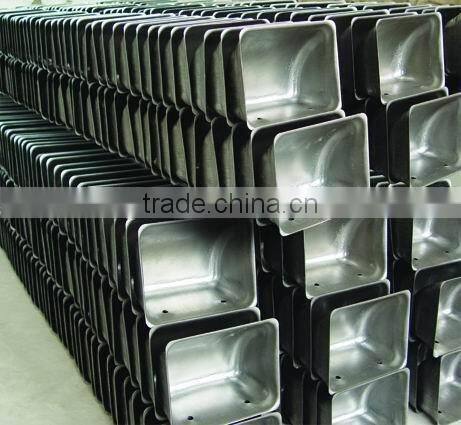

Steel Elevator Bucket
USD $1 - $10
/ Piece
100 Pieces(Min.Order)
- 3 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Hengtong | Model Number: | Deep Bottom |
Product Description
Specifications
1.Suitable for high-speed centrifugal discharge.2.Strength wear resistant.
Usage:
1. Suiable for high-speed centrifugal discharge.
2. Recommended minimum bucket spacing: width of the bucket projection "B" +25mm, which can be appropriately reduced according to elevator capacity requirement.
3. Recommended elevator line speed ≤ 2.5m/s.
Deep Bottom | ||||||
Model | A(mm) | B(mm) | C(mm) | E(mm) | Holes | Aperture |
LBTS0807 | 90 | 78 | 55 | 50 | 2 | 7 |
LBTS1009 | 108 | 90 | 62 | 50 | 2 | 7 |
LBTS1109 | 112 | 90 | 68 | 60 | 2 | 7 |
LBTS1311 | 139 | 112 | 75 | 60 | 2 | 7 |
LBTS1511 | 155 | 113 | 90 | 80 | 2 | 7 |
LBTS1612 | 169 | 130 | 124 | 100 | 2 | 9 |
LBTS1613 | 166 | 135 | 95 | 90 | 2 | 9 |
LBTS1614 | 166 | 147 | 112 | 100 | 2 | 9 |
LBTS1813 | 188 | 130 | 95 | 90 | 2 | 9 |
LBTS1814 | 183 | 142 | 110 | 90 | 2 | 9 |
LBTS1814A | 183 | 146 | 110 | 90 | 2 | 9 |
LBTS2014 | 203 | 142 | 115 | 90 | 2 | 9 |
LBTS2015 | 205 | 150 | 112 | 100 | 2 | 9 |
LBTS2313 | 238 | 130 | 95 | 120 | 2 | 9 |
LBTS2314 | 233 | 146 | 110 | 120 | 2 | 9 |
LBTS2314A | 233 | 146 | 110 | 120 | 2 | 9 |
LBTS2316 | 236 | 162 | 125 | 120 | 2 | 9 |
LBTS2316A | 238 | 166 | 130 | 120 | 2 | 9 |
LBTS2614 | 265 | 140 | 110 | 150 | 2 | 9 |
LBTS2616 | 260 | 162 | 125 | 150 | 2 | 9 |
LBTS2813 | 288 | 130 | 95 | 100 | 3 | 9 |
LBTS2814 | 283 | 142 | 110 | 100 | 3 | 9 |
LBTS2814A | 283 | 142 | 110 | 100 | 3 | 9 |
LBTS2816 | 283 | 168 | 125 | 100 | 3 | 9 |
LBTS2818 | 290 | 182 | 140 | 80 | 3 | 11 |
LBTS2823 | 285 | 230 | 168 | 100 | 3 | 9 |
LBTS2916 | 290 | 168 | 125 | 100 | 3 | 9 |
LBTS3016 | 308 | 165 | 135 | 100 | 3 | 9 |
LBTS3018 | 308 | 182 | 140 | 100 | 3 | 9 |
LBTS3021 | 310 | 218 | 163 | 100 | 3 | 11 |
LBTS3316 | 340 | 165 | 135 | 110 | 3 | 11 |
LBTS3518 | 358 | 180 | 145 | 90 | 4 | 9 |
LBTS3318 | 340 | 182 | 140 | 110 | 3 | 11 |
LBTS3718 | 385 | 195 | 140 | 89 | 4 | 11 |
LBTS3321 | 340 | 215 | 163 | 120 | 3 | 11 |
LBTS3521 | 362 | 215 | 162 | 120 | 3 | 11 |
LBTS3721 | 384 | 215 | 160 | 89 | 4 | 11 |
LBTS4521 | 464 | 215 | 163 | 89 | 5 | 11 |
LBTS3518 | 358 | 180 | 145 | 90 | 4 | 9 |
LBTS3621 | 365 | 220 | 160 | 90 | 4 | 9 |
LBTS4118 | 415 | 190 | 145 | 95 | 4 | 11 |
LBTS4121 | 415 | 233 | 160 | 95 | 4 | 11 |
LBTS4621 | 460 | 220 | 160 | 85 | 5 | 11 |
LBTS5121 | 518 | 220 | 160 | 90 | 5 | 11 |
LBTS5021 | 515 | 215 | 163 | 100 | 5 | 11 |
