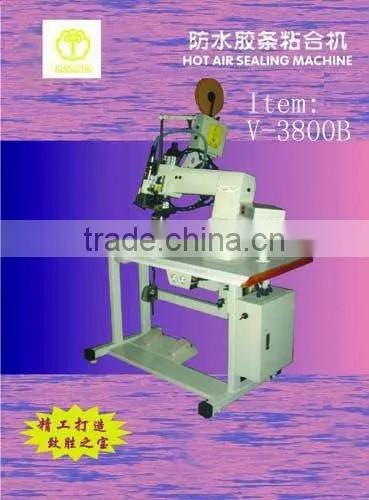

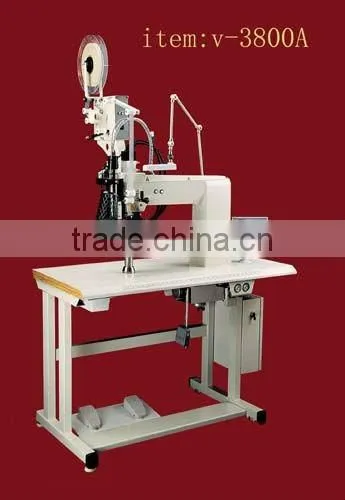

Rainwear Hot Air Seam Seal Machine

Specifications

Seam seal  machine

is used for waterproof fabric sewing like PVC,PU/polyeaster/nylon fabric ,it's our high reputation machine in our factory ,it's controlled by microcomputer ,the fuselage material is aluminium alloy with the characteristis small volumn,.light weight and simple operate way and widely used for waterproof function products,like PU,PE,PVC .it's the first choose product for some manufactory

 micro-computer control,easily operation,it can still work for 24hours and it's very convininent.It reduces the hard work to the worker

technical data:

MODEL:V-3800

POWER: single phase 220v+10%,50/60HZ

POWER CONSUMPTION: 3000W(max)    1000w(min)

ELECTRIC MOTOR: DC   24V  60W

COMPRESSED AIR : 4 BAR(min)

AIR CONSUMPTION: 60-120L/min

SEALING SPEED :adjustable  0-9.5 m/min (0-32ft/min)

NOZZLE TEMP: adjustable 0-800c   LED to display

NOZZLE AIR PRESS: adjustable with air pressure display 0-2 bar

NOZZLE UNIT :26mm(standard ),other optional

ROLLER PRESS:adjustable with air pressure display 0-10bar

UPPER ROLLER:width 25.4mm(standard),silica gel

DOWN ROLLER:width 30.5mm,stainless steel

DISPLAY UNIT:LED

DIMENSIONS:620mm(W)*1200mm(L)*1900mm(H)

WEIGHT:120KGS
