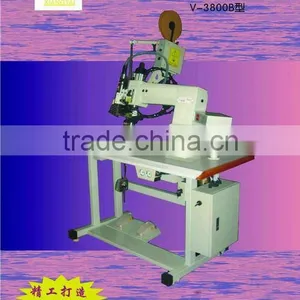

Hot Air Seam Sealing Machine

Specifications

Hot air seam sealing machine

APPLICATION:

Economical production of weatherproof products such as rain-wear,ski-wear,wet/dry suits,tents,car covers,etc.Seamsesling applicable to a large variety of fabrics such as PU,PE,PVC,Neoprene,AC,etc

FEATURES

IC monitoring and interlocking on nozzie pressure,temperature and motor speed status protect the machine

against mistake and ensure the quality of the final product.

Touch screen multi-function display unit provide clear indications on fabric speed,operaling status and alarming.

Fully automatic temperature controller with both set point and process value indications.

Advance design:sealing temperature,speed and status display controlled by individual micro controllers.

SPECIFICATIONS)

Model: V-3800B

Power supply:  AC220V   50/60HZ

Power consumption:3000W

Compressed Air:0.4-0.6Mpa

Air Consumption:60-120L/min

Seeling Speed:0-32ft/min

Nozzie Temp:Room temperature-800

Nozzie Air pressure:0.1-0.2Mpa

Nozzie Unit:22mm,other may bespeak

Roller Pressure:0.4-0.6Mpa

Upper Roller Width:25.4mm

Lower Roller Width:28mm

Overall Dimensions:1200mm(L)*600mm(W)*1600mm(H)

Overall Weight:130kg
